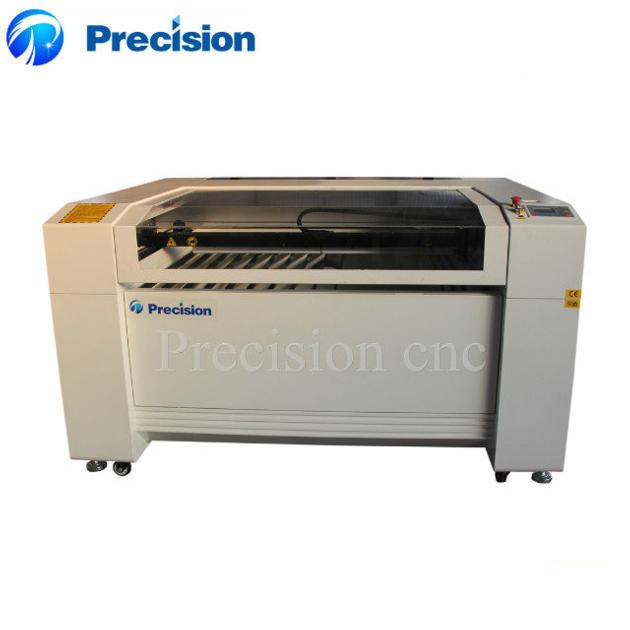

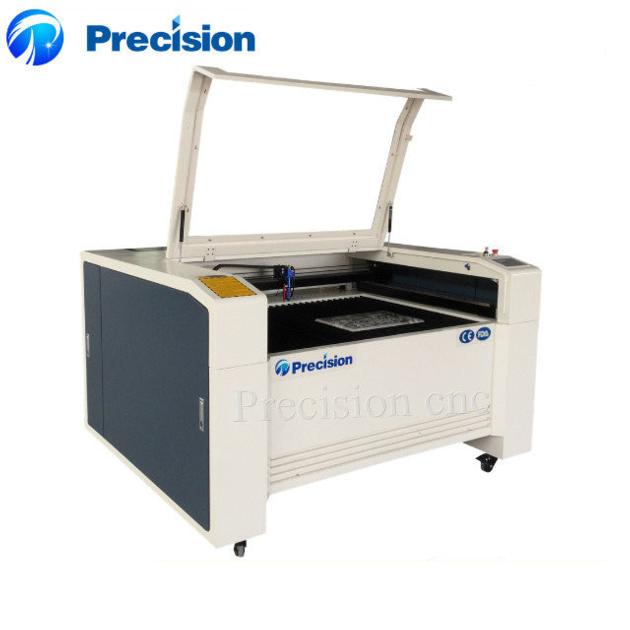

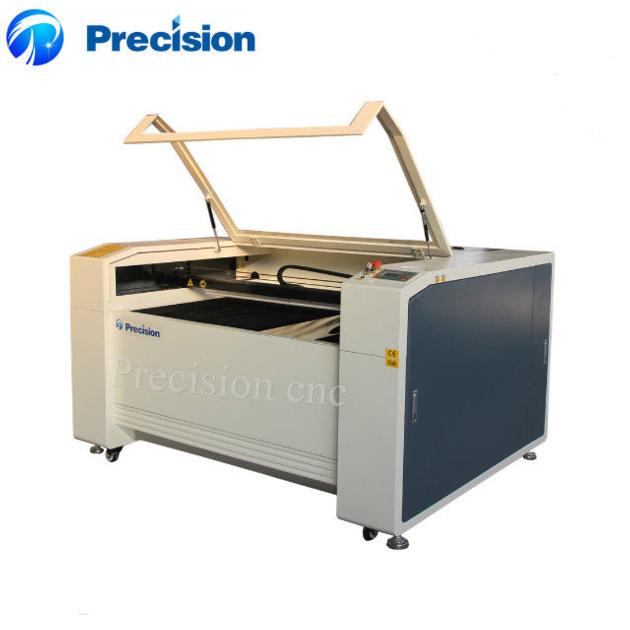

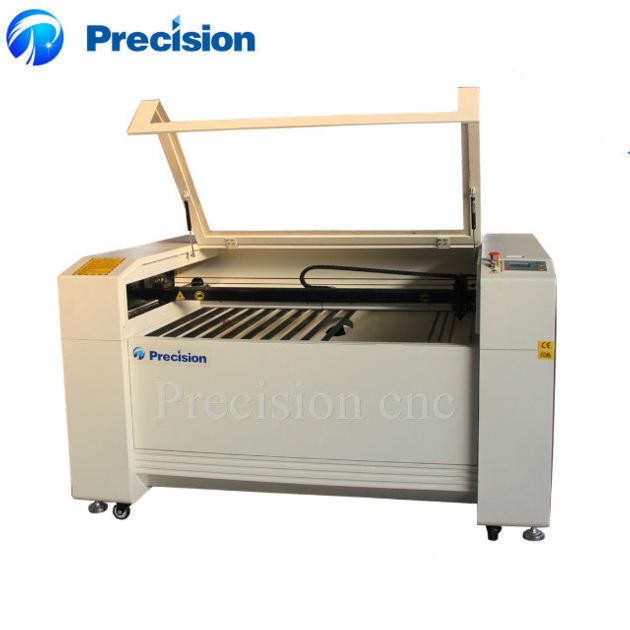

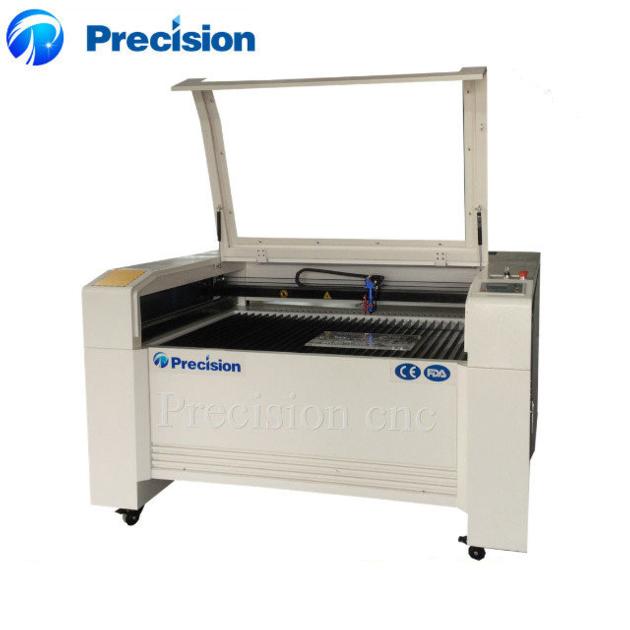

80w laser cutting machine for wood acrylic

1) Control Panel
User Friendly LCD control panel allows the user to quickly change selected program and modify machine
operational conditions. You can Start, Stop, Pause, Reset, Datum, Test Fire, Outline engrave project area,
Move the X or Y axis, LCD Viewing Display, Z-Axis up/down, Control Interior light, Emergency Stop,
Lockout the operations with the Key.
2) Reci laser tube
The standard laser tube is 80w. precision supplies 80-180 laser tube for your choice, you can choose
according to your work and the workpiece thickness.
3) Laser cutting head
Precision supply short and long laser head for your choice. short laser head usually for cutting, long laser head usually for engraving.
4) Front-back through
The laser machine frame is built with doors that allow materials to extend out the front and/or rear of the machine. The pass-thru is helpful when engraving or cutting material that cannot fit completely inside the machine. Examples: Engraving pictures onto a bathroom shower door. Rolls of fabric threaded into the rear door, engraved or cut, and then pulled out the front door. Engraving the front door to my house. Engraving very large mirrors or sheets of glass. The limits are endless.
5) ABBA square rail : sub-brand of SKF in Switzerland
The guide liner is Taiwan Hiwin square rail, which is durable, after long time use, it will still have high precision. The belt is Shanghai Fulong brand, it is durable and hard deformed
6)Blade table ( Alternative Honeycomb table )
Precision supplies blade and honeycomb table for your choice, you can choose according to your requirement.
7) Control box
The heart of the laser machine is the industry leading Ruida controller. The Ruida motion controller is connected to the computer by USB connection. The computer downloads the project to the laser motion controller and it does all the work, leaving the computer and operator free to work on the next project. The dedicated Ruida controller has RAM onboard to store large projects without re-downloading from your computer.
8)Blower / Fan / Vacuum
The vacuum blower creates an air flow to remove dust and fumes from the work area of the laser machine. It is important to remove the dust and fumes from the laser engraving areas because dust can settle onto the mirrors or lens. Dust on the mirrors or lens will create a focal point of the laser's heat and soon destroy the optics. The fumes need to be removed from the operator work area because they can be irritating and unhealthy. The blower can also be connected to a vaccum box to pull air through the work material.
