80MM Thermal Printers

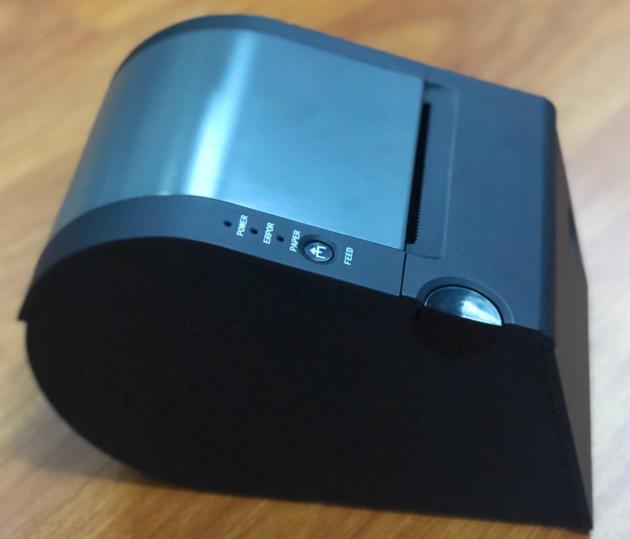

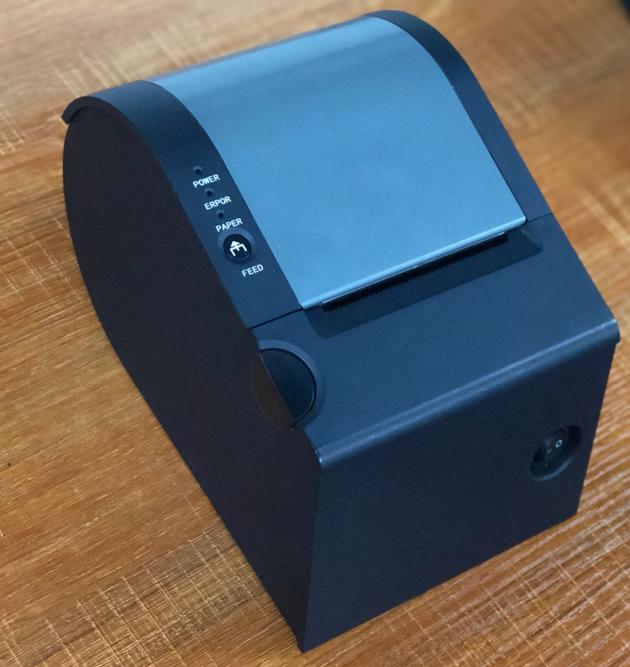

POSOUDA-P10/P1OIL POS thermal printer
Print method： Direct thermal line printing
Resolution：180x180PI
Print width：72mm (Max)
Print speed：200mm~230mm/s(Max)
Print Memory：RAM: 2M Flash. 2MB(standard), 4MB(optional)
Sensors：Paper end sensor, TPH position, TPH overheating protection, Print voltage
Driver：Windows drivers(Win2000/P/2003/VISTA/2008/Win/Win8 Linux CUPS, MAC
Interface：Optional: Serial, Parallel, USB, Ethernet Serial+USB+Ethernet
Cash drawer control：1-2 cash drawers
Barcodes:1D: upc-a, upc-ejan8 (EAN8)AN13(EAN13) CODE 39, CODE 93, CODE 128, ITF,CODABAR
2D: PDF417, OR, MAXICODE, GS1 Databar
Fonts:Font A 12x24, Font B 9 x17, kanji 24x24
Character set：95 Alphanumeric, 13 types of international characters, 128x56 Graphic(includinguser-defined page), Traditiona/Simple Chinese, Japanese, Korean(optional)
Character modification：Rotate(0, 90, 180, 270-) enlarge(1-6x)
Graphics printing：Bitmap image downloading and direct bitmap image print, RAM bitmap download: buffer，size 128KB, FLASH bitmap download: buffer size 512KB
Paper type：Continuous paper, Marked paper
Paper thickness:0.06-0.08mm
Paper Paper width:82.5¯0.5mm,80¯0.5mm,76¯0.5mm,69.5¯0.5mm.57¯0.5mm
Paper roll OD:83mm(Max)
Paper cut:Full cut, Partial cut
Input:100-240VAC,50-60Hz
Power supply Output:24¯5％V1．5A
Reliability
Print head lifetime:150km
Cutter lifetime:1, 500,000 cuts(full cut, paper thickness: 0.065mm)
MCBF：60.000.000 lines
MTBF：360.000 hours
Operation conditions：5~45℃，20％~90％（40℃）
Environment Storage conditions：－40~60℃．20％~93％40C
Dimensions:145(w)mmx195(L)mmx141(H)mm
Packing specification: 242mm*165mm*210mm
Weight:1.45Kg
Standards:CCC,CE, CB, FCC, UL
