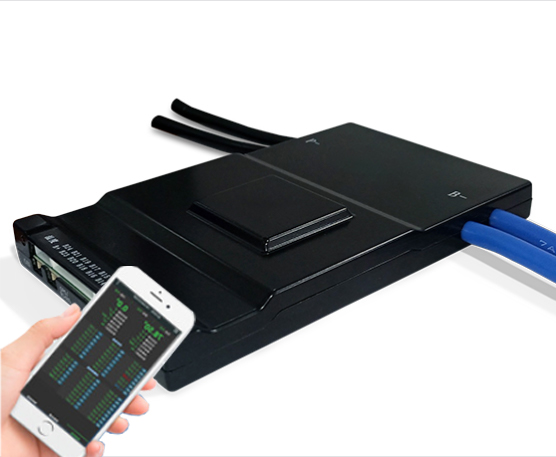

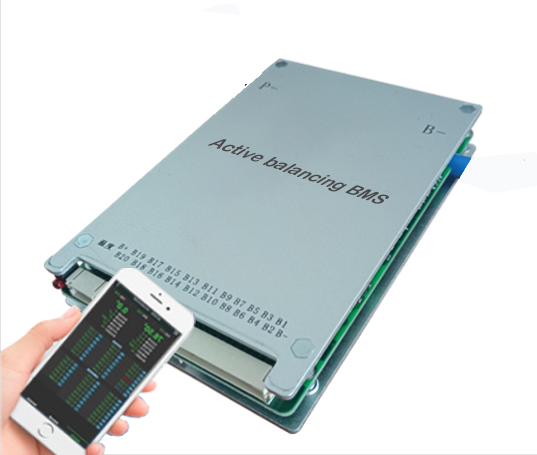

8-24S 40-200Amp active balancing bms for EV
| Price: | US$ 71-230 / Piece |
|---|---|
| Minimum Order: | 5 |
| Payment Terms: | TT |
| Port of Export: | China |
Product Details
| Model No.: | BD4A17S-4P | Brand Name: | JK |
|---|
| Certification: | IEC |
|---|---|
| Specification: | Based on the energy transfer active equalization technology with independent intellectual property rights, the protection board can achieve a maximum continuous current of 2A. The high current active equalization technology can ensure the battery consistency to the greatest extent, improve the battery range and delay the aging of the battery. |
Packaging & Delivery
| Packaging: | 190mm*1200mm*90mm |
|---|---|
| Delivery/Lead Time: | 15days |
| Production Capacity: | 8-17strings 400mA balancing 40Amp current |
Product Description
BMS model parameters Descrption
Size: 17mm*80mm*110mm
Suitable for the number of battery strings: for LFP is 7S to 17S, for NMC is 8S-17S
Continuous charging and discharging current: 40A
Maximum current (lasting for 120s): 80A
Balancing Current: 400mA
Balanced applicable battery capacity: 20 AH ~60AH
Applicable power: less than 5kw
Applicable controller current limiting: 80A
Applicable battery type: Two wheeled vehicle, tricycle, low-speed four-wheel vehicle, forklift truck, energy storage, marine battery, electricity exchange lease, AGV, non-standard customized battery
Balanced mode: Active balancing: the energy transfer between the highest voltage string and the lowest voltage string which can only be balanced between the two strings at the same time.
Balancing opening condition: If the voltage difference exceeds the trigger value, it will be automatically opened and balanced. The trigger value can be adjusted. The factory default value is > 10mV

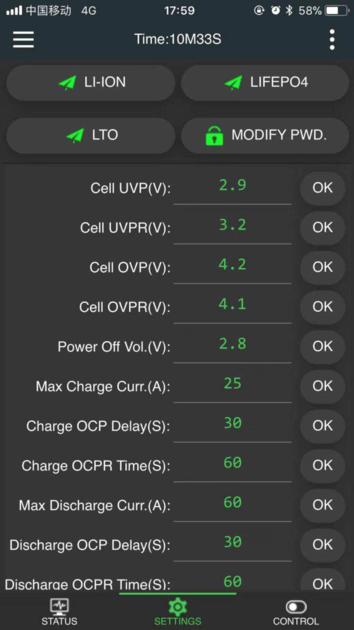

Overcharge protection voltage: can be set by App
Over discharge protection voltage: can be set by App
Protection Delay Time: Can be set by APP
Over current protection current: can be set by App
Single voltage range: 1~5V
Unit voltage accuracy: ¨5mV
Power supply: Battery pack power supply
Power supply range of BMS: 40V~100V
Communication function: Standard configuration: Bluetooth with app
GPS (optional): With App, remote battery information reading, remote switching power supply, track monitoring, electronic fence, alarm, system log...
Coulometer: Yes
Maximum power consumption: 1W
|
