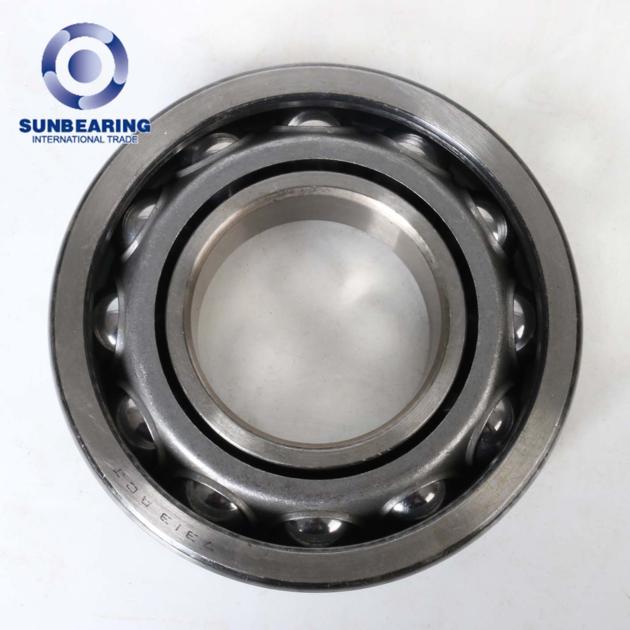

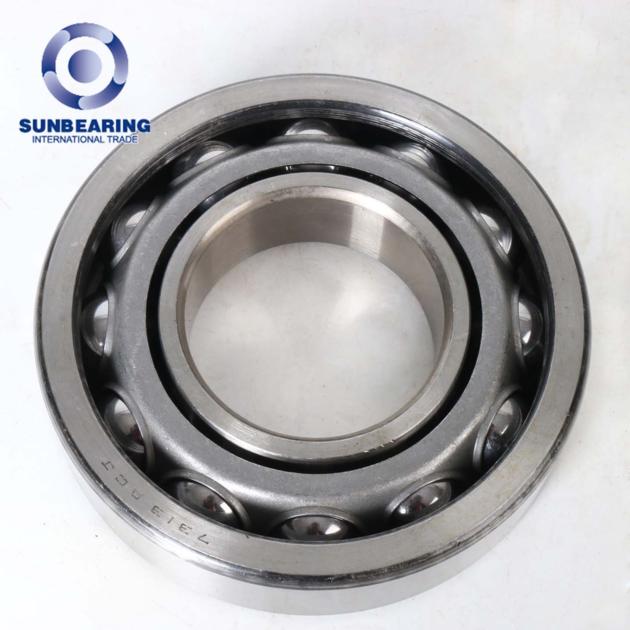

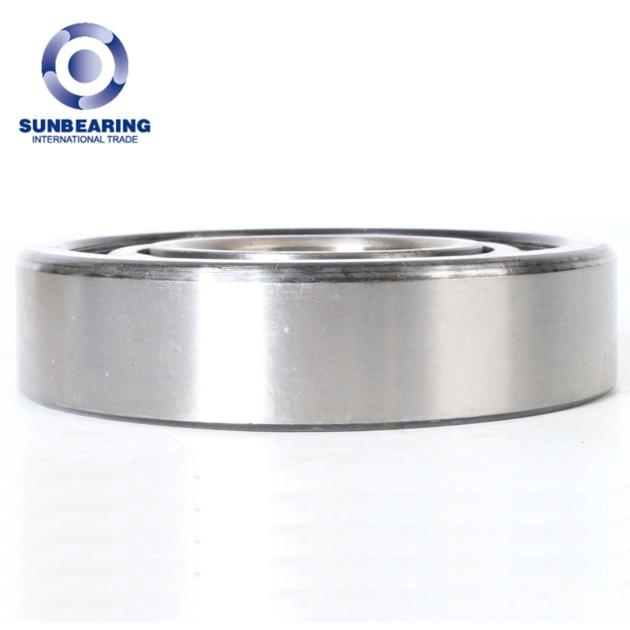

7211AC Angular Contact Ball Bearing Silver 55*100*21mm Chrome Steel SUNBEARING

Product Description



Angular Contact Ball Bearing 7211AC

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.607kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Rubber Seals

Certificate

ISO9001:2008

Advantage

(1) Prompt Delivery (2) OEM (3) Good Service Offered (4) Special Price(5) Free sample



Number of Row

Single

Dimensions

d-Bore Diameter

55mm

D-Outer Diameter

100mm

Precision Rating

P4 P2

Clearance



C2 C3 C4 C5 C0

H-Total Width

21mm



7211C Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads. The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass, synthetic resin of others subject to individual bearing features and application conditions.



Application



They are mainly used for steel industry, mining&construction, paper making machinery, wind turbines, semiconductors, machine tools, gearboxes, electric motors, pumps&compressors, injection molding machines.
