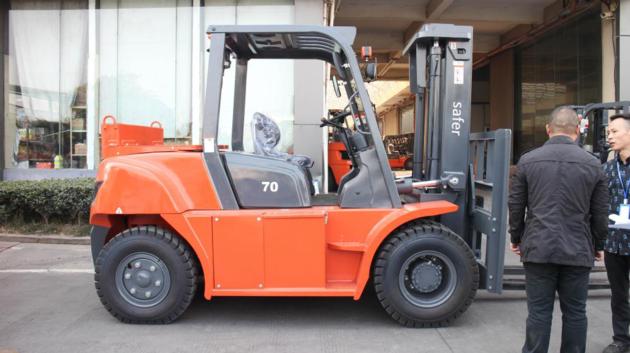

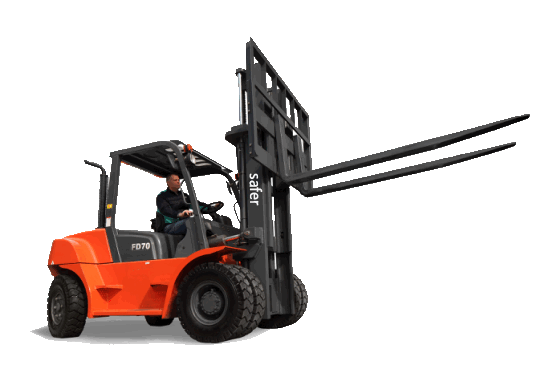

7 tons diesel forklift trucks with CE
| Price: | US$ 12000 |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | 30% TT as deposit, balanced before shippment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | FD70 | Brand Name: | Saferlifts |
|---|
| Certification: | CE SGS |
|---|---|
| Specification: |
Basic Info Model NO.: FD70 Type: Diesel Forklift Load Capacity: 5T - 10T Load center: 500mm Condition: New Engine: Imported/Chinese Engine Tire: Pneumatic/Solid Transport Package: IN THE NUDE Origin: Shanghai Cab Location: Option Power: Diesel Engine Fuel: Diesel Lift height: 3000mm-6000mm Mast: 3-6m Color: Orange/Green/Yellow/OEM Color Trademark: saferlifts Specification: CE/SGS HS Code: 84272090 Product Description Customer Question & Answer 7ton diesel forklift truck Capacity: 7000KG Engine: CY6102 Chinese engine Transmission: Automatic Tyre: Pneumatic Wide-view mast, solid overhead guard, Ergonomic adjustable steering wheel and seat. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: | 7000kg |
Product Description

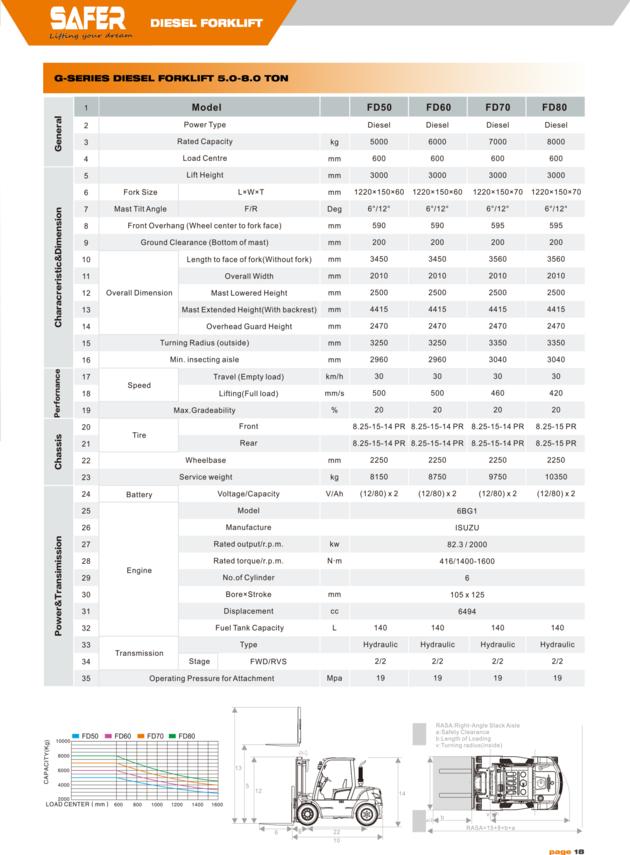

General 1 Model FD70 2 Power Type Diesel
3 Rated Capacity kg 5000
4 Load Centre mm 600
Characteristic&Dimension 5 Lift Height mm 5000
6 Fork Size L×W×T mm 1220×150×70
7 Mast Tilt Angle F/R Deg 6®/6®
8 Fork Overhang (Wheel center to fork face) mm 595
9 Ground Clearance(Bottom of mast) mm 200
10 Overall Dimension Length to face of fork(Without fork) mm 3560
11 Overall Width mm 2010
12 Mast Lowered Height mm 2870
13 Mast Extended Height(With backrest) mm 6400
14 Overhead Guard Height mm 2470
15 Turning Radius (outside) mm 3350
Performance 16 Speed Travel (Full load) km/h 30
17 Lifting (Full load) mm/s 460
18 Max.Gradeability % 20
Chassis 19 Tyre Front mm 8.25-15-14
20 Rear mm 8.25-15-14
21 Wheelbase mm 2250
22 Self weight kg 10120
Power&Transmission 23 Battery Voltage/Capacity V/Ah (12/80) x 2
24 Engine Model S6S-T
25 Manufacture MITSUSHIBI
26 Rated output/r.p.m. kw 63.9/2300
27 Rated torque/r.p.m. N·m 285/1700
28 No.of Cylinder 6
29 Bore×Stroke mm 94×120
30 Displacement cc 4996
31 Fuel Tank Capacity L 140
32 Transmission Type Hydraulic
33 Stage FWD/RVS 2/2
|
