695 Miniature Deep Groove Ball Bearing 5*13*4mm Chrome Steel GCR15 SUNBEARING

Product Description

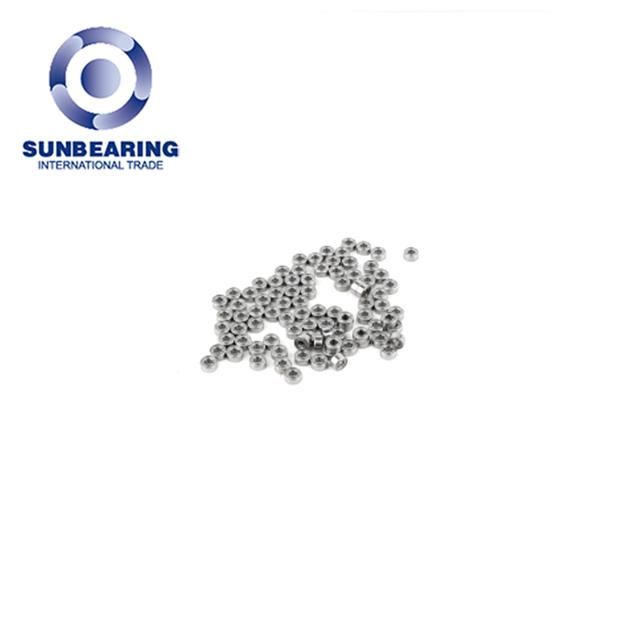

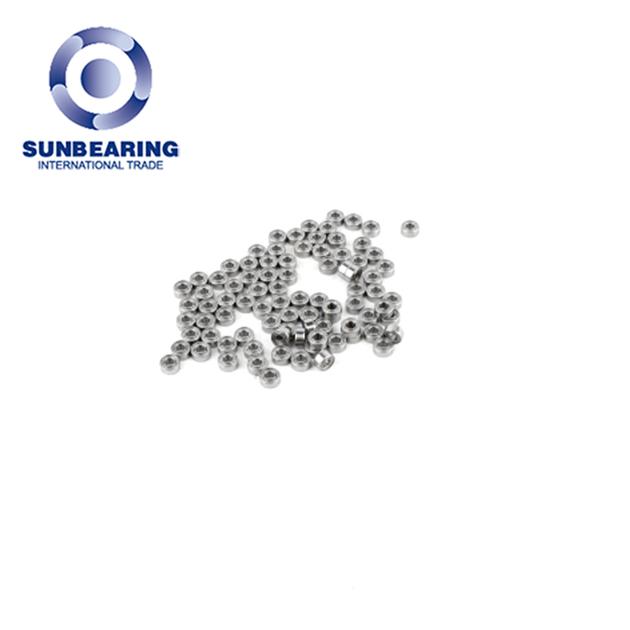

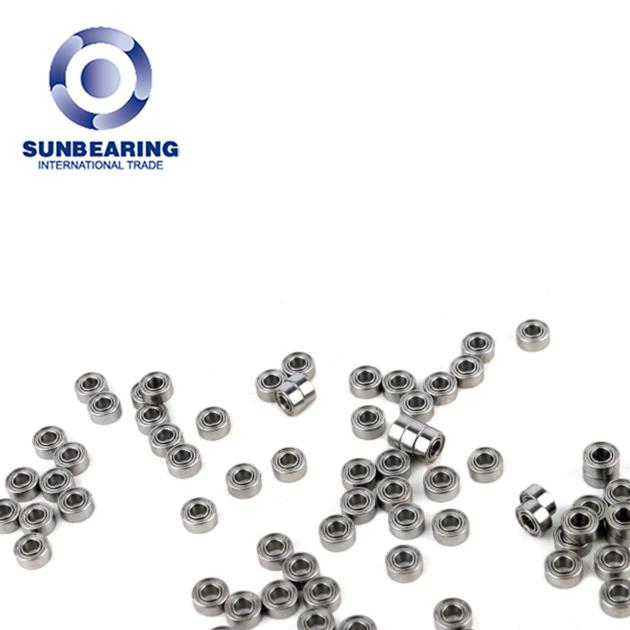

Deep Groove Ball Bearing 695

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.0024kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Metal Seals

Certificate

ISO9001:2008

Advantage

Small and suitable for installation with limited space and on thin shafts.

Number of Row

Single

Dimensions

d-Bore Diameter

5mm

D-Outer Diameter

13mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

4mm

Basic Load Ratings

Cr Dynamic Load Rating

1080N

C0r Static Load Rating

430N




695Bearing, 696Deep Groove Ball Bearings


6810Bearings, extra light bearings are normally used in applications where space limitations are a primary consideration and shaft sizes are relatively large. 685 Series Bearings mainly take radial load as well as moderate axial load. With less coefficient of friction, less vibration and noise,less energy consumption, high limiting speed, large size range and variations of structure.



Feature:

They are the most typical rolling bearings with extensive applications. The raceways in both of the rings are in arc groove form, which can carry radial and axial load in double directions. They can be applied in situations where high-rotating speed and low noise and low vibration are required.



Applications:

Can be found in automobiles, machine tools, motors, instruments, construct machines, railway vehicles, agricultural machines and various other special machines
