6907 2rs Deep Groove Ball Bearing 35*55*10mm SUNBEARING

Product Description

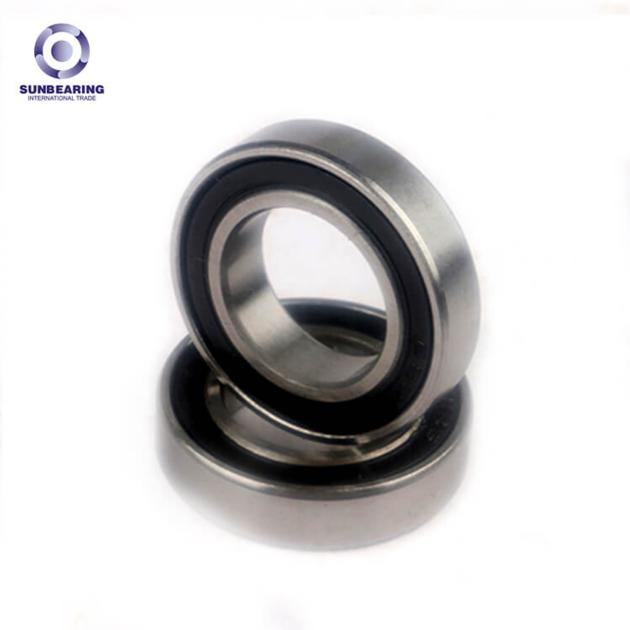

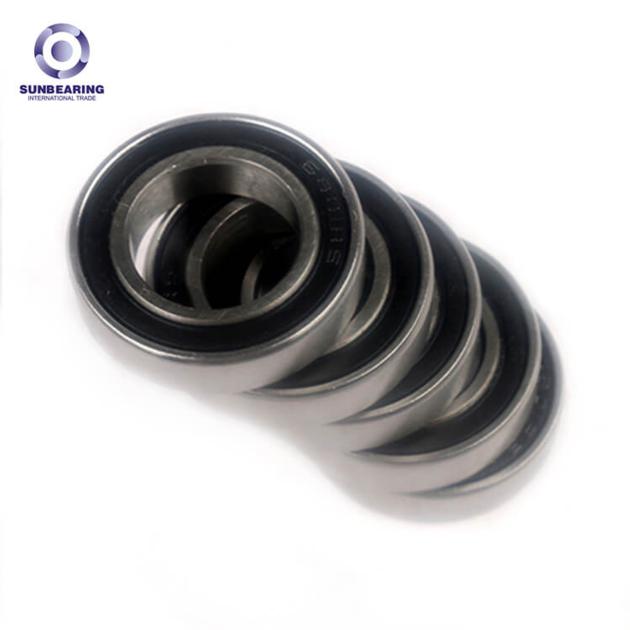

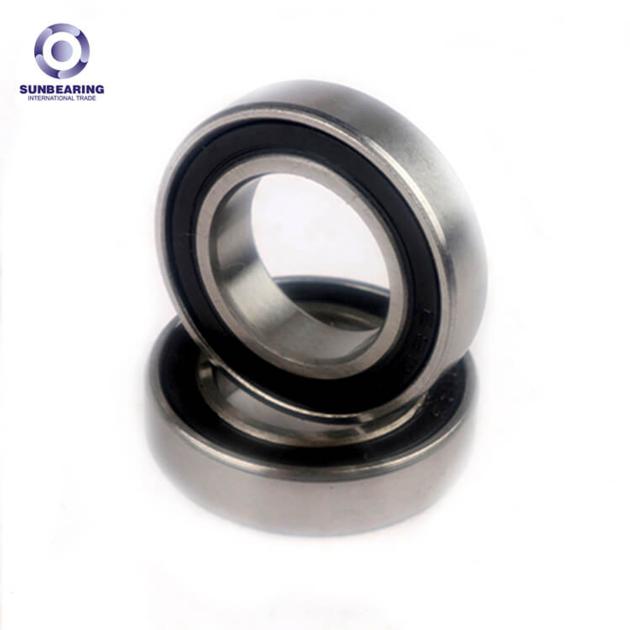

Deep Groove Ball Bearing 6907

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.074kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Rubber Seals

Certificate

ISO9001:2008

Advantage

Narrow, light and with very good spinning characteristics.

Number of Row

Single

Dimensions

d-Bore Diameter

35mm

D-Outer Diameter

55mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

10mm

Basic Load Ratings

Cr Dynamic Load Rating

10400N

C0r Static Load Rating

7150N





· Thin section bearing with a thin, square cross section

· Suitable for space-saving installation in radial and axial directions

· Suitable for high speeds compared to deep groove ball bearings with a larger cross section

· Extra light series with compact dimensions and low weight

· Suitable for radial loads and light axial loads in both directions

· Offers high running accuracy, quiet running and very high speeds

· Seal: contact lip seal on both sides made of rubber (2RS) for high sealing effect

· Good fixed bearing property, but can also be used as a floating bearing, each in both directions

Manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)
