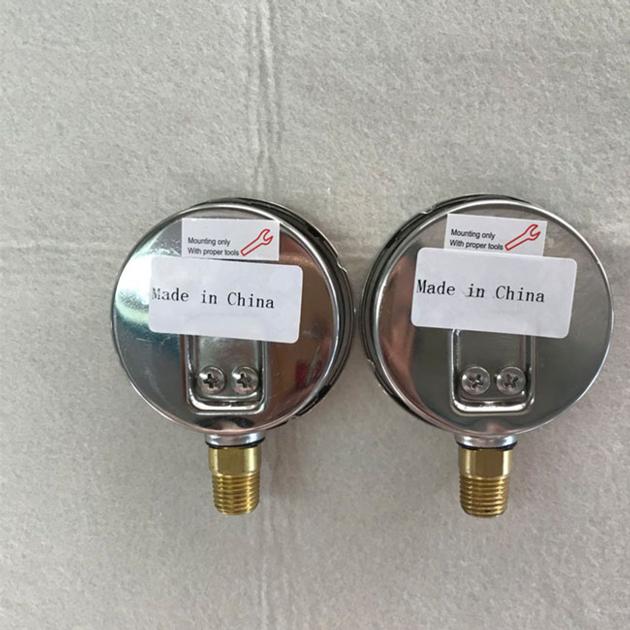

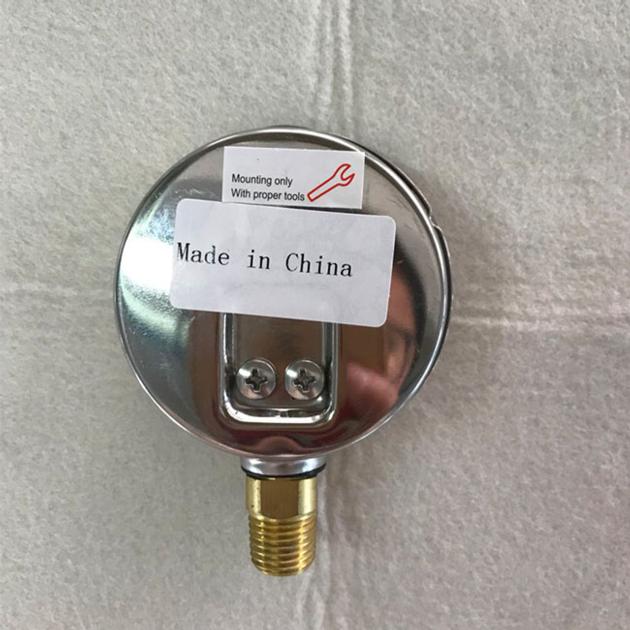

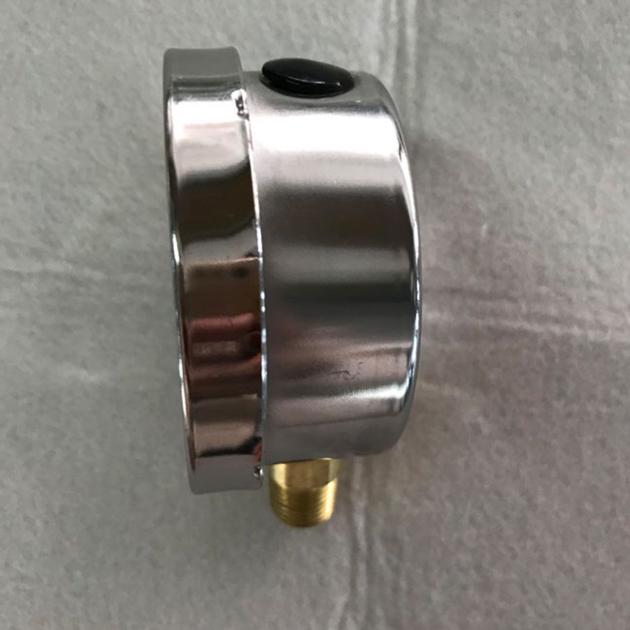

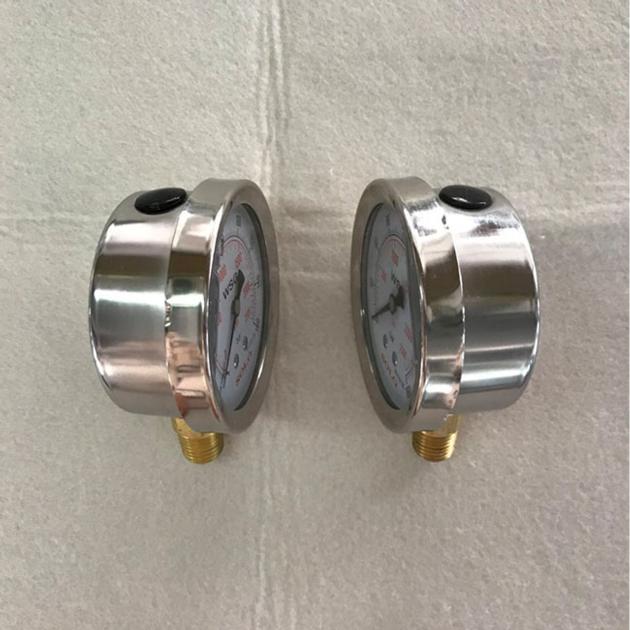

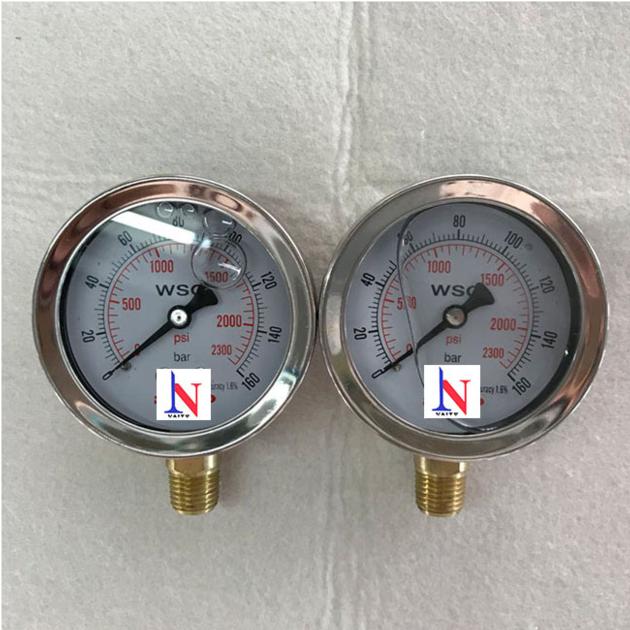

63mm Panel Mount Oil Hydraulic Pressure Gauge
| Price: | US$ 3.16 / Piece |
|---|---|
| Minimum Order: | 200 pieces |
| Payment Terms: | T/T,L/C, D/P, D/A, Money Gram, Paypal, Western Uni |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | YN63 | Brand Name: | Naite or OEM |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Pressure Gauge Description
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304 Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional Ring: Non, black steel or chrome plated Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316 Bourdon tube:Phosphor Bronze,SS304 or SS316 Dial plate and pointer : Aluminum Window: Glass or Safety glass Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT) Mounting: Bottom, back and panel Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6% Pressure limitation : 1:Steady: 3/4x full scale value 2: Fluctuation:2/3x full sacle value 3:Short time:full scale value |
Packaging & Delivery
| Packaging: | 1,each pressure gauge put into a small polybag,then put into paper bag, 100 pcs a carton box 2, our |
|---|---|
| Delivery/Lead Time: | 35 days after receive customer make payment |
| Production Capacity: | 200000 pieces/month |
Product Description
Product Application
These series of stainless steel gauges are widely used in industries,petrol,chemistry,metallurgy,gas station and pump. Series YTF are designed for harsh and corrosive environments.The filled gauges can reduce the internal gauge damage when the working condition full of vibration and shaking.
*Out door and severe ambient and process conditions.
*Use where harmful vibration and pulsation are present.
*Ideal for hydraulic and pneumatic installation requiring instrument orientation .
*Pumps, compressors, water systems, regulators.
*Suitable for fluid medium which does not clog connection port or corrode copper alloy.
Package information:
1,each pressure gauge put into a small polybag,then put into paper bag, 100 pcs a carton box
2, our package meets export standard
3, according to customer request
4, standard wooden box or pallet
|
