6317 ZZ Deep Groove Ball Bearing Silver 50*180*41mm SUNBEARING

Product Description

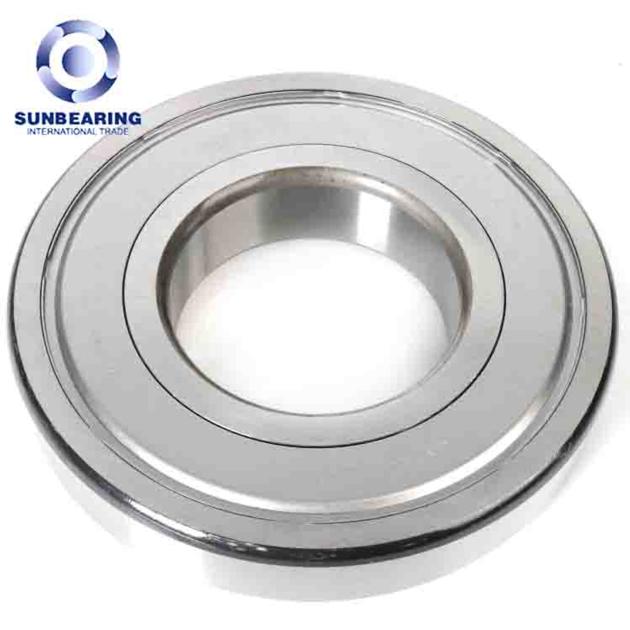

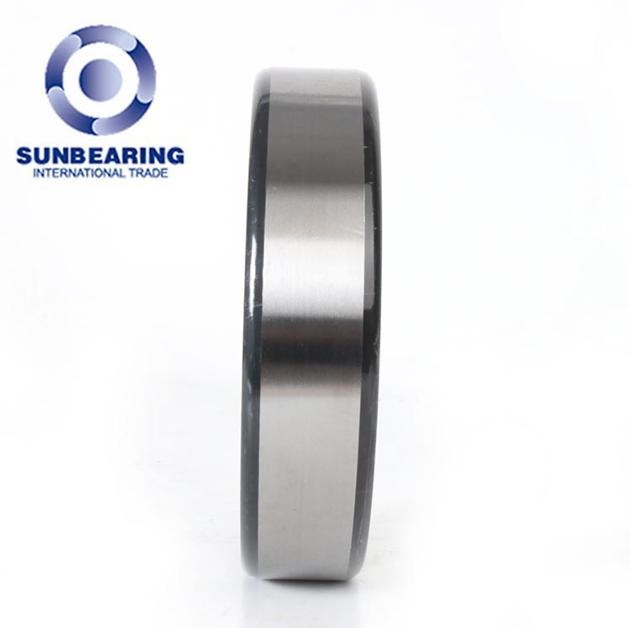

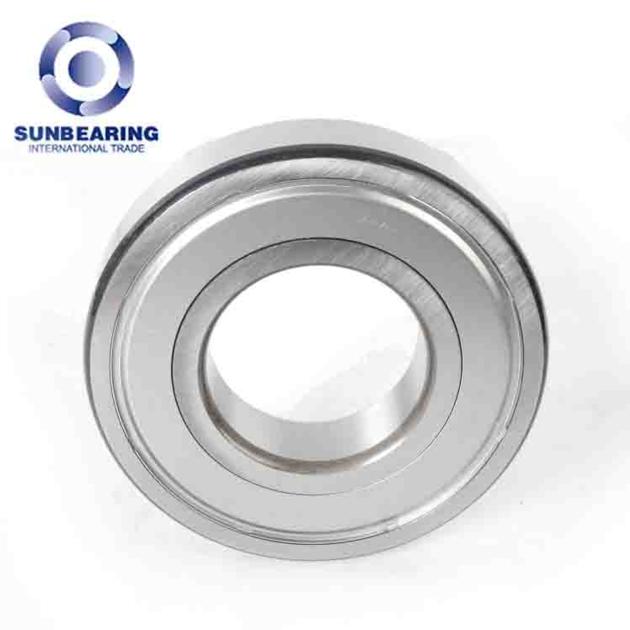

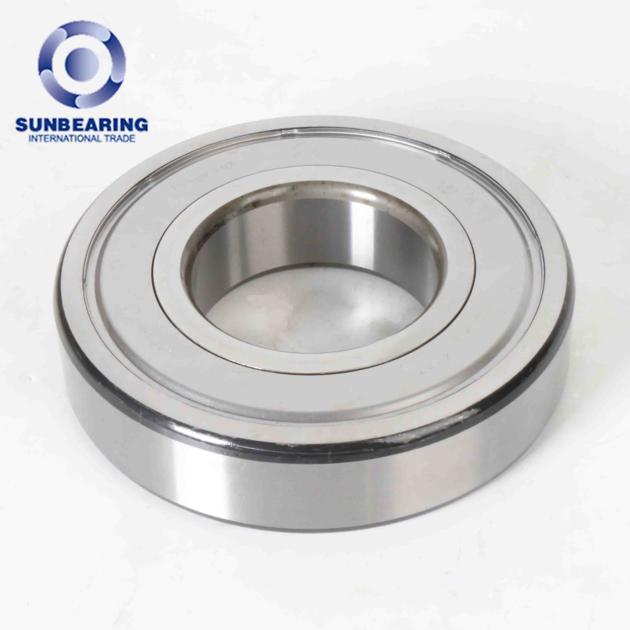

Deep Groove Ball Bearing 6317

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

4.28kgs

Cage Material

GCR 15, Stainless steel etc.

Material

GCR 15, Stainless steel etc.

Ball Type

Steel Ball

Number of Row

Single

Dimensions

d-Bore Diameter

85mm

D-Outer Diameter

180mm

Precision Rating

P0 P2 P3 P4 P5 P6

Hardness



HRC60-HRC63

H-Total Width

41mm

Basic Load Ratings

Cr Dynamic Load Rating

133000N

C0r Static Load Rating

97000N



Product Feature

This is the most representative rolling bearing,which is widely use. The outer raceway of its contents is arc-shaped and groove type,can with stand radial loads and bi-directional load,it is suitable for the occasion of high-speed rotation and low noise,low vibration.

Inside of the bearing,which with a dust cover and rubber seal ring,is filled by the right amount of grease in advance.

For the bearing with ball loaded mouth,the more steel balls improve the rated load.

Such bearings are widely used in auto mobile, electrical,instrumentation,construction machinery, agricultural machinery and a variety of specialized machinery.

Our Service

1. We can customize the standard and non-standard products according to your demands
2. We promise good service, in time delivery, competitive price and high quality.
3. A professional and friendly team
4. We have nearly 19 years experience.
5. Free samples available.
6. OEM is supported

Application Field

Mainly used in motorcycle rear axle wheel hub, heavy machine tools' main shafts, big power reduction gears, axletree axle boxes, roller wheels of transportation devices, and the supporting rollers and working rollers of the rolling mills.
