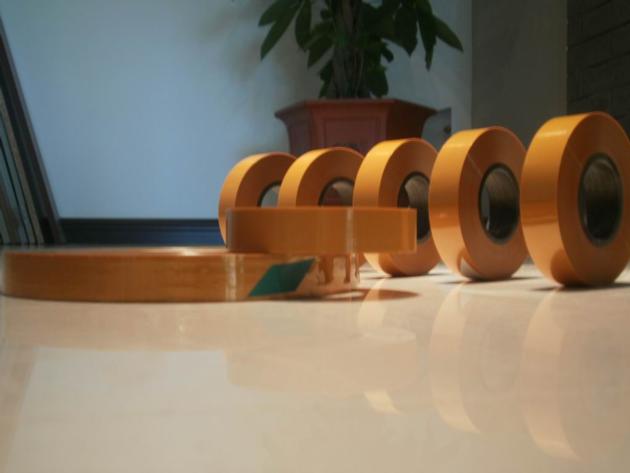

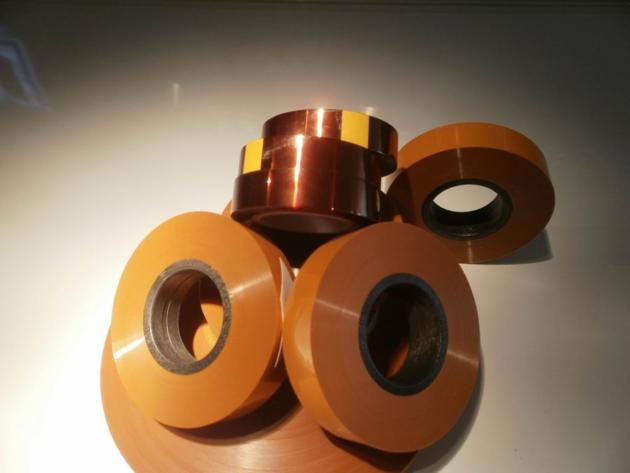

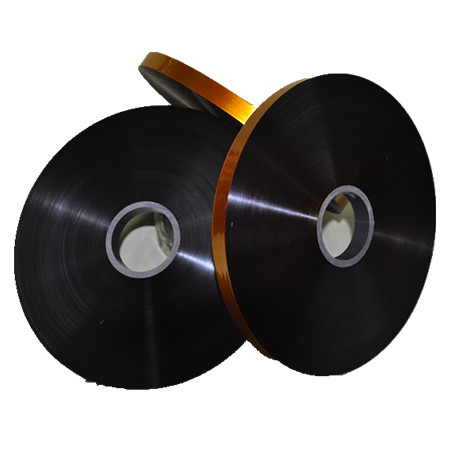

6251 Polyimide Film FEP Adhesive Tape
| Price: | US$ 44 / Kilogram |
|---|---|
| Minimum Order: | |
| Payment Terms: | FOB |
| Port of Export: |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
6251 Polyimide tape is a general polyimide film that is coated or laminated on one or both sides with FEP Fluoropolymer, which imparts heat sealability, provides a moisture barrier, and enhances chemical resistance.
6251 Polyimide tape is recommended in applications that require a heat bondable film, or moisture and chemical resistance beyond the capabilities of uncoated polyimide film. Applications 应用 ● Tubing ● Heater circuits ● Heat sealable bags ● Automotive diaphragms and manifolds ● Electrical insulation Typical Properities 性能 NO. Item Index 1 Tensile Stength (MPa) ≥ 156 135 2 Elongation at Break (%) ≥ 76 93 3 Striping Force ≥ Tape to Tape (N/25mm) 4 Tape to copper 4 4 *Surface Resistivity (Ω）≥ 1.5×1015 5 Breakdown Strength (MV/m)≥ 90 6 *Volume Resistivity (Ω*m) 2.1×1014 7 *Dielectric Constant 50Hz 2-3 8 Dissipation Factor 0.0012 Polyimide Film FEP Adhesive Tape Constructions In this series order code of three digits, the middle digit represents the normal thickness of the coating FEP, the symbol 9 is used to represent 12.7um (0.5 mil) and 1 to represent 25.4um (1 mil). Normal Thickness FEP PI Film FEP Total Type um mil um mil um mil um mil JYF019 25.4 1 12.7 0.50 38.1 1.5 JYF011 25.4 1 25.4 25.4 50.8 2 JYF919 12.7 0.50 25.4 1 12.7 0.50 50.8 2 JYF029 50.8 2 12.7 0.50 63.5 2.5 JYF021 50.8 2 25.4 1 76.2 3 JYF929 12.7 0.50 50.8 2 12.7 1 76.2 3.0 JYF022 50.8 2 50.8 2 101.6 4 JYF031 76.2 3 25.4 1 101.6 4 JYF131 25.4 1 76.2 3 25.4 1 127 5 JYF051 127 5.00 25.4 1 152.4 6.0 Width : 6mm~1000mm For more information on Polyimide Film FEP Adhesive Tape or other high performance materials, Please contact your representative. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Polyimide film FEP Series is polyimide film coated with FEP on one or both side, imparts heat sealability, provides a moisture barrier, and enhances chemical resistance. Mainly used in magnet wire insulation, formed coil insulation, CPTC and release liner.
Type Polyimide film FEP Constructions
In this series order code of three digits, the first and third digit represents the normal thickness of the coating FEP, the symbol 9 is used to represent 12.7um (0.5 mil)，6 to 2.54 um. HF is used to represent polyimide film coated with FEP on single side, and FHF to double side.
性能表
Type FEP PI Film FEP Total
um um um um
HF019 25.4 12.7 38.1
HF019-B 30 10 40
HF019-C 40 10 50
HF011 25.4 25.4 50.8
HF021 50.8 25.4 76.2
FHF616 2.54 25.4 2.54 30.48
FHF616-B 3 25.4 3 31.4
FHF616-C 6.35 25.4 6.35 38.1
FHF919 12.7 25.4 12.7 50.8
FHF919-B 10 30 10 50
FHF919-C 10 40 10 60
FHF929 12.7 50.8 12.7 76.2
Thickness Tolerance % ¯10
Other size should be talked if we could produce.
Product Supply 供货能力
1. Width: 5~500mm could be cut.
2. Core ID: 40,50,76mm Roll OD: 200~250mm
3. Package:
1) Inside: Polythene film
2) Outside: Carton or wooden case
4. Payment: T/T or L/C at sight
5. Delivery time: 14 days after receiving your advance payment or L/C advice
6. MOQ: 200kgs
|
