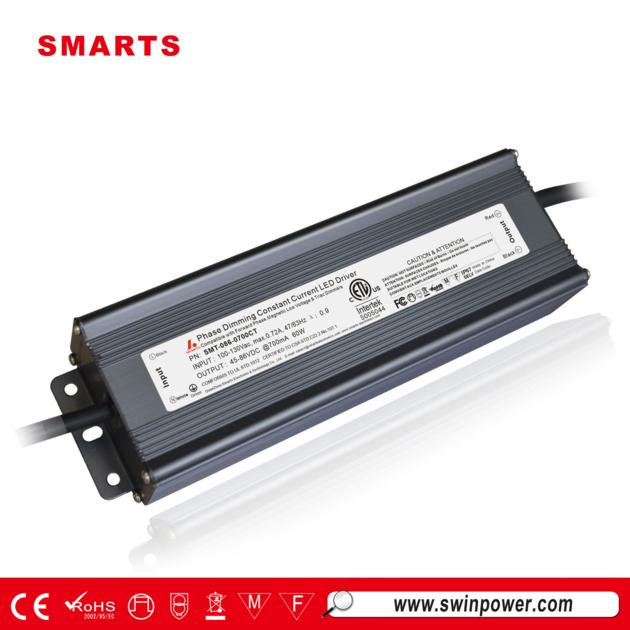

60W 700ma 900ma 1050ma constant current triac led dimmable driver
| Price: | US$ 25.45 / Piece |
|---|---|
| Minimum Order: | 1pcs |
| Payment Terms: | T/T,Western Union,paypal,trade assurance |
| Port of Export: | XIAMEN |
Product Details
| Model No.: | SMT-086-0700CT | Brand Name: | SMARTS |
|---|
| Certification: | ETL CE ROHS |
|---|---|
| Specification: |
60W 700ma 900ma 1050ma constant current triac led dimmable driver
the model of 700mA triac dimmable led driver please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero |
Packaging & Delivery
| Packaging: | inner box-white box + outer carton- standard exporting carton packing |
|---|---|
| Delivery/Lead Time: | 7 working days for sample order,12 working days for 500pcs. |
| Production Capacity: |
Product Description
Model: SMT-086-0700CT
Output: DC Current 700mA
Current Accuracy:¯5%
Voltage Range ：45-86V
Rated power ：60W
Input Voltage Range：100-130VAC / 170～265VAC
Frequency Range：47～63HZ
Power Factor （Typ.）
PF≧0.93/110V ; PF≧0.95/220V ; PF≧0.94/250V
Full Load Efficiency（Typ.）>85%
AC Current（Typ.）
.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
Leakage current
<0.27mA/110VAC; ﹤0.25mA/220VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over voltage≦270VAC
Environment
Working TEMP.-40～+60℃
working Humidity :20～90%RH,non-condensing
Storage TEM.,Humidity :-40～+80℃，10～95%RH
TEMP.coefficient:¯0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN-60950-1, EN-61347-1-2
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY
Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry
level （surge4KV）
Weight :0.34Kg/pcs
Size:200*68*45mm （L*W*H）
packing :324*298*176mm
Notes
1. All parameters NOT specially mentioned are measured at 110V/230VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a
0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
