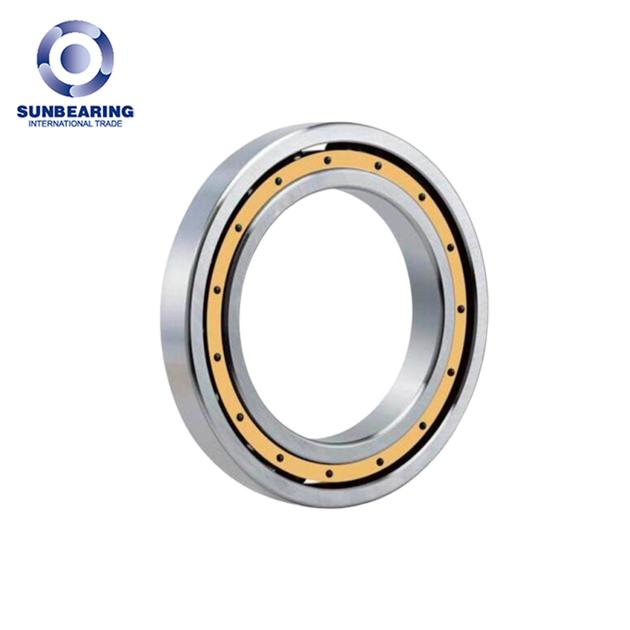

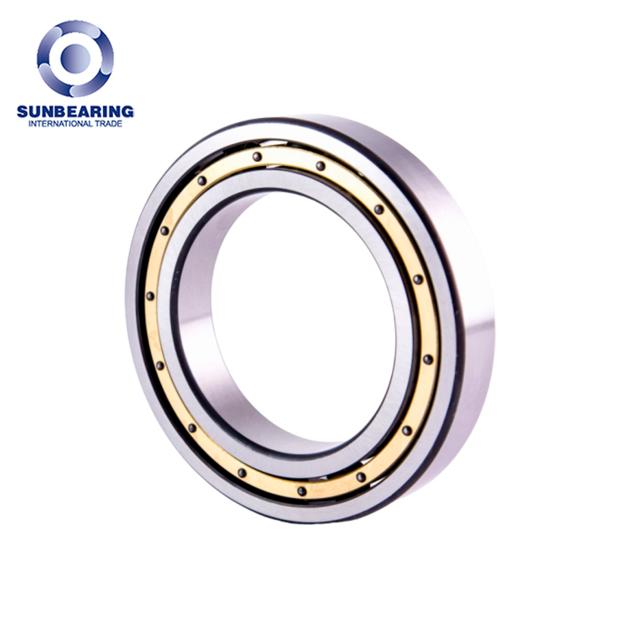

6044M C3 Open Deep Groove Ball Bearing with Brass Cage 220*340*56mm SUNBEARING

6044M Deep Groove Ball Bearing
Product Description
6044M deep groove ball bearing
6044M Deep Groove Ball Bearing Description

Specification

Dimensions

Design Units

Metric

d-Bore Diameter

220mm

Structure

Ball Bearing

D-Outer Diameter

340mm

Weights

15.5kgs

Precision Rating

P5 P6 P4 P2 P0

Cage Material

Brass Cage

Clearance

C2 C3 C4 C5 C0

Material

Chrome Steel GCR15





Ball Type

GCR15 Steel

H-Total Width

56mm

Seals Type

Open

Basic Load Ratings

Certificate

ISO9001:2008

Cr Dynamic Load Rating

242000N

Feature

Having deep raceway grooves in close proximity to the balls enables a deep groove ball bearing to accommodate axial loads in both directions as well as radial loads, even at high speeds.

C0r Static Load Rating

284000N

Number of Row

Single

Specifications/Environment

Standard

6044M deep groove ball bearing drawing
6044M Deep Groove Ball Bearing Features
Single row deep groove ball bearings are used in a wide variety of applications, they are simple in design, non-separable, suitable for high speeds and are robust in operation, and need little maintenance.

Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads.

Single row deep groove ball bearings are manufactured as open type (unsealed), sealed and shielded, the most popular sizes of deep groove ball bearings are also produced in sealed versions with shields or contact seals on one or both sides, the bearings with shields or seals on both sides are lubricated for life and are maintenance-free.

A sealed bearings seals have contact on the bearings inner and outer, a shielded bearings shield has contact on the outer only, and Shielded bearings are primarily intended for applications where the inner ring rotates. If the outer ring rotates, there is a risk that the grease will leak from the bearing at high speeds.
