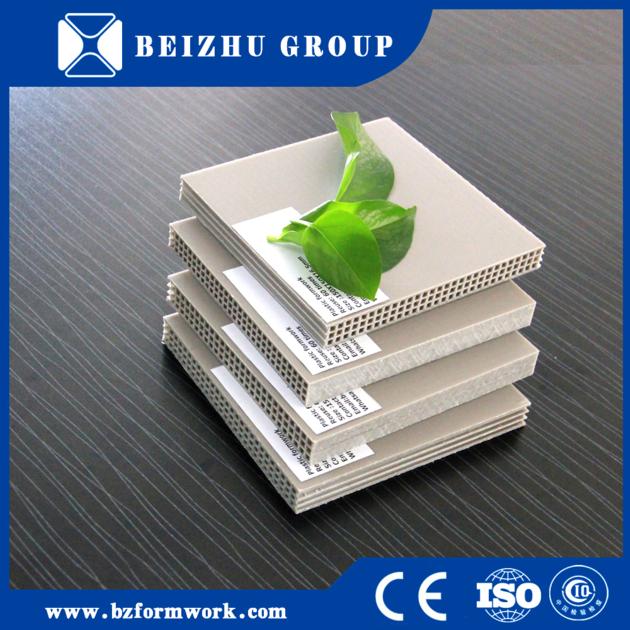

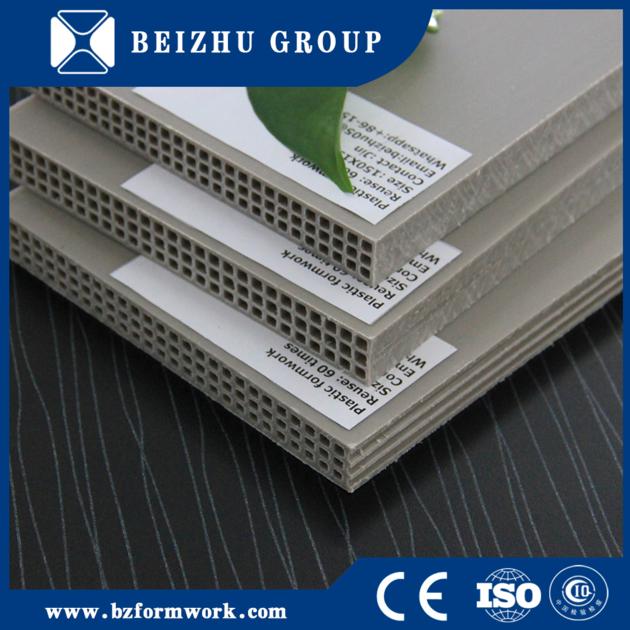

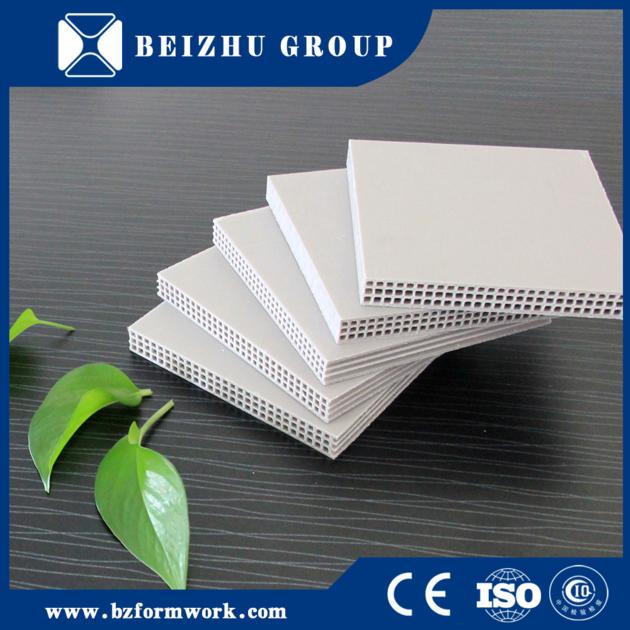

60 reusable times plastic composite wall board concrete panel formwork system

1.When the hollow column formwork is used on the intersecting surface , it can be 14 mm thick, when used for transverse shear wall it should be 14 ~ 15 mm thick.
2. The distance between wood: (1) on the surface of the intersection wood square distance according to the thickness of the slab concrete, in general, if the thickness of slab concrete is less than 0.15 m ,the wood square distance should be 250 ~ 300 mm.(2) the distance between wood of the shear wall is adjusted by the height and thickness of the wall, for example, the wall is 2800 mm high and 300 mm thick, wood square distance should be 100 ~ 200 mm using a 14 mm thickness template, and be 150 ~ 250 mm with 15 mm thick planks of wood, if the shear wall, width of the pillar is thick more than 1 m, must add the fixed frame.
3. Between column formworks is normally should no space, but if the temperature difference is 5 ~ 10 ℃, then should reserve 1 ~ 2 mm gap.
4. There shouldn't be gaps between the die shear wall and column puzzle, there must be wood square in internal Angle (the bottom of the wall) beam to insure the beam frame, wall and templates connect well. Shear column formwork must be assembled into the whole piece before lifting, and then spread tablet, thus can reduce labor intensity, as well as improve the forming effect .
5. When nailing the template, the distance between the template edge and nail should be 15 ~ 30 mm, the strength of driving nail should be moderate, length of nails should be 30 ~ 35 mm, not too long or too short.
6.There must be a seam allowance for the wood in the beam bottom,make the wallboard stand on seam allowance of wood square, thus can ensure the leak leak not slurry and save wallboard material efficiently.
