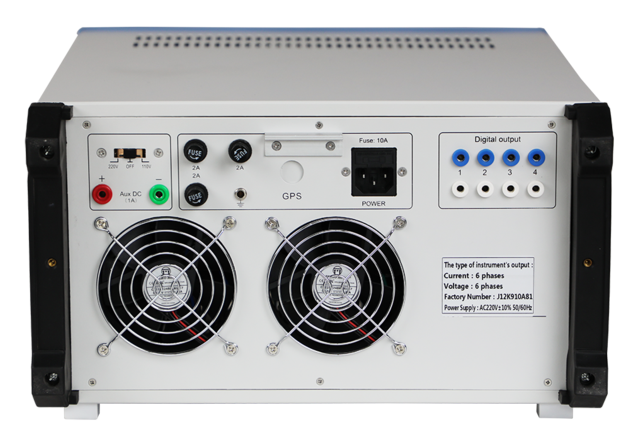

6 phase protection relay tester
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, PAYPAL |
| Port of Export: | wuhan |
Product Details
| Model No.: | VAHME-1200 | Brand Name: | VA/ ODM |
|---|
| Certification: | |
|---|---|
| Specification: |
Current Generator
Setting range 6-phase AC(L-N) 6x0…30A 3-phase AC(L-N) 3x0…60A 1-phase AC(LL-LN) 1x0…180A DC(L-N) 6x0…¯10 A Power 6-phase AC(L-N) 6x300VA at 30A 3-phase AC(L-N) 3x450VA at 60A 1-phase AC(LL-LN) 1x1000VA at 180A DC(L-N) 6x70VA at 10A Accuracy AC: ≤0.2% DC: ≤0.5% Resolution 1mA Voltage Generator Setting range 6-phase AC(L-N) 6x0…120V 3-phase AC(L-N) 3x0…240V DC(L-N) 6x0…¯160V Power 6-phase AC(L-N) 6x80VA at 120V 3-phase AC(L-N) 3x100VA at 240V DC(L-N) 6x70VA at 160V Accuracy AC: ≤0.2% DC: ≤0.5% Resolution 1mV Auxiliary DC Supply Voltage range 110V/220V(max.1.5A) Power max.165VA/330VA Digital Inputs Number 8 Input characteristics idle contact or potential-free contact Threshold characteristics “0”:0～6V; “1”:12V～250V Max. measuring time 999999.999s Time accuracy ¯1ms Time resolution 1ms Digital Outputs Number 8 Type idle contact Break capacity 250VAC/0.5A, 250VDC/0.2A General Generators Frequency range: 0~1000Hz accuracy:<1mHz(0~65Hz);<10mHz(65~450Hz);<20mHz(450~1000Hz) resolution: 0.01Hz Phase range: -360® ~+360® accuracy: 0.1® resolution: 0.1® Harmonic superposition order: 2~20 times distortion: ≤0.5% Power Supply Nominal input voltage customized (AC230V/120V¯10%, 1-phase) Nominal frequency 50/60 Hz Rated current 10A at 230V / 12A at 120V Connection standard AC socket (IEC 60320) Environmental Conditions Operation temperature 0 ... +50 ®C (+32 ... +122 ®F) Storage temperature -25 ... +70 ®C (-13 ... +158 ®F) Humidity range relative humidity 5 ... 95 %, non-condensing Vibration IEC 60068-2-6(20m/s2 at 10 ... 150 Hz) |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 7 DAYS |
| Production Capacity: | 100SET/WEEK |
Product Description

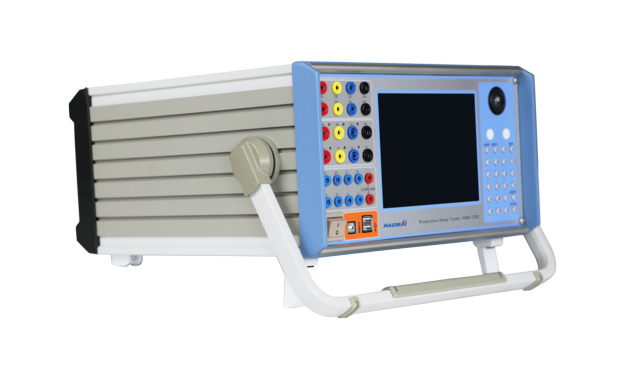

The HME-1200 is all-in-one relay tester, which outputs 6-phase current(6×30A) & 6-phase voltage(6×120V) for testing conventional protection relays.
The embedded industrial PC with 8” LCD screen, keyboard and trackball mouse are adopted to make HME-1200 run without a PC. It is also available to connect HME-1200 to PC for completing various tests.
The new high-fidelity linear amplifier is used for HME-1200 to avoid high and medium frequency interference on the test site, and ensure smooth and accurate waveform from large current to small current.
The main features of Economical 6-phase Protection Relay Tester HME-1200 are as follows:
● Most cost-effective 6-phase relay tester
● 6-phase current(6×30A) + 6-phase voltage(6×120V) output
● Embedded industrial PC with 8” LCD screen
● Both local test and PC remote test available
● Adopt high fidelity and high reliability linear amplifier
● Abundant test modules for testing various protection relays
|
