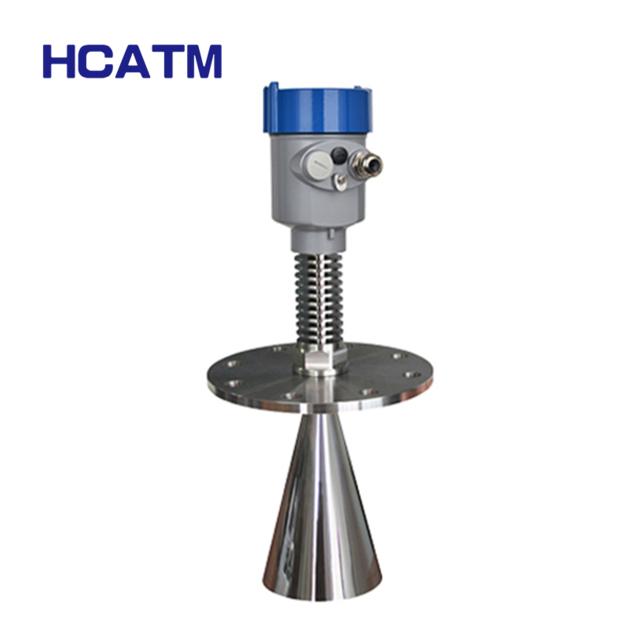

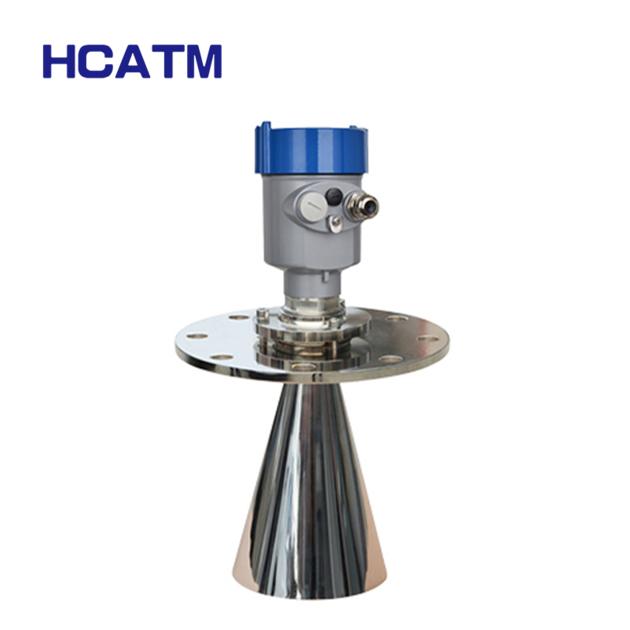

6.8GHz 4-20mA Low Power Environmental Protection Radar Level Transmitter
| Price: | US$ 500 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | Payment to delivery |
| Port of Export: |
Product Details
| Model No.: | GML801-C | Brand Name: | HCATM |
|---|
| Certification: | |
|---|---|
| Specification: |
GML801-C transmits and receives very short microwave pulses with very low energy through the antenna system. Radar waves travel at the speed of light. The running time can be converted into a level signal by electronic components. --A special time extension method can ensure stable and accurate measurement in a very short time.
Even if the working conditions are more complicated and there are false echoes, the latest micro-processing technology, and debugging software can accurately analyze the level echoes. |
Packaging & Delivery
| Packaging: | Ultrasonic flowmeters are transported in environmentally friendly cartons. |
|---|---|
| Delivery/Lead Time: | 7 |
| Production Capacity: |
Product Description
Product Features
1. The intelligent radar level meter uses advanced microwave processing technology and unique Echo Discovery echo processing technology. The product can be applied to various complicated working conditions.
2. "False Echo Learning" function enables the meter to accurately identify true echoes under multiple false echo conditions, thereby obtaining accurate measurement results.
3. A variety of process connection methods and types of detection components can be customized according to customer needs.
4. Using pulse working mode, the product's transmitting power is extremely low, and it can be installed in various metal and non-metal containers without harming the human body and the environment.
Application
Power plants: coal piles, raw coal bunkers, fuel bunkers, cisterns, exhaust gas purification tanks, bunker pumps, steam drums, ash depots, fuel tanks, etc .;
Oil field: crude oil storage tank, refined oil storage tank, three-phase separator, sedimentation tank, sewage tank, oil-water interface, drilling mud tank, etc .;
Chemical industry: crude oil distillation tower, raw material silo, intermediate silo, reaction tank, ammonia water tank, solid silo, separator, asphalt storage tank, etc .;
Metallurgy: blast furnace, ore silo, ore crusher, raw material silo, auxiliary silo, alumina powder silo, electrolytic tank buffer tank, etc .;
Water conservancy: canals, reservoirs, farmland irrigation, river water level monitoring, flash flood warning, urban waterlogging, etc .;
Cement: stone silo, raw silo, cement silo, pulverized coal silo, slag storage silo, commercial boiler, etc .;
Food: Juice factory, milk factory, raw sugar storage tank, tomato sauce storage tank, brewery storage tank, etc .;
Pharmaceutical: Chinese medicine storage tanks, separators, fermentation tanks, etc .;
Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks, etc .;
Papermaking: raw material warehouse, storage tower, drying drum, chemical material storage warehouse, etc .;
Others: quarry, coal mine, environmental protection, shipbuilding and other industries.
|
