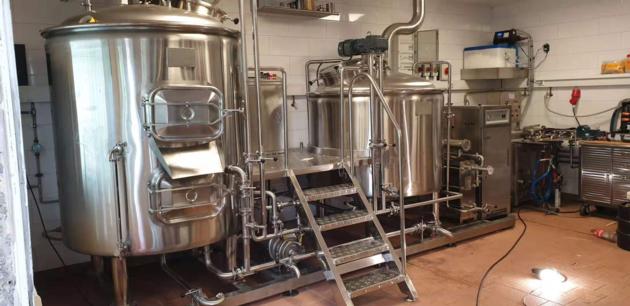

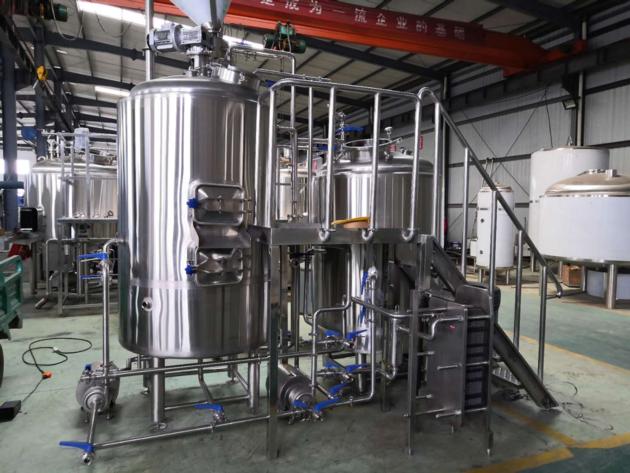

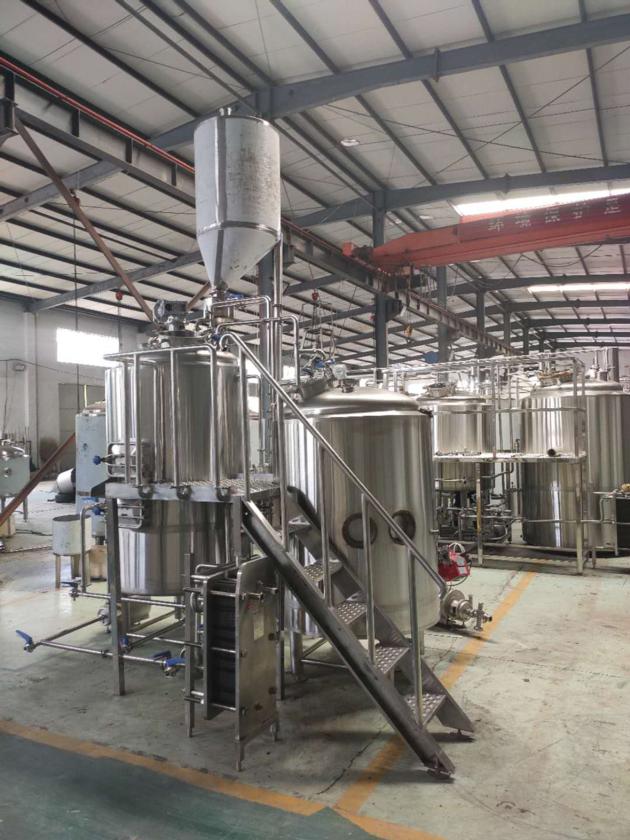

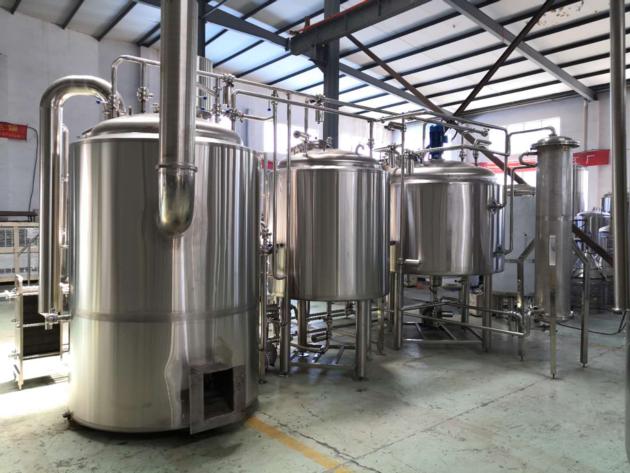

5bbl Gas Fired / Direct Fire Heated Brewhouse

1-5bbl brewhouse system

2-Both Gas and Electrical fired kettle

3-Separate Hot liquor tank

4- Two pumps VFD

Brewhouse Unit
1. Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
2. Hot water tank and cold water tank for optional in special combinations
3. Infusion or decoction brewing methods are designed exactly
4. Stainless steel or copper cladding are popular
5. Two stages or single stage heat exchanger for wort cooling
6. Completely stainless steel integrated work platform
7. Sanitary and efficiency wort pump
8. All pipings and fittings



Fermentation Unit

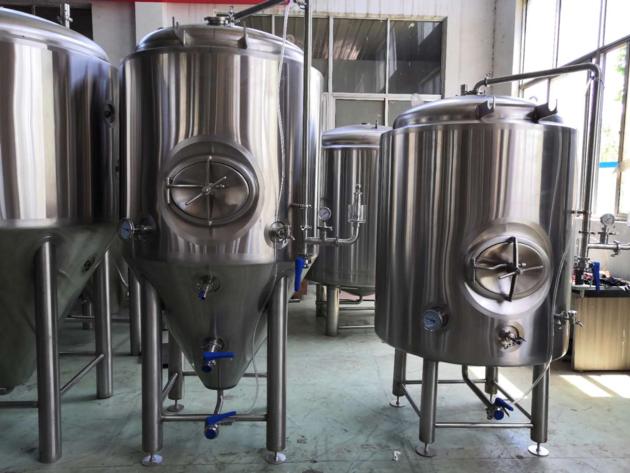

1. Standard stainless steel conical cylindrical fermentation tanks
2. Single size as brewhouse is common used in restaurant
3. Tanks quantity is exactly calculated by fermentation cycle for various beers
4. All manhole, valves, pressure gauges, fittings etc are included



Bright Tank Unit
1.Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
2. Single size as fermenter is common used in restaurant or bar
3. Tanks quantity is exactly calculated for various beers and the function
4. All manhole, valves, stone, gauges, fittings etc are included


Cooling Unit
1.Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
2. Efficiency chillers or refrigerators with fronto supply cooling energy
3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
4. All pipes, fitting, insulation materials are included



Controlling Unit
1. Electrical controlling cabinet with temperature, on-off controlling for brewhouse
2. Electrical controlling cabinet with temperature, on-off controlling for cooling parts
3. Temperature controller, thermocouple, solenoid valves etc are included
4. PLC with touch screen panel for special request
