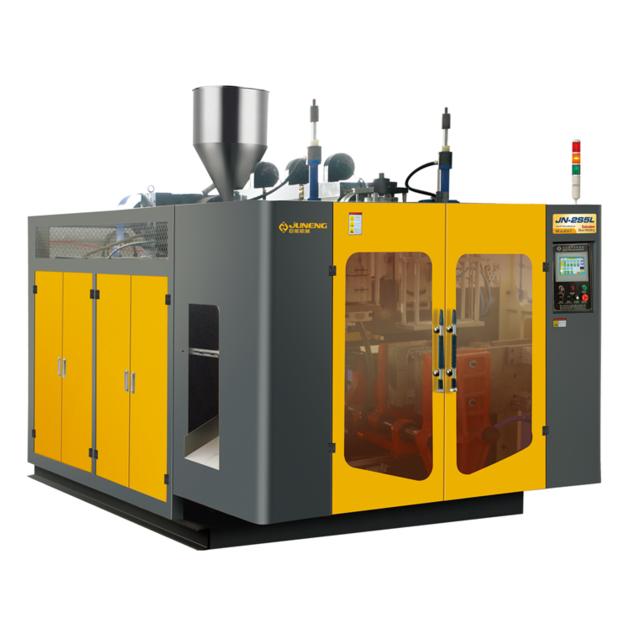

5L,10 extrusion blow molding machine for bottles and container
| Price: | US$ 23000-30000 / Set |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | 30% as deposit, balance paid before delivery |
| Port of Export: | ningbo |
Product Details
| Model No.: | JN-90U for 5L/2cavity, 10L/1cavity double double station | Brand Name: | JUNENG |
|---|
| Certification: | ISO9001 CE |
|---|---|
| Specification: | Toggle clamping unit, better for clamping force and stability |
Packaging & Delivery
| Packaging: | SEAWORTHY |
|---|---|
| Delivery/Lead Time: | 45-70 DAYS |
| Production Capacity: | 5L: 800pcs/hr 10L: 400pcs/hr |
Product Description
Max. Product Volume L 12L/1;5L/2
Dry cycle PC/H 600x2
Screw diameter MM 90
screw L/D ratio L/D 25
screw motor power KW 37
screw heating capacity KW 6.8
No. of heating zone Zone 4
output of HDPE KG/H 130-150
oil pump driver power KW 18.5
clamping force KN 160
mold stroke MM 240-600
size of mold(W*H) MM 550x500
Moving distance MM 600
Max. Die diameter(W*H) MM 220
Die heat capacity KW 3.5-5.3
Blowing pressure MPA 0.6-0.8
Air volume M3/Min 0.8
Cooling water pressure MPA 0.5
water consumption L/Min 80
weight of machine Ton 12
size of machine M 4.5x3.3x2.8
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | ISO9001 CE | ||
| City/State | Taizhou City, Zhejiang Province | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | 1995 |
| Member Since: | 2020 | Contact Person | Cathy Chen |
SUPPLIER PROFILE
City/State/Country -
Taizhou City, Zhejiang Province
China
Business Type -
Export - Manufacturer / Trading Company
Established -
1995
Member Since -
2020
Contact Person -
Cathy Chen
