58U, AKA 59B, 59U Mechanical Seals for Chemical Centrifugal Pumps, Vacuum Pumps, Compressors

Basic Features
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: High Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Wear
Standard: Standard
Model NO.: 58U, AKA 59B, 59U
Balance: Unbalanced
Specification: Inner Diameter: 20 mm to 100 mm
Product Detailed Description

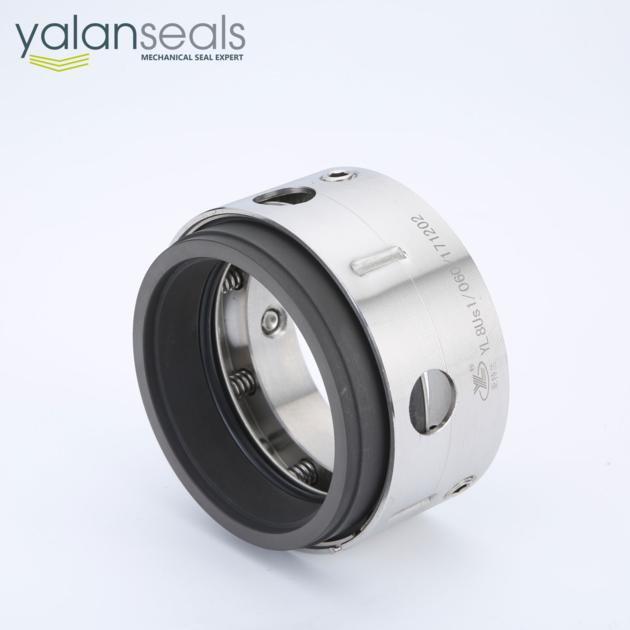

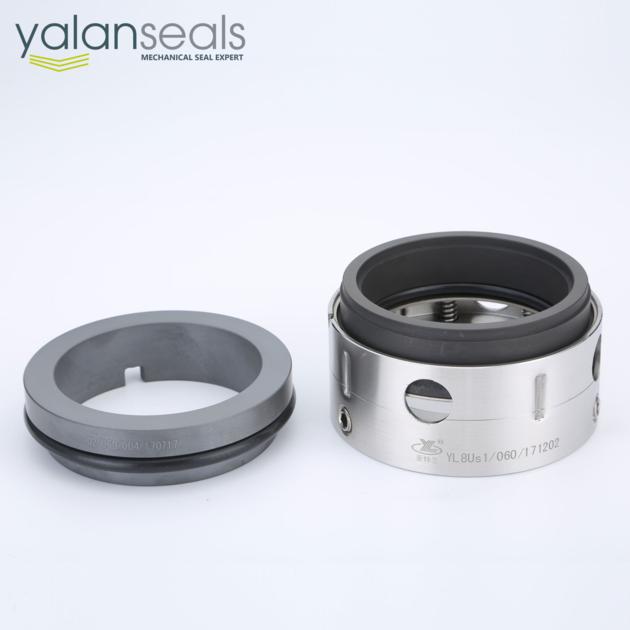

58U, AKA 59B, 59U Mechanical Seals for Chemical Centrifugal Pumps, Vacuum Pumps, Compressors and Reaction Kettles

Structural Features: single end, multiple springs, unbalanced, independent direction of rotation, drive sleeve transmission. This component has a compact structure with small axial dimension and equal force on the sealing surface. This component can work as an alternative to similar products such as John Crane 58U, 59B, and 59U.

Industrial Standards: DIN24960, ISO3069, GB6556-94

Scopes of Application: mainly used in chemical centrifugal pumps, vacuum pumps, compressors and reaction kettles for industries such as chemical processing, refrigeration, oil refining, petrochemical engineering, sewage treatment, electricity generation, papermaking, and pharmacy.

Operation Parameters:
Pressure: 1.6 MPa or less
Temperature: - 20 ~ 200 ºC
Linear Speed: 20 m/s or less
Mediums: oil, water, amorphism acid. alkali, salt, and organic solvents.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
