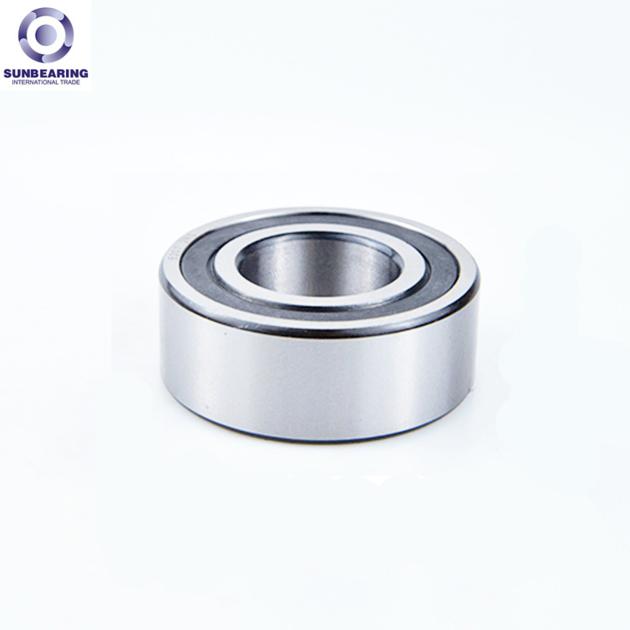

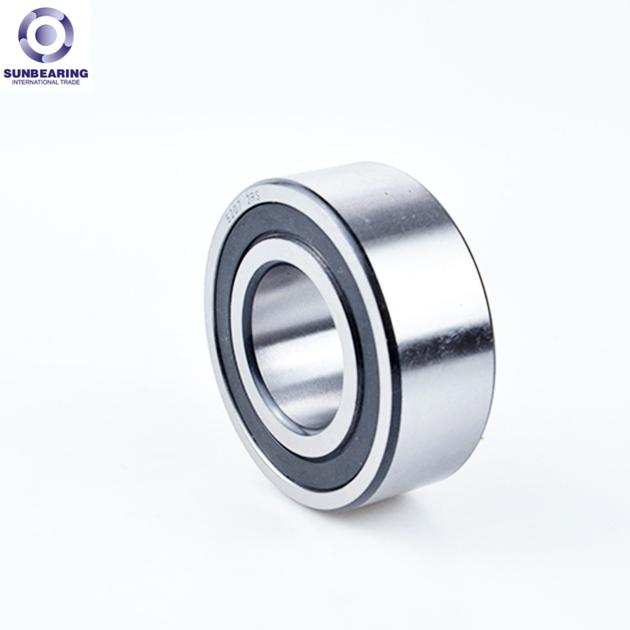

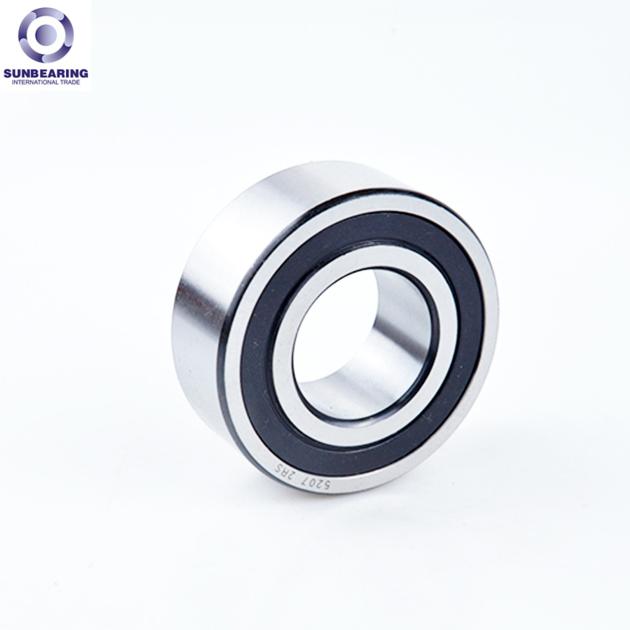

5207-2RS Double Row Angular Contact Ball Bearing 35*72*27mm SUNBEARING

Product Description




Angular Contact Ball Bearing 5207

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.43kgs

Cage Material

Steel Cage

Material

Chrome Steel GCr15

Ball Type

Steel Ball

Seals Type

Rubber Seal

Certificate

ISO9001:2008

Number of Row

Double

Dimensions

d-Bore Diameter

35mm

D-Outer Diameter

72mm

Precision Rating

P0 P5 P4 P2

Clearance



C2 C3 C4 C5

H-Total Width

27mm

Basic Load Ratings

Cr Dynamic Load Rating

40000N

C0r Static Load Rating

29500N





Product Feature



Angular contact ball bearing has high limit rotational speed, they can carry radial load and axial load simultaneously, they can also withstand purely radial load. The axial load carrying capacity depends on the magnitude of contact angle and increases with increasing contact angle. Since the rigidity of single-row angular contact ball bearings can be increased by preloading, they are often used in the main spindles of machine tools, for which high running accuracy is required.
Single row angular contact ball bearings can carry axial load acting in one direction only. In many applications, angular contact ball bearings in pairs or multi-arrangement should be used.
Angular contact ball bearing Feature: High precision, Low operating friction, High limiting speed, Anti-vibration, Long life, Higher Load capacities, Wear-resistant.



Our Service



1.Original bearings(products) & packing

2.Chrome steel material,GCr15

3.High quality & reasonable prices & good services

4.Quality submit to ISO9001:2008

5.Over 19 years bearing manufacturing processing experience

6.OEM Service

7.Fast delivery(within 8 days)

8.Low noise bearings

9.All models in stock



Application Field



Angular Contact Ball Bearing are widely used in Machine tool spindles, high frequency motors, gas turbines, centrifugal separator, small car front wheels, differential pinion shaft, roots blowers, air compressors, transmissions, printing machine motors, water pump, oil pump, cutting machines, reducers, prospecting machines, polishing machines, diesel engines, textile machinery, steel mills etc.SUN Bearing can provide professional consults to customer for your application fields and offer you specific application solutions with high efficiency and precise cost control.
