51203-A Thrust Ball Bearing 17*35*12mm Chrome Steel GCR15 SUNBEARING

Product Description

thrust ball bearing 51203

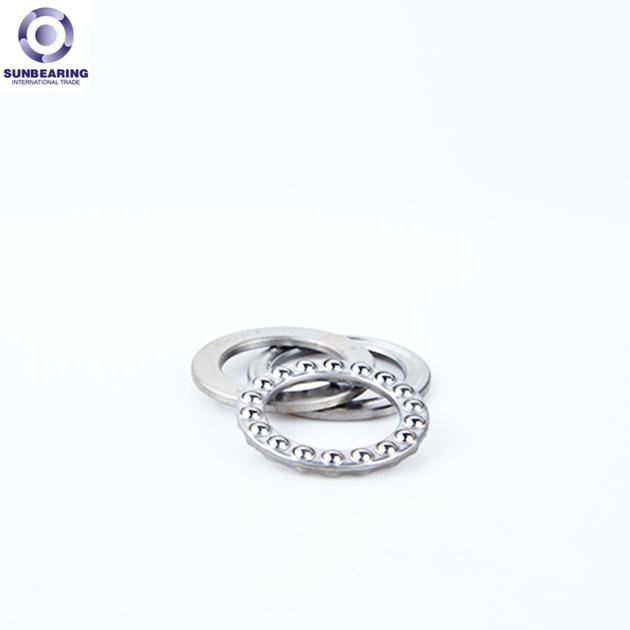

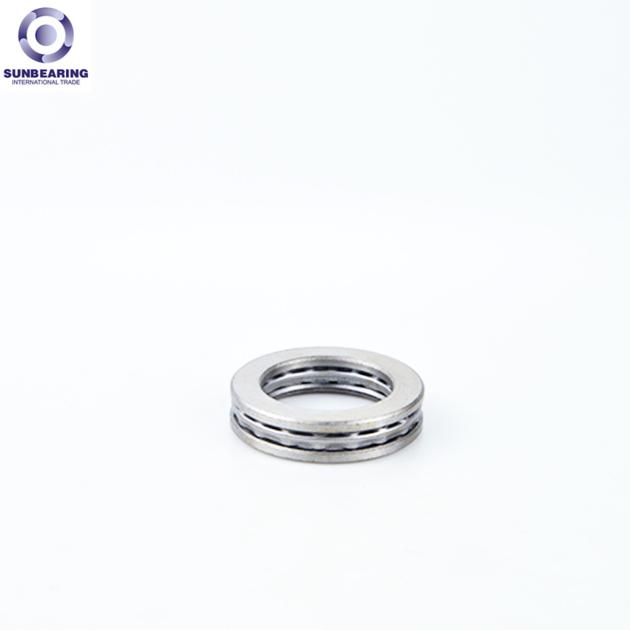

Thrust Ball Bearing 51203-A

Specification

Design Units

Metric

Structure

Ball Bearing

Weights

0.053kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Open

Certificate

ISO9001:2008

Advantage

Prompt Delivery shipped within 72 hours; Use of options in the ring, may allow the installation error.

Number of Row

Single

Dimensions

d-Bore Diameter

17mm

D-Outer Diameter

35mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

12 mm

thrust ball bearing drawingthrust ball bearing

Thrust bearing is designed to withstand the thrust load at a high speed, and is composed of gasket ring with ball rolling groove.Because the ring is a cushion form, the thrust ball bearing is divided into two types: flat base cushion type and aligning spherical seat cushion type.In addition, this bearing can withstand axial load, but cannot bear radial load.

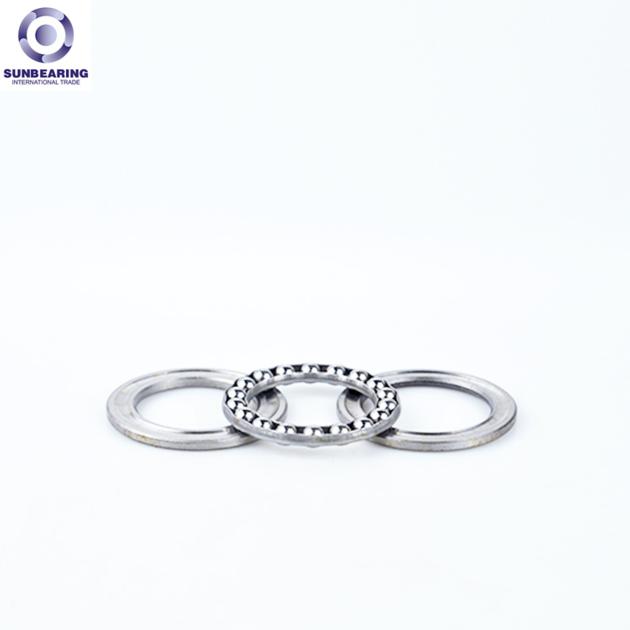

Single direction thrust ball bearings: consist of two washers with raceways, balls guided and cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.

Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two housing washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.
