51101 Trust Ball Bearing Silver 12*26*9mm SUNBEARING
| Price: | US$ 058 |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 51101 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | 12*26*9mm |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: |
Product Description
Product Description

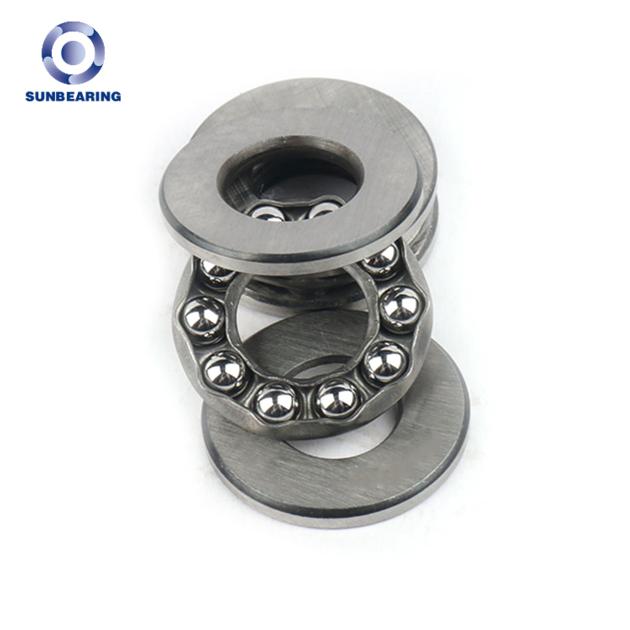

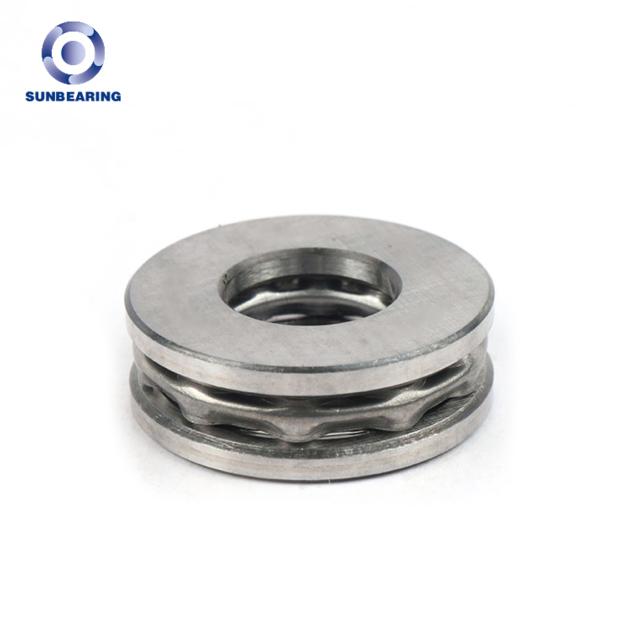

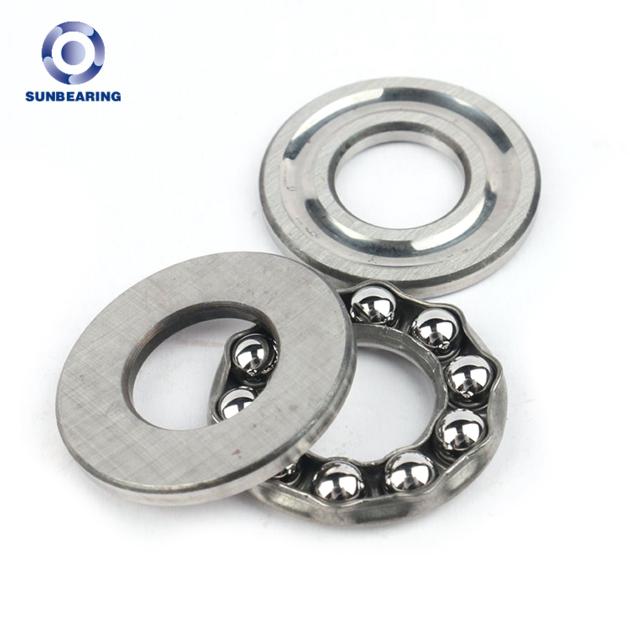

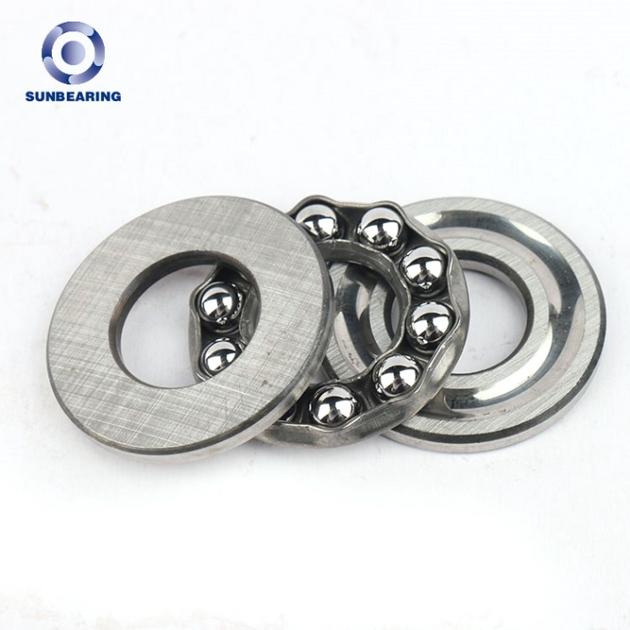

Thrust ball bearing 51101
Specification
Design Units
Metric
Structure
Ball Bearing
Weights
0.021kgs
Cage Material
GCR 15, Stainless steel etc.
Material
GCR 15, Stainless steel etc.
Ball Type
Steel Ball
Seals Type
Open
Certificate
ISO9001:2008
Number of Row
Double
Dimensions
d-Bore Diameter
12mm
D-Outer Diameter
26mm
Precision Rating
P0 P2 P4 P5 P6
Clearance
C2 C3 C4 C5
H-Total Width
9mm
Basic Load Ratings
Cr Dynamic Load Rating
10400N
C0r Static Load Rating
15400N
Product Feature
1. Thrust ball bearing Equipped with one-way,two-way two types
2. In order to allow installation error, either one-way or two-way, can choose spherical self-aligning spherical seat cushion type or with spherical seat type.
3. High quality steel - used can extend bearing life highest 80% super clean steel
4. The height of the grease technology -lubricants technology can make the life of the grease to extend and improve the performance of the bearing
5. The high grade ball - quiet and smooth when high-speed rotation
6. Use of options in the ring, can allow installation error.
Our Service
1.Customers' requirements are fully understood with abundant records made so that and customers' time can be saved.
2.We pay close attention to customers' drawings, submit them to our technicians and make correct replies.
3.We hunt for the most economical delivery service to reduce customers' cost.
4.We report the condition of production at any time to the customers.
5.After sale service is reliable and customers' feedbacks are considered seriously.
6.The latest market trend is always provided for our customers.
Application Field
1.Thrust Ball Bearings should use close to the radial bearing, in order to prevent the effect of shafts deflection.
2.When using big size ball bearings on a horizontal shaft, preload should be implemented to prevent the clearance between housing washer and balls.
3.Under the inevitable circumstances of shaft deflection and misalignment, aligning seat washer should be applied.
|
