50m HDMI Extender with loop-out 3D 1080p@60Hz
| Price: | US$ 40 / Piece |
|---|---|
| Minimum Order: | One |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen |
Product Details
| Model No.: | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: | The HDMI Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 50 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

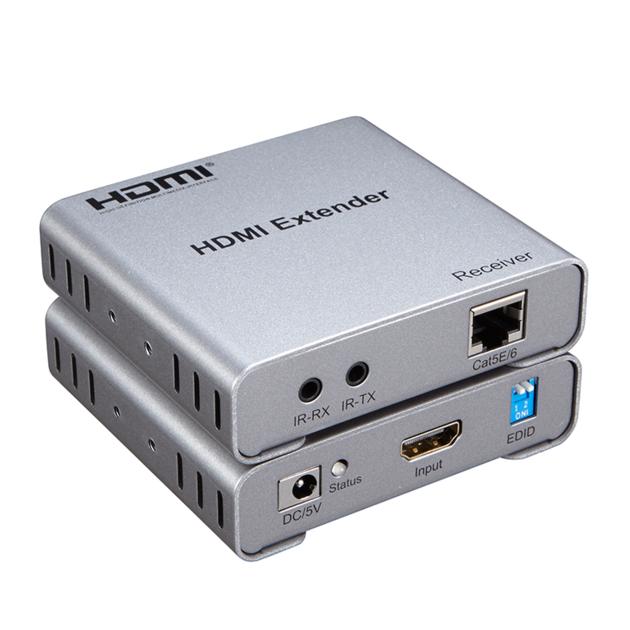

50m HDMI Extender with loop-out 3D 1080p@60Hz
The HDMI Extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 50 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
FEATURES:
Support HDMI 1.4a
Support 3D
Support highest video resolution 1080p/60Hz
Support Bi-directional IR Control
Support 1.49Gbps data rate and tmds clock up to 148.5MHz
Support 8 bit deep color
The transmitter support HDMI loop-out function.
The transmitter support EDID management.
Support AWG26 HDMI standard cable, HDMI input up to 10 metres, HDMI output up to 10 metres

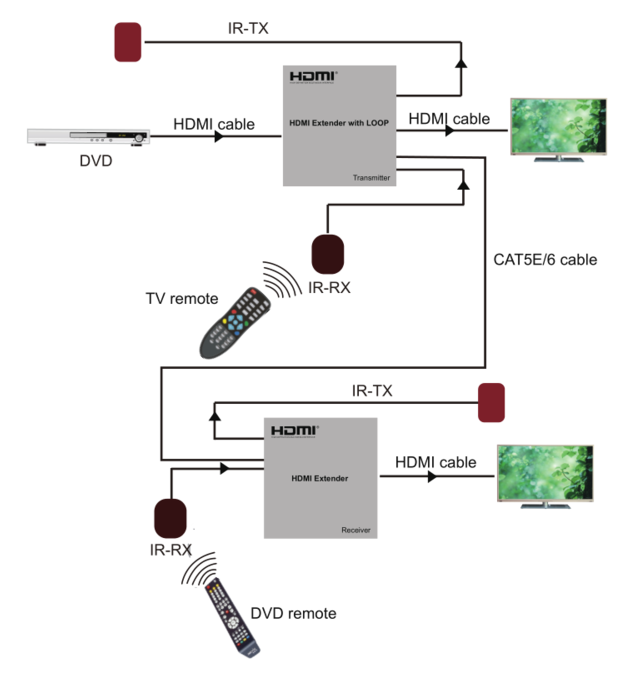

Double legged transmission: By using single cat-5e or cat-6(recommended) cable to connect the transmitter and receiver, it can extend the distance up to 50 meters between TX and RX, the quality of the cable will influence the transmission distance.
Need DC5V/1A power supply
lEDID instruction:
Dial up “1 2” Function
0 0 2D 2 sound channel
0 1 3D 2 sound channel
1 0 2D 5.1 sound channel
1 1 2D 7.1 sound channel
“0”show to dial“up”,“1”show to dial“down”
Specification:
Length of CAT-6/CAT-5E cable between Rx and TX: Up to 50 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format: DTS/Dolby/PCM
Support audio input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max transmission bandwidth: 148.5MHz
Max baud rate: 1.49Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Input HDMI cable distance: ≤10m AWG26 HDMI standard cable
Output HDMI cable distance: ≤10m AWG26 HDMI standard cable
TX Max working current: 650mA
RX Max working current: 300mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55℃)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 81x87.5x23.5 (mm)
TX Weight: 210g
RX Weight: 200g
The Package includes:
1. TX Extender :1pc RX Extender:1 pc
2. IR RX Cable: 2 pcs IR TX Cable: 2pcs
3. 5V DC Power adapter
4. User Manual
|
