500L micro brewery equipment beer brewing system beer equipment

Fermentation systeme is designed for beer fermenting and storage, cooling, fermentation unit is mainly including beer fermenter, yeast propagation system, that’s a important part in whole brewery.

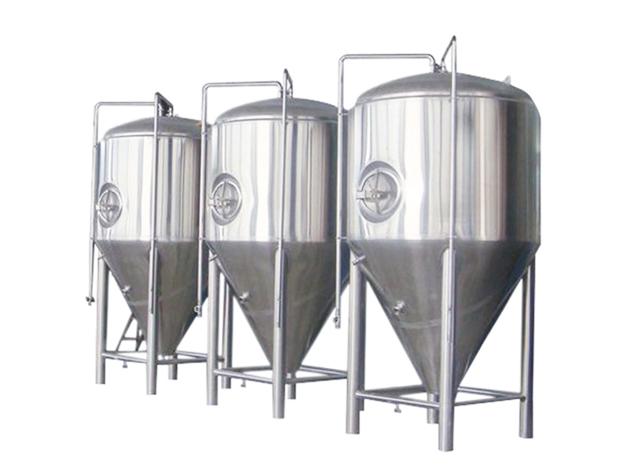

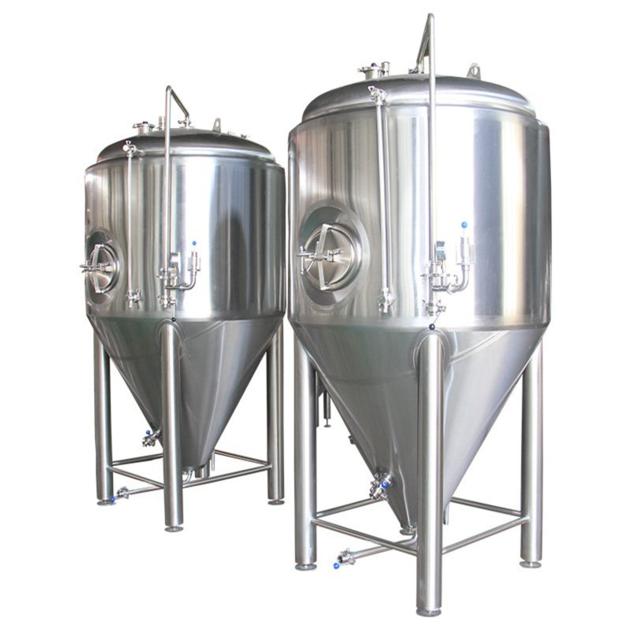

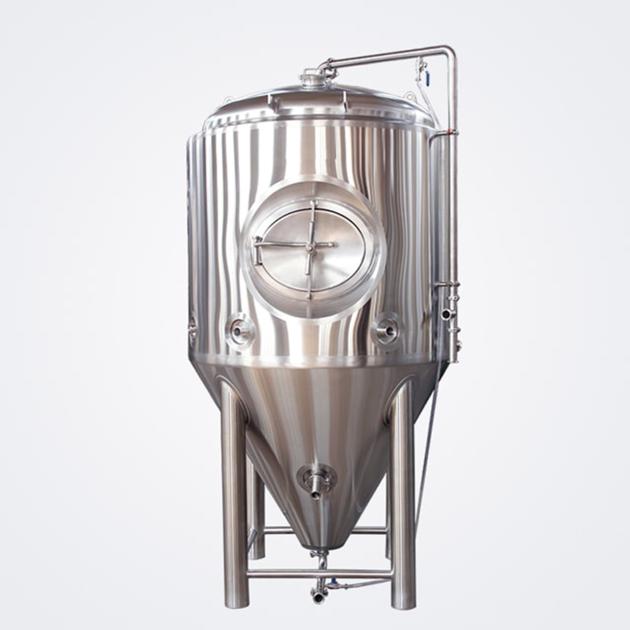

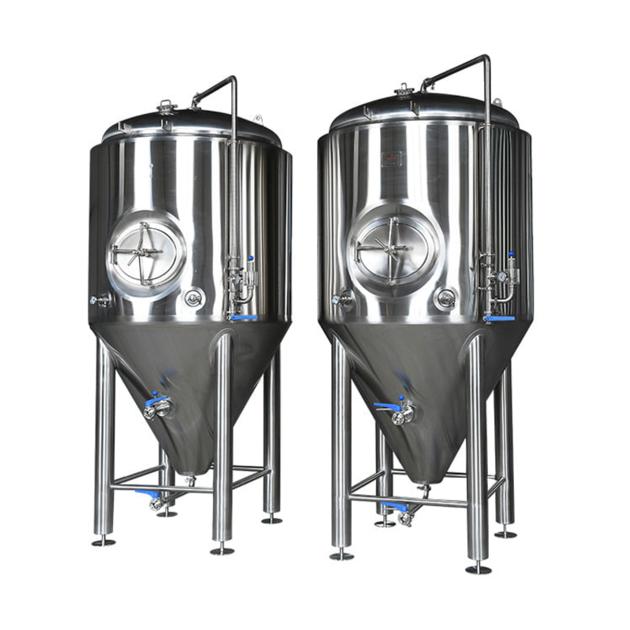

Alstonbrew has designed different size fermenters according customer’s request. All tanks are made by sanitary SS304 material, which meet domestic and international food safety and hygiene standard. They are cylindrical cone bottom tank, the cone is 60-72degree for exhaust the yeast easier. The external are made by 2B stainless steel drawing board, connected by welding. The internal pickling passivation treatment, and equiped with 80mm polyurethane insulation.
The tanks with dimple cooling jacketon cone and cylinder, they are cooled by glycol water
or alcohol water.
Also the glycol inlet is seperated control according to volume of tank.

Type: Double Sayer Conical Tank, Single Wall Conical Tank.
Volume: 1HL-300HL, 1BBL-300BBL. (Support Customized).

Features
1.Safety:
All tank fabrication procedures follow a strict quality control program.
Control panel lockout switches for brewer safety standard item on systems..
Brewhouse vessel orientation designed to prevent boil over danger to brewer.
Overflow tube on all hot and cold liquor tanks.

2.Flexibility
Design and customize equipment to meet individual customer’s site and capacity requirements.
Range of brewing options including half or double batches, high gravity beers, infusion, temperature profile and decoction brewing.
Kettle heating options including electric, direct fire or steam, depending on site and local utility costs.
Top or side manways (with hop dosing port) on cellar tanks.

3.Easy to installation and use
Fast installation due to precision pre-fitted piping at factory and quick on-site reassembly time.
Adjustable legs on vessels for ease of levelling and final placement.
The systems are designed by brewers and engineers providing a simple design that’s easy to use, safe and highly efficient.
Simple and easy-to-operate brewing pipeline, clamp or round thread connection, no dead corners, convenient and practical;

4.Durablity
High-quality selection of accessores equipment for improved long-term system performance and low maintenance costs.
Industry-leading 5 year warranty on all fabricated vessels for long-term hassle-free operation.
Stainless steel work platform for integrity, no rusting and long life.
Tanks are tested prior to shipment to avoid on-site repairs, guarantee uninterrupted startup and assured vessel performance.

Standard Configurations&Technical Characteristics

Total volume:25-30% free space; Effective volume: as request.
All AISI-304 Stainless Steel or 316 Stainless Steel Construction
Jacketed & Insulated
Dual Zone Dimple Cooling Jacket
Dish Top & 60® Conical Bottom
4 Stainless Steel Legs with Leveling Ports

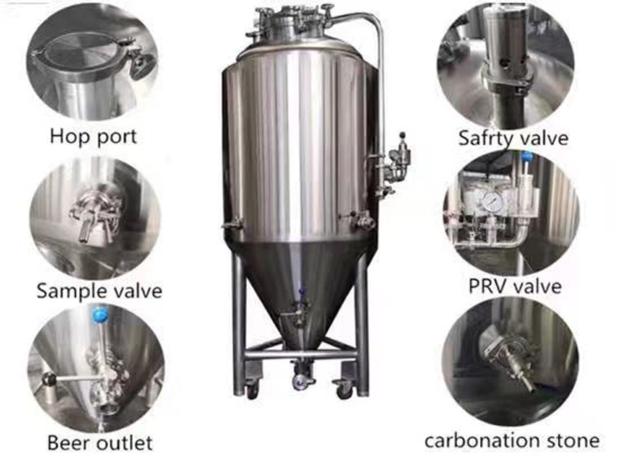

Fermenter Includes:
Top Manway or Side Shadow less Manway
Racking Port with Tri-Clover Butterfly Valve
Discharge Port with Tri-Clover Butterfly Valve
2 Tri-Clover Outlets with Butterfly Valves
CIP Arm and Spray Ball
Sample Valve
Pressure Gauge
Safety Valve
Thermowell

Specifications:
Working Capacity: 1HL-300HL, 1BBL-300BBL. (Support Customized).
Inner Diameter: Requirement.
PU Insulation: 60-100mm
Outside Diameter: Requirement.
Thickness: Inner Shell: 3 mm, Dimple Jacket: 1.5 mm, Cladding: 2 mm.
(Will designed with the tank volume)

*All the items listed above could be custom made upon your particular needs.
For more details, please feel free to contact us by email or by the inquiry sheet.
