500L Stainless Steel Pub Brewing Equipment with Ce Certificate

1. Mill System

Capacity: 300kg/h

Description: CE or UL listed Motor, Double roller, distance adjustable, alloy or stainelss steel 304 material.

Optional: Flexible Auger.

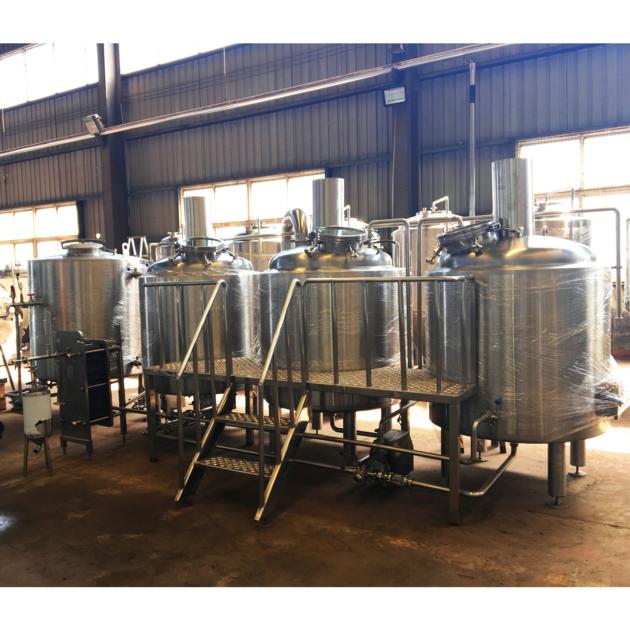

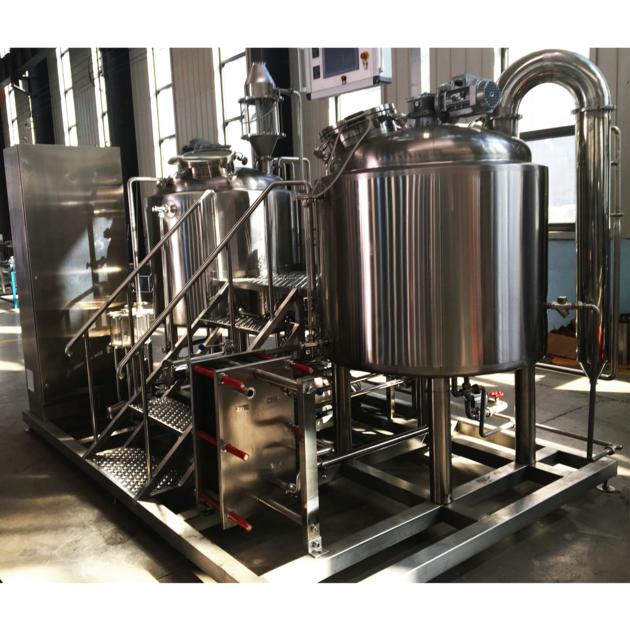

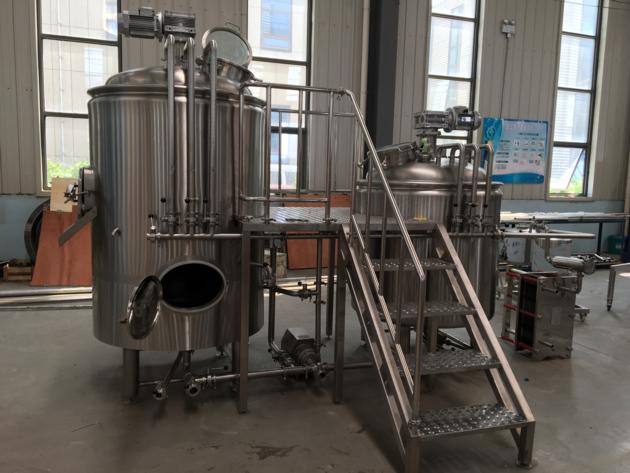

2.Brewhouse system:

• Steam heated, electrical heated or natural gas
• Dished top and sloped bottom, 100% TIG welding with pure argon gas shield.

• 500L Net Capacity, 35% head space

• 1000L Hot water tank for option

• Lauter tun with milled false bottom, VFD motor, Sparging and CIP pipe. Level gauge,Side mounted grain outdoor with grain chute.

• Mash tun with electric heated or steam jacket. VFD motor for option.Level gauge

• 6 square meter Plate heat exchanger

• Sanitary Centrifugal pump

• Digital control panel or PLC control system

• SUS 304 tank, pipe, valves, platform and integrated stairs etc.

• Stringent tank leakage test by water and pressured gas.

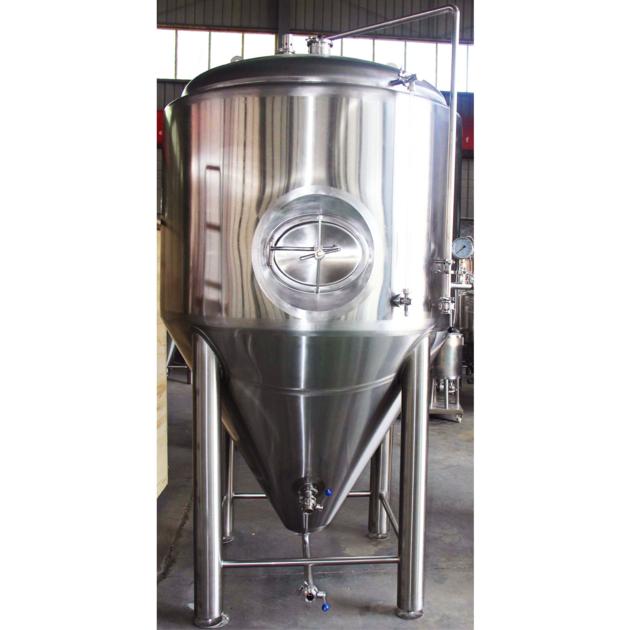

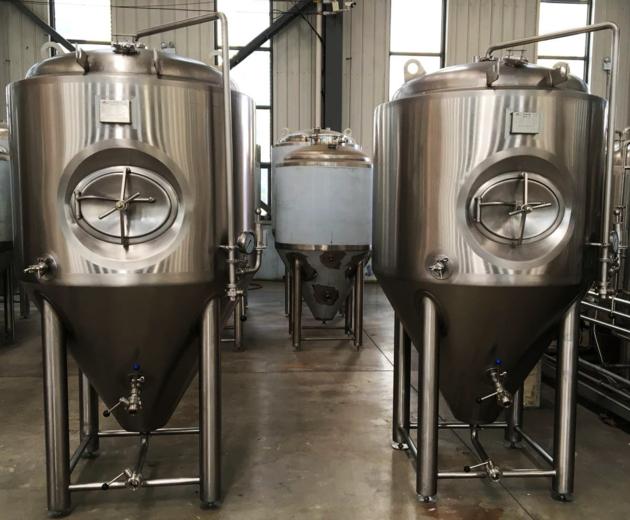

3. Fermentation tank:

• 500l Net capacity, 25% head space

• Diameter 1060mm*Height 2100mm.

• SUS 304 material insulated tank.

• 100% TIG welding with pure argon gas.

• 0.3 Mpa test pressure. 0.2 Mpa working pressure.

• Dimple cooling jacket, side and cone of the tank. NPT connection.

• Top relief valve(PVRV), Top dry hopping port.

• Sanitary side manway (top for option).

• Sample valve. Pressure valve, Co2 relief valve, DIN/TC racking arm.

• 60 degree cone.carbonation stone & Level tube for choice, CIP pipe

• 24V solenoid valve.Dial Thermometer. RTD sensor.

4. All other relative support system such as Steam boiler, Cooling system, Control system, Brite tank, Bottle Filling line, Canning line , Beer keg can be provided.
