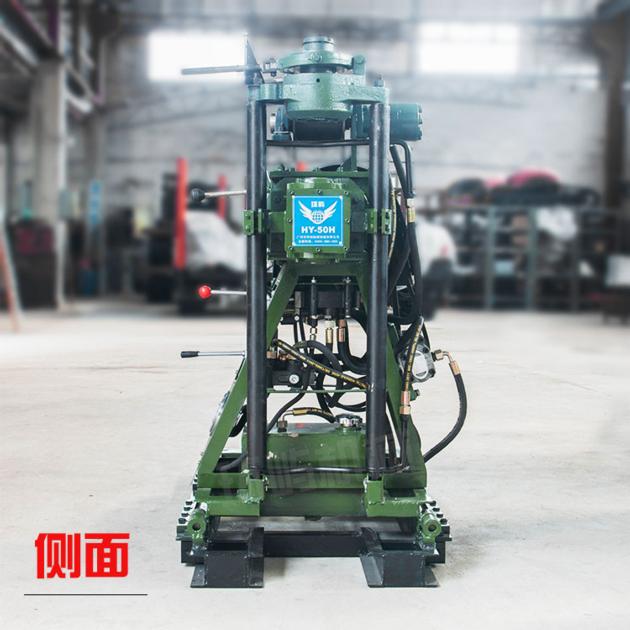

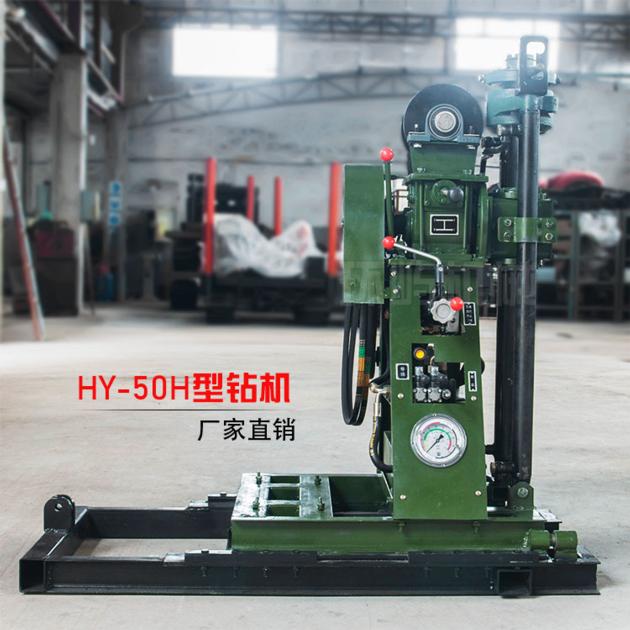

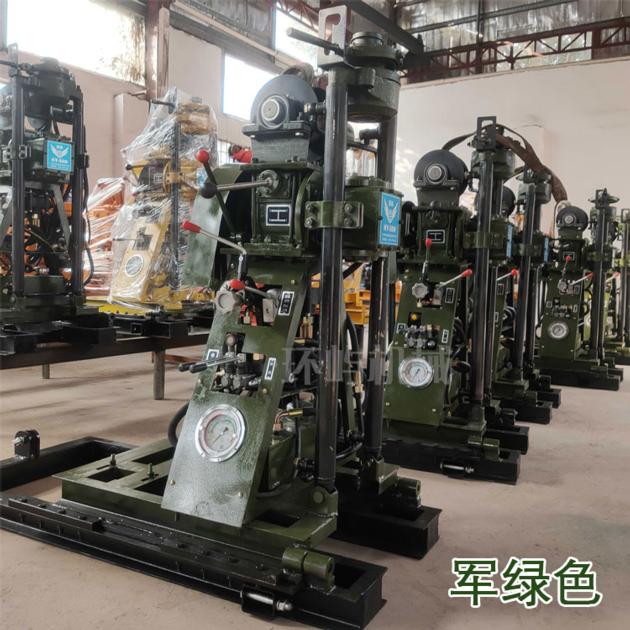

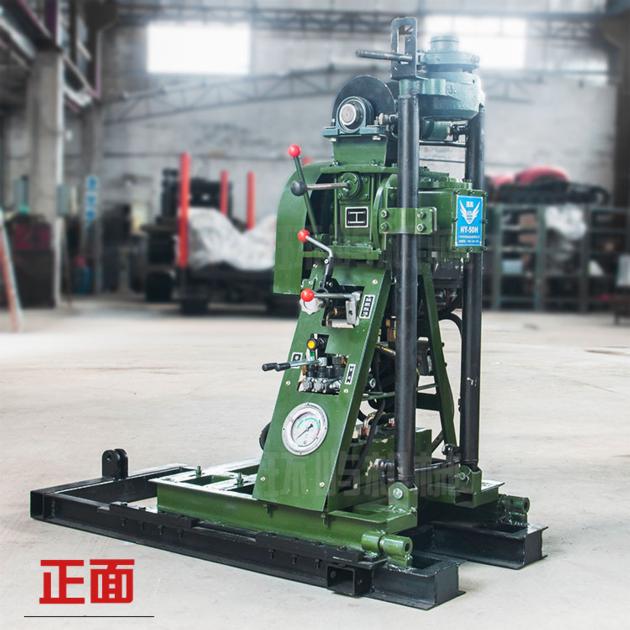

50 Metres Small Domestic Hydraulic Water Well Drilling Rig

With the HY-50H drilling rig, the hoisting force is increased to 850 kg, which is a greater pulling force.

[50 machine high configuration parameters]
Drill rod length: 1 meter, 2 meters, 3 meters
Cylinder stroke: 600mm
Moving machine stroke: 200mm
Drill tower height: 4.5 meters
Diesel engine power: 8 horses
Rock core: 75-110mm (soil layer can be larger)
Applicable to: household well drilling, geological survey, drilling, grouting and other engineering projects.


Additional: the crawler chassis walking function can be added as needed, which is convenient for moving and reducing labor costs
1. With hydraulic automatic feed mechanism, improve drilling efficiency and reduce physical labor of workers.

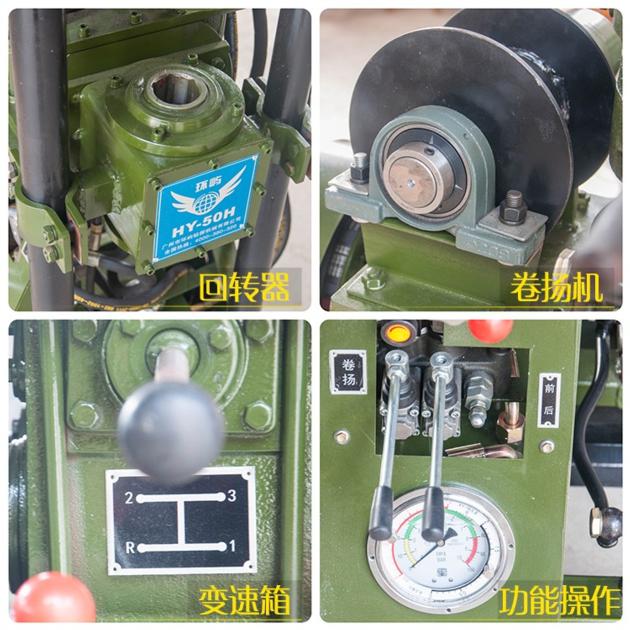

2. The ball clamp clamping mechanism is used instead of the chuck, and the lever can be reversed without stopping the machine. The operation is convenient, safe and reliable.

For the family of water well or core drilling rig

Technological Data of Drilling Rigs (HuanYu)
Model HY-50H
Dilling depth(m) 50
Drilling rod diameter(mm) φ42,φ50
Head angle range 75~90®
Spindle speed(dmin) 142,285,570 r/min
Spindle stroke(mm) 1000
Steel wire rope diameter(mm) 10#
Weight(engine not included)(kg) 350 kg
Drill size(L x W x H)(mm) 1400x600x1350
Diesel engine R180 (5.8KW)
