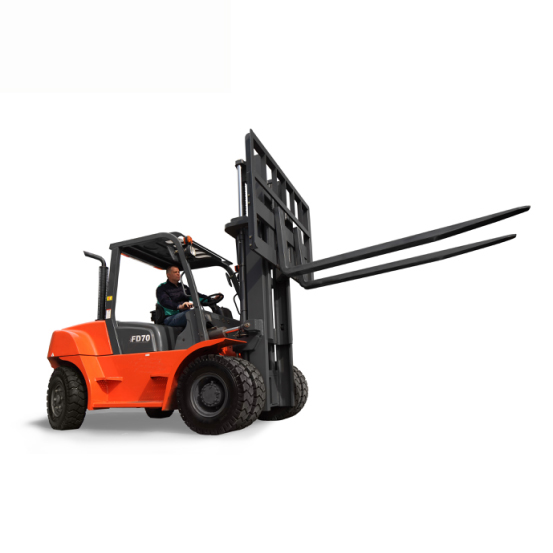

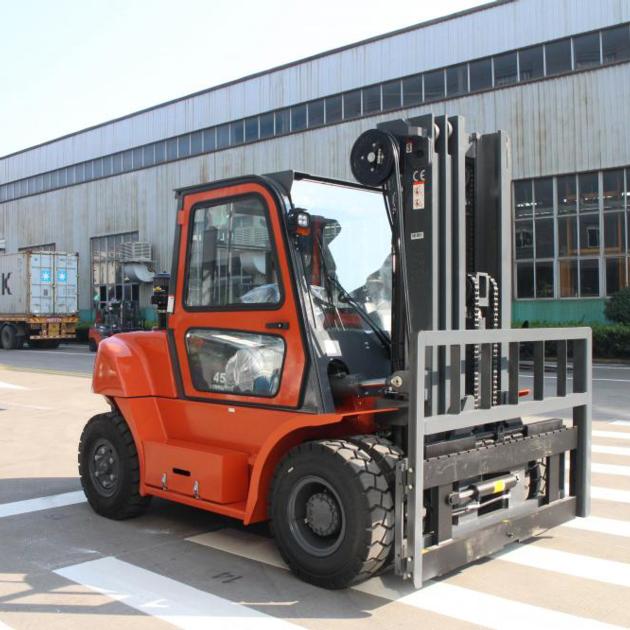

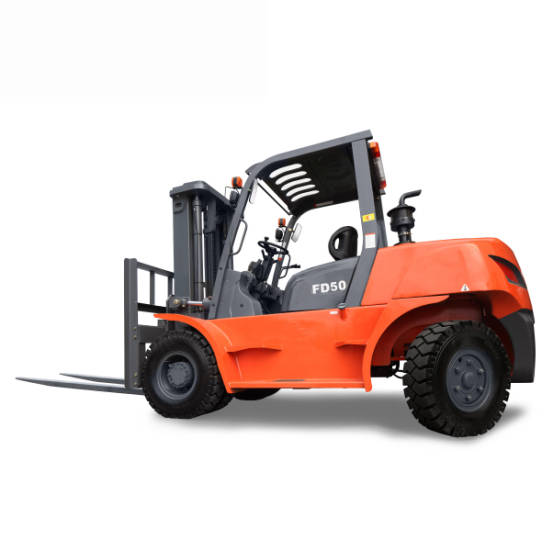

5 tons diesel forklift trucks with CE
| Price: | US$ 10000 |
|---|---|
| Minimum Order: | 1set |
| Payment Terms: | 30% TT as deposit, balanced before shippment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | FD50 | Brand Name: | Saferlifts |
|---|
| Certification: | CE SGS |
|---|---|
| Specification: |
Basic Info Model NO.: FD50 Power: Diesel Engine Load center: 500mm Mast: 3-6m Tire: Pneumatic/Solid Trademark: Saferlifts Origin: Shanghai Type: Diesel Forklift Load Capacity: 5T - 10T Lift height: 3000mm-6000mm Engine: Imported/Chinese Engine Color: Orange/Green/Yellow/OEM Color Specification: CE/SGS HS Code: 84272090 Product Description Customer Question & Answer Capacity: 5000KG Engine: ISUZU 6BG1 Transmission: Automatic Tyre: Pneumatic Wide-view mast, solid overhead guard, Ergonomic adjustable steering wheel and seat. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: | 5000kg |

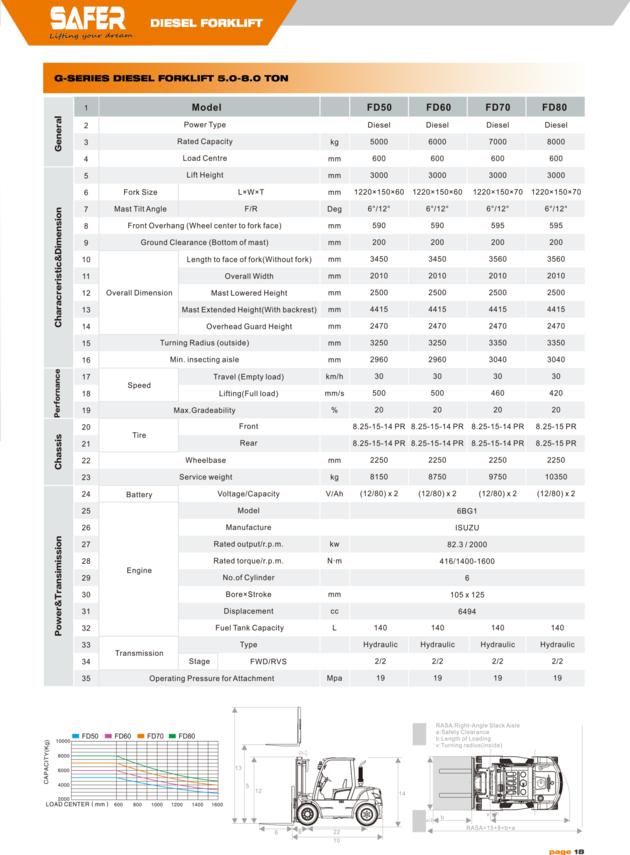

Product Description
General 1 Model FD50 2 Power Type Diesel
3 Rated Capacity kg 5000
4 Load Centre mm 600
Characteristic&Dimension 5 Lift Height mm 3000
6 Free lift height mm 200
7 Fork Size L×W×T mm 1220×150×55
8 Mast Tilt Angle F/R Deg 6®/12®
9 Fork Overhang (Wheel center to fork face) mm 590
10 Rear overhang mm 600
11 Ground ClearanceBottom of mast mm 200
12 Overall Dimension Length to face of fork(Without fork) mm 3440
13 Overall Width mm 1995
14 Mast Lowered Height mm 2500
15 Mast Extended Height(With backrest) mm 4420
16 Overhead Guard Height mm 2450
17 Turning Radius (outside) mm 3250
18 Min. right angle asisle width mm 2980
Performance 19 Speed Travel (No load) km/h 30
20 Lifting (Full load) mm/s 500
21 Lowering(Full load) mm/s 500
22 Max.Drawbar Pull(Full load) kn 54
23 Max.Gradeability (No load/Full load) % 35/19
Chassis 24 Tyre Front mm 8.25-15-14PR
25 Rear mm 8.25-15-14PR
26 Tread Front mm 1470
27 Rear mm 1700
28 Wheelbase mm 2250
29 Self weight kg 7980
Power&Transmission 30 Battery Voltage/Capacity V/Ah 24/105
31 Engine Model 6BG1
32 Manufacture ISUZU
33 Rated output/r.p.m. kw 82.3/2000
34 Rated torque/r.p.m. N@m 416/1400-1600
35 No.of Cylinder 6
36 Bore×Stroke L 105×125
37 Displacement cc 6494
38 Fuel Tank Capacity L 140
39 Transmission Type Powershift
40 Stage FWD/RVS 2/2
|
