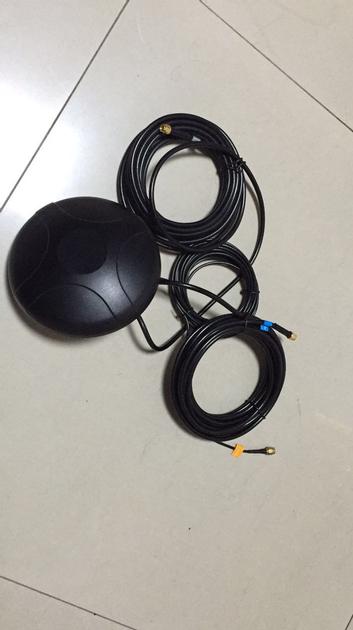

5 in 1 combination outdoor indoor screw antenna
| Price: | US$ 25 / Piece |
|---|---|
| Minimum Order: | 2 |
| Payment Terms: | T/T,PAYPAL,WESTERN UNION |
| Port of Export: |
Product Details
| Model No.: | AC-GPS/LTE2/WIFI2-BQX | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
It combines the highest possible efficiency and peak gain in GPS/2G/3G/4G in a low profile compact format for mounting via high quality first tier .For installation combines 3M adhesive foam,screw mount together.
|
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Electrical
GPS part:
Operating Frequency 1575.42MHz
Band width 5 MHz
Gain 282dB Typical
V.S.W.R ＜2.0
Polarization RHCP
Radiation Omni
Maximum Input Power 50W
Impedance 50Ώ
Noise Figure 1.5dB
DC Voltage 2.2-5.0V
DC current 5-15mA
Antenna Radome Material ABS
LTE Part:
Frequency range 698-960/1710-2700MHZ.
VSWR 2.0:1
Gain 3dBi*2
Polarization Linear
Impedance 50Ω
WIFI Part:
Frequency range 2.4/5GHZ
V.S.W.R 2.5
Gain 3dBi*2
Polarization Linear
Impendance 50Ω
Mechanical
Mounting Method Screw
Housing Black
Cable RG316/RG178/RG174
Length 3M(can be customization)*5
Connector SMA Male(can be customization)
Operating Temperature -40¬C~+85¬C
Humidity 55%-75%RH
Waterproof IP67
Humidity 95%~100%RH
Antenna Dimension Ф143.6×65 mm
Weight 1.2KG
|
