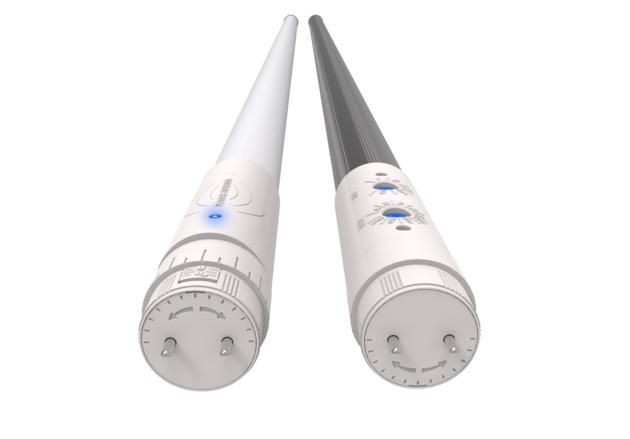

5.8G Microwave sensor led t8 tube for parking lighting
| Price: | Contact for latest price |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | T/T |
| Port of Export: | Shenzhen port |
Product Details
| Model No.: | KTL-T818W1200LMW | Brand Name: | KENKIO |
|---|
| Certification: | CE ROHS |
|---|---|
| Specification: |

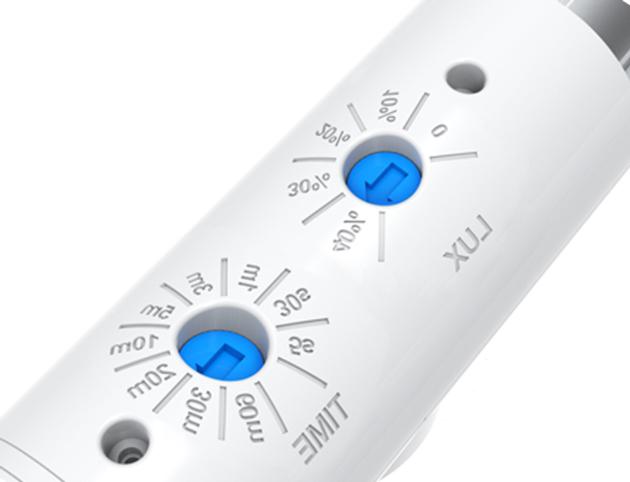

Selling Point: 1) Own two Patents, Own Design 2) Two Adjuster: one for delaying time, other for lux, no need to change Control Board, no need to change the software to avoid error from software,production, clients also can change it by themself in the future by manual rotation. 3) Our delaying time is with 9 levels (from 5 seconds to 60 miniutes), but the max of normal radar tube is 2 miniutes, it is limit 4) our end cap can be rotated 180 degree, it is more easy to install different location to detect objective 5) our LED Tube already meet the standard of TUV. specially for car parking area, garage, corridor, staircase, warehouse, factory area Two Adjusters as below 1. TIME: When user is away from detection zone, light tube will stay on based on the set time. (5S, 30S, 1M, 3M, 5M, 10M, 20M, 30M, 60M). 2. LUX: When user is away from detection zone, the power consumption of the tube will be reduced to the set amount. (0, 10%, 20%, 30%, 40%) LED Tube end cap is rotatable 90 clockwise and counter clockwise. This can accurately position the tube to the direction of the sensing and lighting area. |
Packaging & Delivery
| Packaging: | exporting packing |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: | 2000PCS PER DAY |
Product Description
Model: KTL-T818W1200LMW Material :Aluminum+PC cover
Color Temperature(K):3000K-3500K,4000K-4500K,5500K-6000K
Rated Voltage:AC100-240V ,50/60HZ
IP Rating:IP50
CRI:≥80
Power Factor:>0.9
LED: LUMENMAX
Power: 18W
Length: 1200mm
Luminous Flux: 1800lm
Luminous Efficiency: 100lm/w (125lm/w is optional)
LED Driver: Isolated Driver with Rubycon Capacitor
Optional length: 600mm (10w), 900mm(15w), 1500mm (23w)
Why our Microwave Sensor can pass TUV? What kind of Microwave sensor we are using?
1. All our PCB material of Mircrowave sensor module is imported from USA Rogers Military Grade, produced by China Listed Company, Board itself meet TUV standard.
2. All of Our Components is from leading company of Infineon , imported from Hongkong.
3. Every module is tested by strictly process for many times. to confirm frequency at 5.8G (¯75m international free open frequency), it match TUV frequency. 2.4G and 3.3G is Civil Grade, only 5.8G wave can pass TUV, 5.8G is Industrial Grade
4. We adopt counting amplifier with low power consumption of TI.ON etc, using Industrial Grade MCU of Microchip to do signal processing. signal processing and relative is independent R & D. with ten years field experience, some of technology is leading position in China.
|
