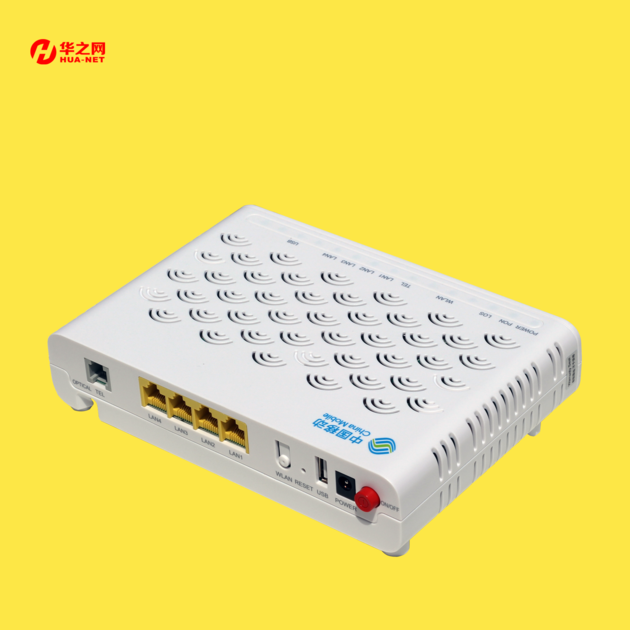

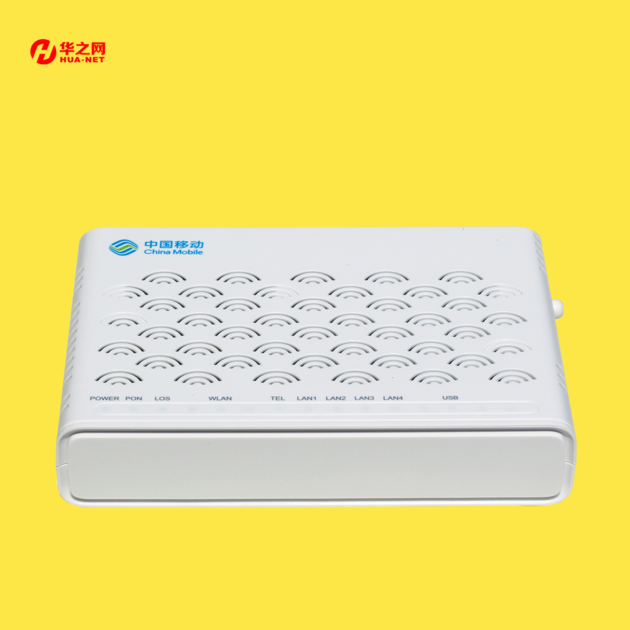

4Ports wifi pots USB English version ftth F623 original zte gpon onu

Product Specification
Products Name Gepon onu
ITEM SPECIFICATION
Pon TYPE GPON ONT(wifi+usb+pots)
Fuction optional FE/GE Lan port ,WIFI/ FXS/POTS/,CATV/RF..Ect..
Lan PORT 10/100/1000base-tx; Interface: RJ45
PORTs PON: SC/PC
ETHERNET

•10/100/1000M auto-negotiation
•Full/half duplex mode
•RJ45 connector
•Auto MDI/MDI-X
•100m distance
Business •Layer 2 wire speed switching
•Support VLAN TAG/UNTAG,VLAN conversion
•Support Port-based speed limitation
•Support Priority classification
•Support storm control of broadcast
•Support RSTP
Network
Management

•Support IEEE802.3 QAM, ONU can be remotely managed by OLT
•Support Remote management through SNMP and Telnet
•Support Be Remote updated by OLT
Physical

Dimension: 130mm X 100mm X 37mm;
Weight: 250g
Temperature: 0~60®C; Relative Humidity: 10~90%
Power Adapter Input: AC 110V~ AC 265V; Output: DC12V/0.5A
Consumption <5W

Product Features

Conform to IEEE802.3ah standard
Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
Support frame filtering and suppression
Support standard 802.1Q Vlan function, support VLAN conversion
Support 4094 VLANs (802.1Q)
Support Dynamic Bandwidth Allocation (DBA) function
Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc.
Single ONU supports up to 8 LLID
Support IGMP Snooping
Support Ethernet port ratelimit loop detection
Support power failure alarm
Port Features

1 PON ports (1.25G)
1 10/100/1000M port
Physical Features
Power supply: 12VDC
Power consumption: 6W
Temperature
Working temperature:0~55®C
Storage temperature: -30~60®C
Relative humidity: 10~90% (non-condensing)
