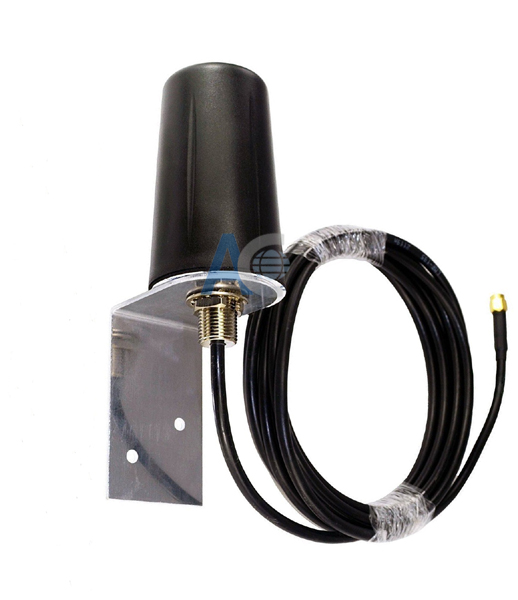

4G LTE Wall Mount Terminal 5dBi Antenna with 3M cable
| Price: | US$ 5 / Piece |
|---|---|
| Minimum Order: | 2PCS |
| Payment Terms: | T/T,WU,PAYPAL |
| Port of Export: |
Product Details
| Model No.: | AC-Q7027-DLZJ | Brand Name: |
|---|
| Certification: | |
|---|---|
| Specification: |
The AC-Q7027-DLZJ antenna delivers stable high omni-directional gain and across all 2G(GSM),3G and 4G(LTE),cellular bands from 700MHz to 2.7GHz.
This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 3G to 4G. Being Wall mount it is designed to be mounted on a wall plane for optimal performance |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Electrical
Frequency Range 698-960/1710-2700MHz
Band width 262/990MHz
Gain 1 4dBi/698-960MHz
Gain 2 5.2dBi/1710-2170MHz,
Gain 3 4dBi/2400-2700MHz
V.S.W.R ≤2.0
Radiation Omni-Direction
Polarization Vertical
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male
Cable Type LMR195
Cable Length 3M
Antenna Radome Material ABS
Mount way Wall Mount
Mechanical
Dimensions Φ48×82mm
Weight 220g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES
|
