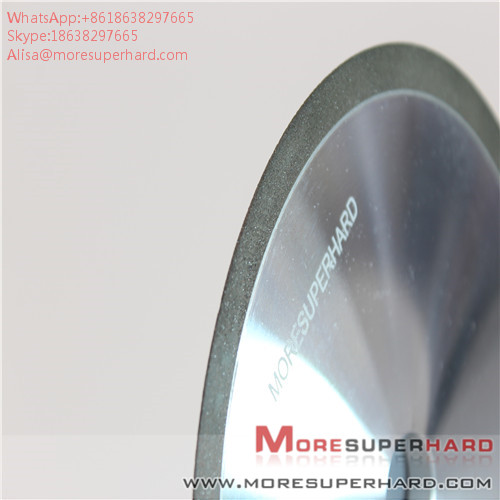

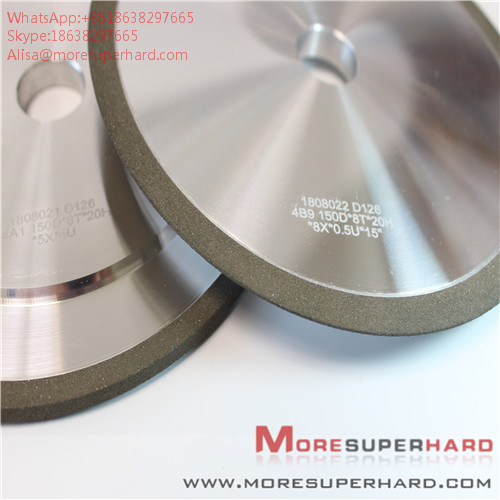

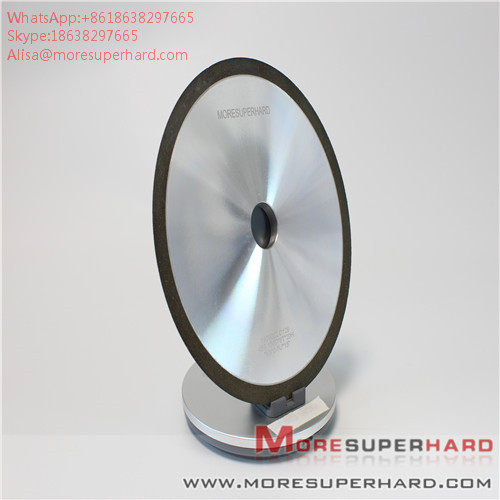

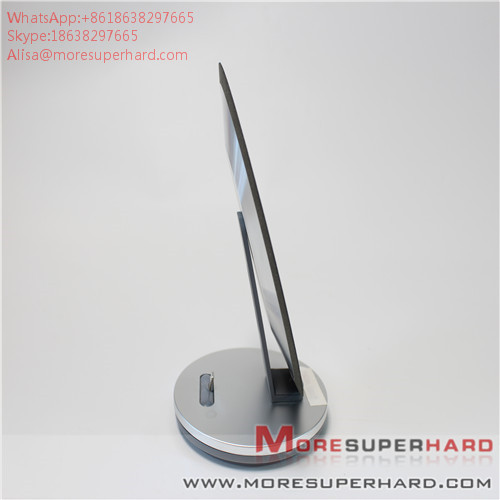

4B9 Resin bonded superhard materials can be used to process customized diamond grinding wheels

Introduction to resin bond：
Resin wheel is a wheel made of resin, such as phenolic, epoxy, polyurethane, polyvinyl alcohol, etc.Resin grinding wheel with high intensity, can join the strengthen of fibres and reinforced in grinding wheel, such as cutting, grinding, most of our resin grinding wheel is not waterproof, not can use the grinding grinding fluid, of course, some need to join in grinding fluid resin grinding wheel, such as epoxy resin, resin grinding wheel grinding finish good, not easy to burn workpiece, resin grinding wheel used in cutting, double end face, heavy duty grinding wheel, polishing wheel, etc, the strength of resin bonded grinding wheel was lower than those of ceramic bond and metal bond and.


Feature
1:Name:4B9 Resin diamond grinding wheel
2:Type Code: 4B9
3:Material: Diamond, CBN
4:Size: D. 25-500mm; T. 5-40mm; H. 10-127mm.
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature
1:Easy to dress
2:Good self-sharpening
3:High finishing of work piece
4:Specially for precision grinding and polishing


Resin bond diamond grinding wheel model:
1: parallel grinding wheel
2: parallel arc grinding wheel
3: double-sided concave grinding wheel
4: double bevelled grinding wheel
5: bowl wheel


Diamond wheel structure
1. The structure of diamond grinding wheel is different from that of ordinary abrasive grinding wheel, which is generally composed of diamond abrasive layer, transition layer and matrix.
2. The working layer, also known as the diamond layer, is composed of abrasive, binders and fillers and is the working part of the grinding wheel.The transition layer, also known as the non-diamond layer, is composed of binders, metal powders and fillers, which is the part of the diamond layer firmly connected to the matrix.
3. The base body is used to carry the abrasive layer, and is firmly clamped on the spindle of the grinder with flange plate when using.The common metal bond products are made of steel and alloy steel powder.The resin bond is made of aluminum alloy and wood.It is made of aluminum, steel or wood, which supports the working layer and clamps the abrasive tool.

Classification of diamond grinding wheel
1. The diamond grinding wheel can be divided into: resin bond diamond grinding wheel;Ceramic bonded diamond grinding wheel;Metal bonded diamond grinding wheel (bronze bonded diamond grinding wheel)
2. The diamond grinding wheel can be divided into: sintered diamond grinding wheel (resin bond diamond grinding wheel;Ceramic bonded diamond grinding wheel;Metal bonded diamond grinding wheel);Electroplated diamond grinding wheel;Braze diamond grinding wheel.
3. The diamond grinding wheel can be divided into: diamond grinding wheel for diamond grinding;Diamond grinding wheel for grinding carbide (diamond cutter grinding wheel);Diamond wheel for grinding diamond composite sheet;Diamond grinding wheel used by centerless grinder without core;Diamond wheel for grinding ceramic products;Diamond grinding wheel (also known as diamond cutting piece) used for cutting;Diamond saw blades.
4. The diamond grinding wheel can be divided into parallel grinding wheel according to its appearance or shape;Cylindrical grinding wheel;Cup wheel;Cup wheel;Disc wheel;Edge grinding wheel;Mill, etc.


Packaging & Shipping
Packing Carton, plastic bag,or as your request
Shipping  we use DHL,UPS,FEDEX,ect.to ship the goods,or according to the customer's requirement
Delivery time about3-7days, for special time according to your quantity

Our Services
1. Quick Response: Your inquiry will be replied within 24 hours.
2. Competitive Price : Directly from factory to save your money.
3. after-sales warranty : Once there is problem after you received products, you can contact us in time. We will resolve it in short time.
4. Flexibility: Small orders are acceptable for quick delivery and to help you reduce stock cost.
5. OEM service: Custom fabrication according to your drawings ,samples or designs.


FAQ:
Q1. Can negotiate the price?
A: yes, you can. We will give some discount according to your quantity.
Q2. How can now my order’s production progress?
A: we will keep closely track the production and shipment progress. And we will inform you with the newest progress about producing and shipping.
Q3. How can you ensure your quality?
A: We have pass the ISO 9001:2008. If there is any problem with our products, please send me the detailed picture of the problem, once we verify it, we will change the products for you within 30 days.
Q4: When I contact you is suitable?
You can contact Us at any time, we promise that we will reply you within 12 hours.
A:So, please contact me for more information about our product, service and related issues.


Why choose our product
More SuperHard Products Co., Ltd is dedicated to finding solutions that help our clients in all markets succeed. More SuperHard has been manufacturing high-quality, competitively priced superabrasive diamond and cbn tools that are designed to perform in a wide range of industrial ,such as pcd tools grinding, natural diamond polishing, auto parts processing , thermal spray coated industry, optical glass, semicon and led industry, woodworking tool , cnc tool grinding and roll machining ,others ultral precision industry.
The company production and sales of products covered vitrified bond tools, resin bond tools, metal bond tools, electroplated diamond/cbn tools, vaccum brazed products, cvd diamond tools, polycrystalline diamond (pcd) tools, cubic boron nitride (cbn) tools.our objective is to meet all the customers’ needs and help every customer achieve maximum benefits.  more brings in revenue for you, you win, we win!

More SuperHard supplies the wheels for several application mainly:
1.Carbide round tools on cnc machines : flute grinding, gash grinding, end facing, clearance angle and cylindrical grinding .
2. Insert grinding for machines such as: agathon, wendt, haas, waida and ewag.
3.Woodworking saw blade and tools .
4.Hss tools
5.Cutting wheels

Products Range:
1. vitrified bond/resin bond/Metal bond/Electroplated diamond grinding wheel & other diamond tools
2. PCD milling tools, PCD turning tools, PCD drilling tools, PCD engraving tools, PCD/pcbn inserts, PCD/pcbn cutting tools, PCD/pcbn grooving tools, CBN inserts
3. PCD/TSP diamond, CVD diamond tools, large size synthetic diamond, Natural diamond tools, diamond abrasive tools
4. diamond grinding&cutting discs, diamond cutting blade, diamond cup wheel, diamond dressers
5. Roller cutting tools, PDC cutters, PDC drill bits& PDC core bits
6. PCD tool grinder & PCD grinding machine

Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered

If you have any questions, please contact us
Whats App:+8618638297665
Skype:18638297665
*
Tel:18638297665
URL:*

To meet your requirements
In every way, we need the following information.
1. Shape and Dimension of the wheels
2. Grit size (Mesh, refer to Table#1)
3. Concentration
4. Bond (Resinoid, Vitrified, Metallic, Electroplated)
5. Quantity
