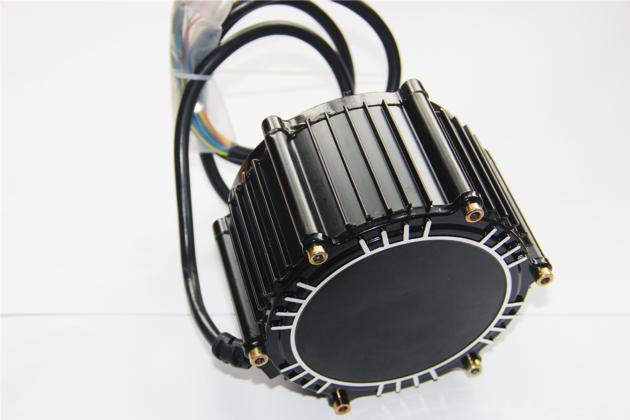

48v 500w 3000rpm Ebike motor BLDC motor brushless motor
| Price: | US$ 200 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, Western union |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | 120-12-30 | Brand Name: | SL |
|---|
| Certification: | CCC |
|---|---|
| Specification: |
Model NO. 120-12-30IPM Structure and Working Principle Brushless Certification ISO9001, CCC Rated Speed 3000rpm Rated Power 500W Voltage 48V Transport Package Carton Origin China |
Packaging & Delivery
| Packaging: | each in a box, 4pcs per carton |
|---|---|
| Delivery/Lead Time: | 10-15 days |
| Production Capacity: |
Product Description

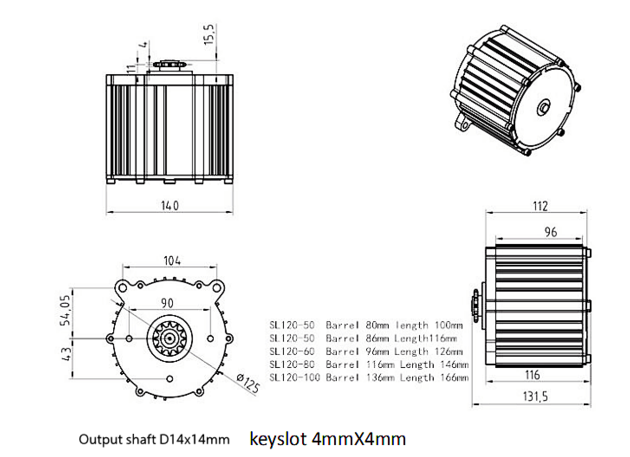

produces SL120 series BLDC motor ,The series motors are with Stator diameter 120mm , 12 slots ,Length 40mm 50mm 60mm 80mm 100mm , Lamination sheet material is 35WW270 , Thickness 0.35mm , has very good properties . Rotor with N40SH Magnet (Ni-Cu-Ni Coating) have good high temp properties , It is water -proof , less weight , small diameter , high output power , 120-12 series motor can be used in Electric Bike , E-Down Hill Bike , E-Mountain Bike , Electric motorcycle and E-trike, E trator , E lifter .
Voltage 48V
Rated power 500W
Maximum power 1270W
No-load speed 3000rpm
Maximum efficiency 90%
Maximum Torque 6.5Nm
Maximum current limit 50A
Phase current peak 100A
Magnet Steel height 30H
Magnet Steel Brand 38SH
Magnet pole pairs 5
Lead wire diameter 6M°
Position sensor Hall/ SENSORS
Temperature sensor KTY83-112/ 83-120/84-130
Slot pole 12S10P
we are specializing in producing BLDC motor for drones , E- Bike, Pedego bike, E-motorcycle, E-board , E go karts E-tools etc.
Products Range:
①DC Motors:36v/48v/60v/72v, rated power 500w 650w 1000w 1200w 2000w 5000w, rated speed:3000-5000rpm (We can produce BLDC motor as per your requirement ! )
②Surrun Motor
③QS Motor
④Stator Rotor
Our motor have exported to Switzerland, Italy,Franch,England etc. good feedback from the customers
|
