48v 21ah reention dorado battery 48v e bike reention dorado batterie 48 v 144 ah 505mm 48v reention

48v reention ebike battery 48v 21ah reention dorado battery 48v e bike reention dorado batterie 48 v 144 ah 505mm specification:

Model

Junda-J109

Chemistry

LiNiCoMnO2

Nominal Voltage

48V

Nominal Capacity

14ah 15.6ah 17.4ah 21ah

Weight

Approx 3.5KG/4.5Kg/5.5kg

Outer case style

Inner battery case

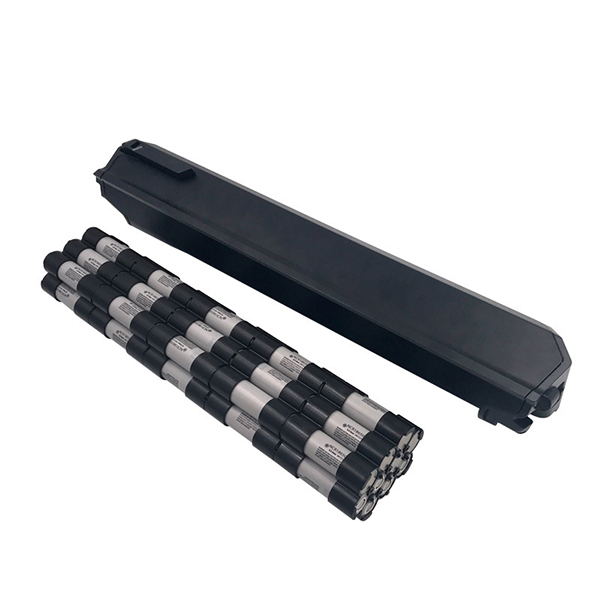

Dorado Mini L440 30pcs or L505 40pcs 18650 cell

Dorado Pro L505 50pcs or L440 40pcs 18650 cell

Dorado plus L440 52cpcs or L505 65pcs 18650 cell

Dorado Max L440 64pcs or L505 80pcs 18650 cell

Standard Charge

Constant Current 0.2C, Constant Voltage 54.6V 100mA Cut-off

Fast Charge

Constant Current 0.5CA, Constant Voltage 54.6V 100mA Cut-off

Standard Discharge

Constant Current 0.2C/End Voltage 39V

Cycle Life

500 times with DOD80%

Continuous Discharge Current

14A or customized

Peak discharge current

42A or customized

BMS function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance

Storage Temperature Range

Temperature: -10-40℃

Relative humidity:45-75%

Pressure: 86-106KPa

48v reention ebike battery 48v 21ah reention dorado battery 48v e bike reention dorado batterie 48 v 144 ah 505mm feature:

1 Long Battery Life

2 Easy to Use

3 Safety and Environmental Protection

4 High Discharge Efficiency

5 Over one year warranty

this dorado ebike battery case will fit for MS2 XC Sport R500, iGo M29r, Surface 604 Shred, Magnum Peak, E-Glide S/T, Addmotor m-560, Juiced Crossed Current S, Ride1Up 500 Series NCM Moscow,Milano,Venice,Aspen ebike.500 ride 1UP battery,arrow 10 A 1000, vtuvia bike and many other ebike model.

Warning :

1 do not short circuit postive and negative of the battery pack.

2 do not dismantle the battery without the professional ebike battery technicist ' s support.

3 do not place the battery under high tempearature,such as heat,sunshine,or close to fire.

4 do not place the battery in fuilds,such as water ,alkaline or slat water.

5 Please keep the battery cool and dry ,charge the battery for 2 hours every 3 months if stored for a long time.

6 Always charge the battery with the licensed charger for lithium ion or lithium polymer battery.Please never mix the other charger to charge them in case of battery issues.
