480MM DOE Stainless Steel Pleated Filter Cartridge For Oil Filtration

https://*/microporous-filter-components/sintering-titanium/480mm-doe-stainless-steel-pleated-filter.html

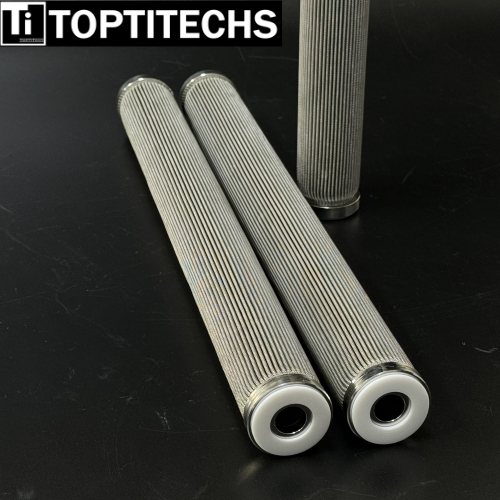

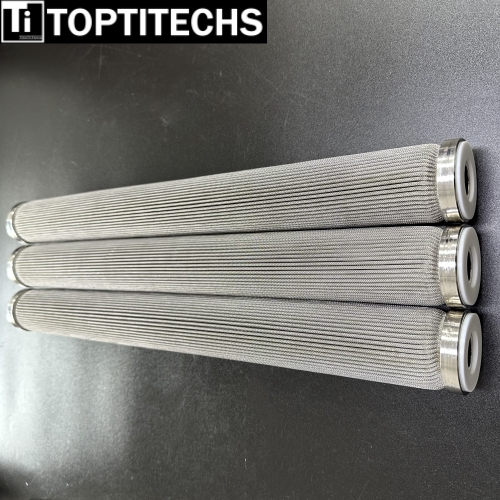

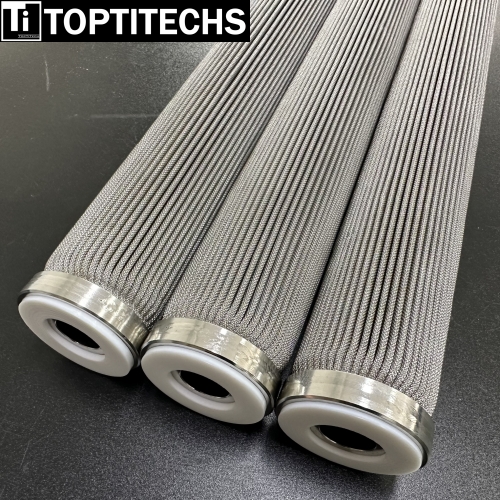

The pleated stainless steel filter utilizes 304 and 316L stainless steel fiber sintered felt and stainless steel wire mesh as the main filter media. The sealing surfaces of the filter cartridge are joined using argon arc welding, and the filter layer adopts a multi-fold pleating process, forming a complete filter cartridge that is leak-free and free from media disintegration. The stainless steel fiber sintered felt is a porous depth filtration material made by sintering stainless steel fibers at high temperatures, while the stainless steel wire mesh is woven from stainless steel wires.

The pleated stainless steel filter cartridge exhibits excellent filtration performance, providing uniform surface filtration for particle sizes ranging from 1 to 200 microns. The outer dimensions of the cartridge can be customized according to client requirements. The pleated stainless steel filter cartridge finds wide applications in industries such as environmental protection, petroleum, chemical, medical, high-temperature gas filtration, scientific research, metallurgy, food, and machinery.

Main Parameters of the Filter Cartridge:
1. Length: 480mm
2. OD: 50mm
3. ID: 18mm
4. Connection: DOE
5. Pore size: 100 or 200um

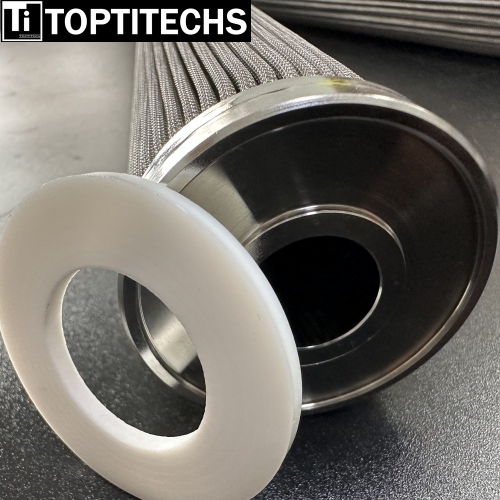

6. Gasket type: Flat

Features:
1. The stainless steel pleated filter cartridge has a high porosity, excellent air permeability, low resistance, and low-pressure differential during use.
2. After folding, the pleated stainless steel filter cartridge provides a large filtration area and high dirt-holding capacity.
3. The pleated stainless steel filter cartridge is resistant to high temperatures, corrosion, and suitable for filtering high-viscosity liquids.
4. It exhibits good regeneration performance and can be repeatedly used through chemical cleaning, high-temperature cleaning, and ultrasonic cleaning.
5. The filter cartridge is constructed entirely of stainless steel, ensuring broad chemical compatibility.

Application:
1. Automotive Industry: Used in engine oil filtration to maintain the cleanliness of lubricants and extend the lifespan of engines.
2. Manufacturing and Machinery: Employed in hydraulic systems to remove contaminants and ensure the smooth operation of machinery.
3. Oil and Gas Industry: Utilized in various stages of oil processing, from refining to transportation, to achieve optimal oil purity and quality.
4. Food Processing: Applied in edible oil filtration to meet stringent sanitary standards and prevent product contamination.
5. Power Generation: Used in turbines and other equipment to maintain the cleanliness of lubricating oils and enhance overall system efficiency.
