450 ton truss type suspension bridge launching gantry made in China
| Price: | US$ 300000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | T/T+L/C |
| Port of Export: | Qingdao, Tianjing and Shanghai Port, China |
Product Details
| Model No.: | LG | Brand Name: | Huada |
|---|
| Certification: | ISO |
|---|---|
| Specification: |
Feature:Gantry Crane Condition:New Application:for bridge erection Rated Loading Capacity: 450 ton Rated Lifting Moment: 4500 Kn Max. Lifting Load:450 ton Max. Lifting Height: 60 m Span: 30 m to 50 m Place of Origin: Henan, China (Mainland) Warranty:18 months After-sales Service Provided:Engineers available to service machinery overseas Wind alram system:Yes Safety device:Included Voltage lower protection:Yes Working duty: A3 applied angle:45¬ adaptive cross slope:2.50% Maximum longitudinal slope:≤7% Maximum Transverse slope:≤5% Erection method:span by span |
Packaging & Delivery
| Packaging: | main beams are packaged by plastic woven cloth for 450 ton truss type suspension bridge launching ga |
|---|---|
| Delivery/Lead Time: | 45 days after receiving deposit |
| Production Capacity: | 50 sets/year |
Product Description

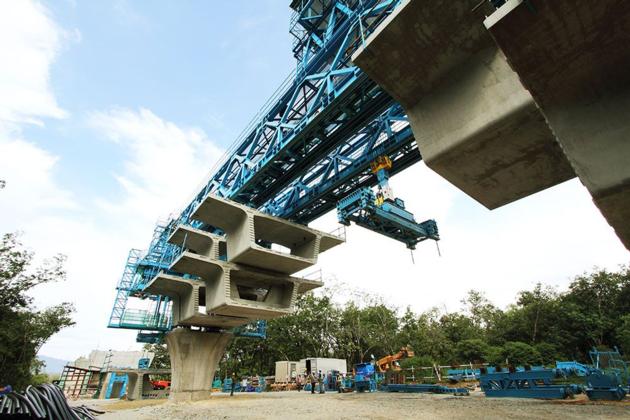

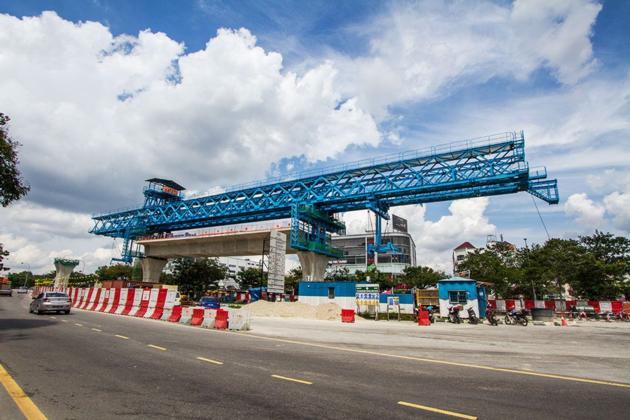

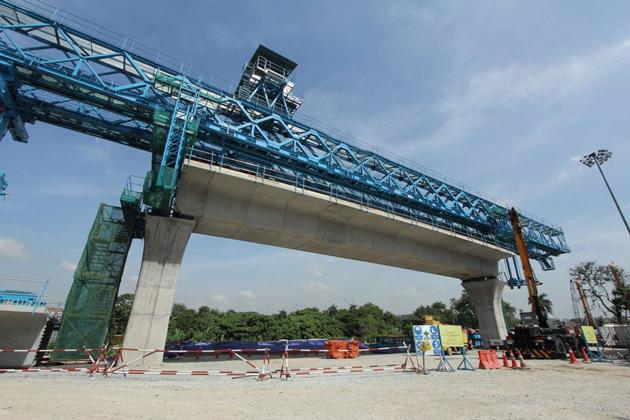

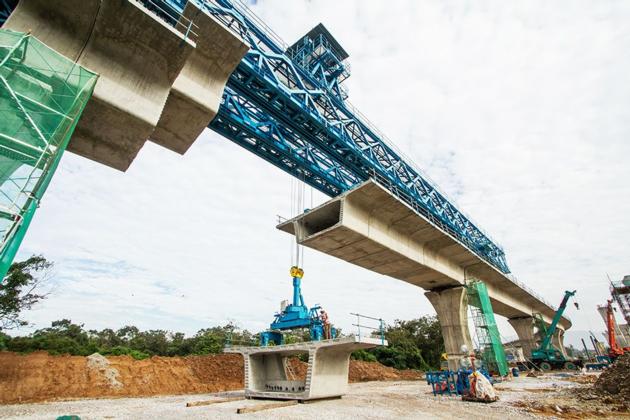

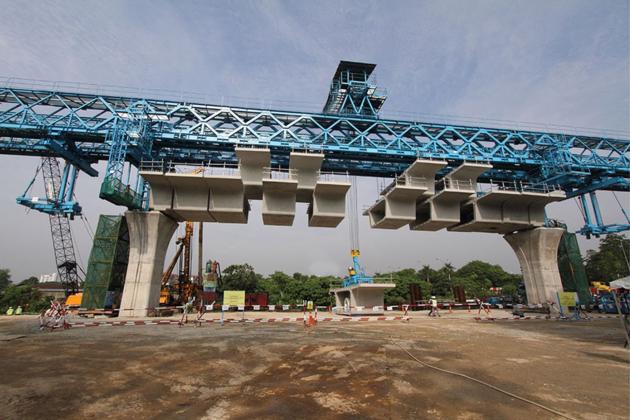

450 ton truss type suspension bridge launching gantry made in China is generally used in the erection of the Highway Bridge and Subway Bridge, using the precast segmental prestress concrete box beam (PC beam) assembly. The main feature is the high efficiency of construction and self-traveling. Generally it is composed of the main beam, leg and winch trolley, the main girder is used for bearing, the leg is to execute machine transverse moving, longitudinal moving, leveling, support, cross span, cross scale and other functions, and the winch trolley used for lifting the precast girder.
|
