45®Bends Malleable Iron Pipe Fittings

45®Bends Malleable Iron Pipe Fittings

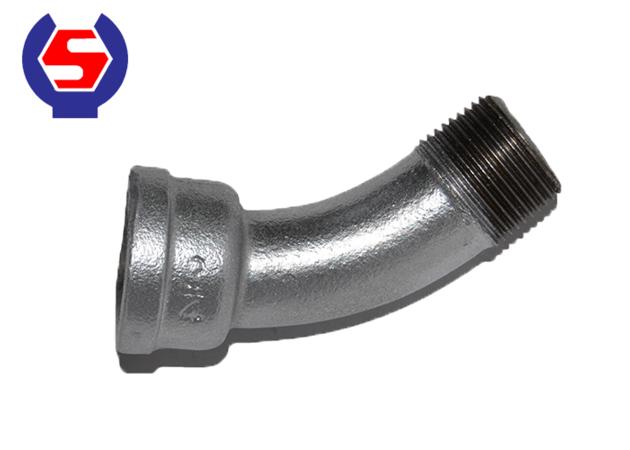

Malleable Iron Pipe FittingsFIG NO. 40# Bend 45®Male and Female
Material Black heart malleable iron
Surface Treatment a. Black (as cast)
b. Galvanized (hot dip zinc coating)
c. Epoxy painting (250-300 Microns)
DIN Standard(According to EN10242) Exported to many European countries
Materials: DIN1692
Dimensions:DIN2950,EN10242,ISO49
Threads: DIN2999
American Standard Export to North and South American countries
Materials: ANSI/ASME A197-79
Dimensions:ANSI/ASME B16.3-85
Threads: ANSI/ASME B1.20.1
British Standard Export to Middle East countries
Dimensions: BS EN 10242, BS 143&1256
Threads: ISO 7/1
ABNT 6943 Standard Export to Brazil
Chemical property (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65),
(P% <0.1), (S% <0.2%)
Mechanical Properties Tensile Strength: ≥ 33kg/mm°
Elongation Rate: ≥ 8%
Hardness: ≤ HB150
Hydrostatic Test Test Pressure: 25kg/cm°,100% test before shipment
Working Pressure: 16kg/cm°
Type Banded without ribs,Beaded with ribs,Beaded without ribs
Series Heavy, standard, medium, light
Certificate BSI, ANAB, ISO9001,FM,UL
Applications Suitable for Pipe lines connect of steam, air, gas, oil and so on
Buyer's drawings or designs are available
Package 1.Cartons without pallets
2. Cartons with pallets
3. Double woven bags Or as buyer's requirements
Delivery detail According to the quantities and specifications of each order
According to the quantities and specifications of each order
We are Malleable Iron Pipe Fittings Manufacturer.
