4000# vitrified bond diamond grinding wheels [email protected]

Applications of vitrified diamond wheels for PCD and PCBN tools :
PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc

Feature
1:Name:vitrified bond diamond grinding wheels
2:Type Code: 1A1, 3A1, 11A2, 14A1,1 6A1,6A2, 12A2, 12V2, 6A2T, 11V2, 9A1, 1A1R,
3:Material: Diamond, CBN
4:Size: D. 25-500mm; T. 5-40mm; H. 10-127mm.
5:Line speed: 35~80 (M/S)
6:Grit: 80#~5000# (D251-D1)
7:Application Industry: Jewelry, Automobile, Aerospace, Oil drilling, Coal mining, Metal processing
8:Certification: ISO 9001:2008
9:Diamond grit: #100, #150, #200, #300, #400, or upon your request
10:Type: straight wheel, bowl-shaped wheel, cup-shaped wheel, dish- shaped wheel
tapered one side or two sides and so on

Product Feature introduction
1.very sharp grinding
2.high grinding efficiency
3.long work-life
4.less heat and jam generate in grinding
5.easy to dress


Advantages of vitrified diamond wheels for PCD and PCBN tools :
1.The porous structure of the abrasive improved diamond exposure and Can Prevent Vertical Streaks On Workpiece And Improve Surface Quality
2.Accurately control geometric tolerances to make a good abrasive layer
3. Good Self-Sharpening, High Grinding Efficiency,High Wear Resistance And Less Abrasive Grain Consumption
4.High Precision Workpiece. PCD Tools Can Reach High Efficiency , Good Surface Finish And Edge No Chipping
5. Vitrified Bond Wheels Offer Tool Life Greater Than 150 Times That Of A Resin Bond Wheel And Can Be Easily Trued And Dressed On The Machine

Product description of vitrified bond diamond grinding wheels
1.Vitrified bond diamond grinding wheel possess pretty high abrasive resistance, especially in polishing hard and brittle workpiece.
2.Vitrified bond diamond grinding wheel has many advantages like small grinding force, low operating temperature, high grinding precision, excellent workpiece's surface grinding, etc.
3. Vitrified bond diamond grinding wheel recognized as a high performance grinding wheel with the higher speed, higher efficiency, higher precision, lower abrading cost and lower pollution.
4.Vitrified bond diamond grinding wheel is widely used in wafer, PDC, PDC, diamond cutter, CBN, cemented carbide, new engineering structural ceramic, diamond, jewel, crystal, rare earth materials and another hard-brittle materials' machining operation.

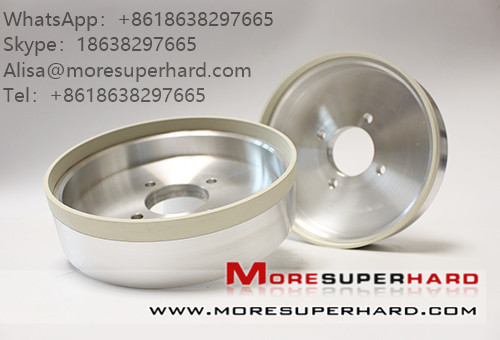

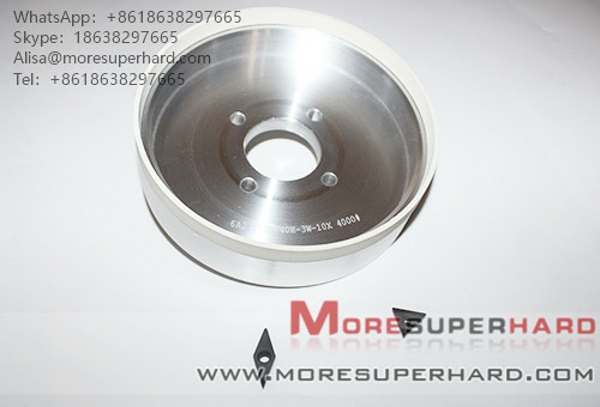

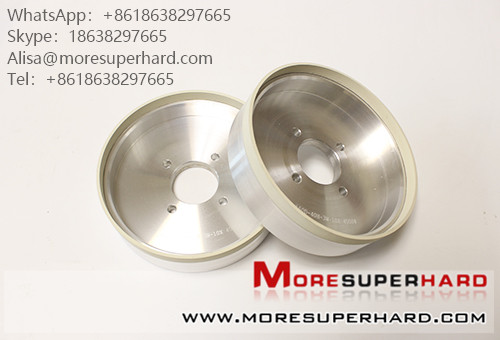

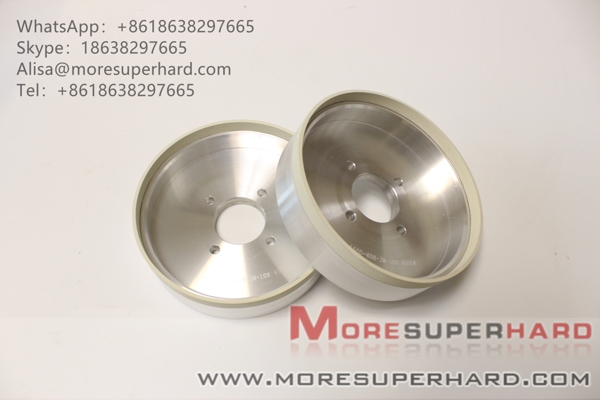

product show
Shape code diameter high aperture high Ring width
（mm） Abrasive thickness
1A1 80 10 32 8,10 5—30
150 10 32 10 5—30
155 10 32 10 5—30
160 10 32 10,12 5—30
170 10 32 10，12,14 5—30
175 10 32 10 5—30
220 10 32 20 5—30
14A1 170 10 32 10,12,14 5
175 10 32 10,15 5
6A2 100 40 20,32,40 5,10,15 10
125 40 32,40 5,10,15 10
150 40 32,40 5,10,15 10
11A2，12A2 100 40 20,32,40, 5,10 3—10
125 40 32,40 3,5,10 3—10
150 40 32,40 3,5,10 3—10


Why choose our grinding wheel
Our product’s advantages:
1.High grinding efficiency
2.Wonderful edge quality
3.Long service life
4.High polishing efficiency
5.Large Exports
6.Considerable after-sell service
7.Amazing performance
8.Various types and sizes available
9.Direct Factory Manufacturer
10.Backing/substrate material: Aluminum
11.Abrasive layer: diamond
12.Bond: vitrified
13.Excellent cutting edges
14.Reduced cycle times
15.Custom Engineered


If you have any questions, please contact us
