32216 Tapered Roller Bearing Silver 80*140*35.25mm Chrome Steel GCR15 SUNBEARING
| Price: | US$ 13.09 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T L/C |
| Port of Export: | Dalian |
Product Details
| Model No.: | 32216 | Brand Name: | SUNBEARING |
|---|
| Certification: | ISO9001:2008 |
|---|---|
| Specification: | 80*140*35.25mm |
Packaging & Delivery
| Packaging: | According to customer requirements |
|---|---|
| Delivery/Lead Time: | 2-4 week |
| Production Capacity: | 2000 |
Product Description
Product Description

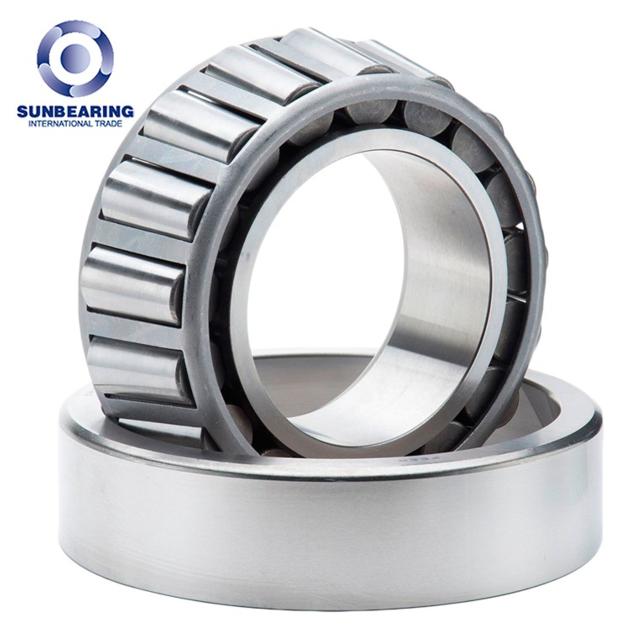

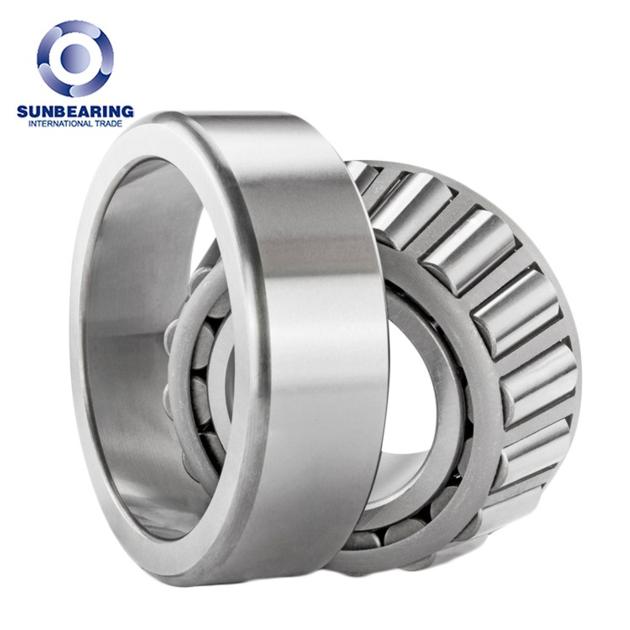

32216 tapered roller bearing
Tapered Roller Bearing 32216
Specification
Design Units
Metric
Structure
Roller Bearing
Weights
2.17kgs
Cage Material
Steel cage
Material
Chrome Steel GCR15
Ball Type
Carbon chromium steel
Seals Type
Metal Seals
Certificate
ISO9001:2008
Advantage
Be available with either a flat seat surface on the housing washer
Number of Row
Single
Dimensions
d-Bore Diameter
80mm
D-Outer Diameter
140mm
Precision Rating
P5 P6 P4 P2 P0
Clearance
C2 C3 C4 C5 C0
H-Total Width
35.25mm
Basic Load Ratings
Cr Dynamic Load Rating
198000N
C0r Static Load Rating
263000N
Separable design of tapered roller bearing.
Simple mounting of taper roller bearing
Axial loads in one direction
No radial load
1.free sample bearing
2.ISO Standard
3.Accept small order
4.In stock
The single direction thrust ball bearings consist of a shaft washer, a housing washer, and a ball and cage thrust assembly.
2. The bearings are separable so the the mounting is simple as the washer and the ball and cage assembly can be mounted separately.
3. The bearings can accommodate axial loads in one direction and thus locate a shaft axially in one direction. They must not be subjected to any radial loads.
4. The bearings are available with either a flat seat surface on the housing washer or a sphered seat surface.
|
