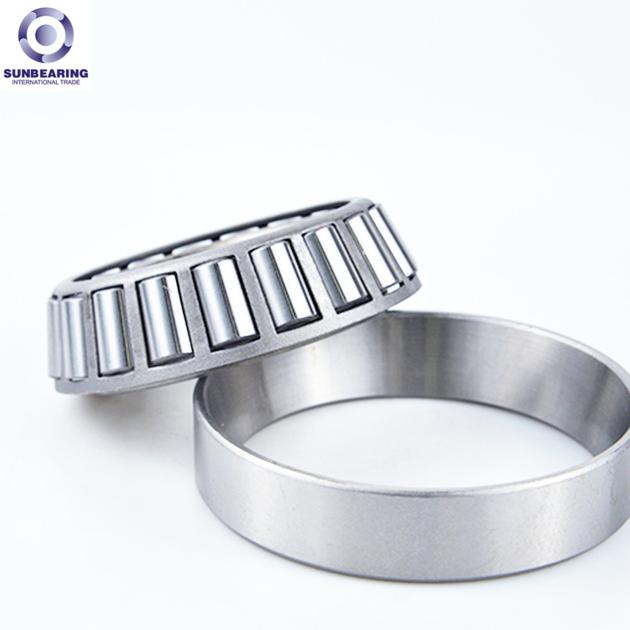

32211 Tapered Roller Bearing 55*100*27mm SUNBEARING

Product Description

32211 taper roller bearing

Tapered Roller Bearing 32211

Specification

Design Units

Metric

Structure

Roller Bearing

Weights

0.863kgs

Cage Material

Steel cage

Material

Chrome Steel GCR15

Ball Type

Carbon chromium steel

Seals Type

Metal Seals

Certificate

ISO9001:2008

Advantage

Allows the bearing to carry both axial and radial loads, but mainly axial loads

Number of Row

Single

Dimensions

d-Bore Diameter

55mm

D-Outer Diameter

100mm

Precision Rating

P5 P6 P4 P2 P0

Clearance



C2 C3 C4 C5 C0

H-Total Width

27mm

Basic Load Ratings

Cr Dynamic Load Rating

108000N

C0r Static Load Rating

133000N

taper roller bearing

Tapered roller bearing:

Tapered roller bearings are separate bearings, bearing the inner and outer ring with a tapered raceway. This type of bearing roller according to the number of columns is divided into single row, double row and four rows of tapered roller bearings and other different structural types. Single row tapered roller bearings can withstand radial load and axial load in a single direction. When the bearing to bear radial load, will produce an axial component, so when the need for another bearing the opposite direction of the axial force to balance.

Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the

bearing to handle a combination of radial and thrust loads. The steeper the cup angle, the greater the ability of bearing to handle thrust loads.
