315mm 630mm HDPE Pipe Welding Machine/PP PPR Pipe Welder/Plastic Pipe Welder/Plastic Welding Machine
| Price: | US$ 3400 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | LC,TT |
| Port of Export: | Shanghai |
Product Details
| Model No.: | WP630A | Brand Name: | Welping |
|---|
| Certification: | CE |
|---|---|
| Specification: |
Model WP630A
Suitable materials PE, PP, PVDF Range 315-355-400-450-500-560-630mm Power supply 380V, 3PH Frequency 50 Hz Total power 10.1 KW Heating plate 7.5 KW Planing tool 1.5KW Hydraulic station 1.5KW Max.Pressure 8MPa Hydraulic oil L-HM46 Max.Temperature of heating plate 270ºC Temp.Deviation in Surface ¯7ºC Total Weight 560kg Net weight 475kg Basic Frame plywood 1540*930*990mm Hydraulic Unit plywood 680*530*730mm planing tool & heating plate plywood 750*620*1260mm |
Packaging & Delivery
| Packaging: | Polywood case |
|---|---|
| Delivery/Lead Time: | 15 days |
| Production Capacity: |
Product Description

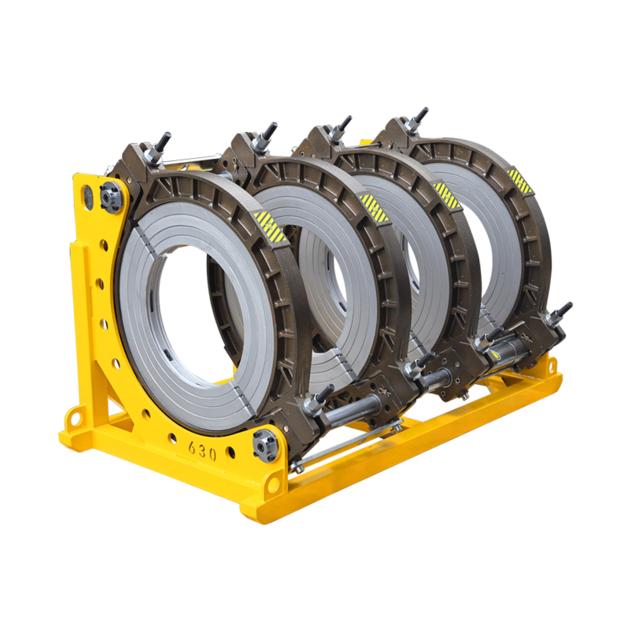

Basic frame
Featured by
· Italy DNP quick coupler
· Chromated hydraulic cylinder made
of 1045(ASTM)/S45(JIS)/C45(DIN) steel
· Chromated integral shaft made
of1045(ASTM)/S45C(JIS)/C45(DIN) steel
· Base made of Q235 steel with spraying treatment
· Cast aluminum clamps, sandblasting & Spraying
treatment

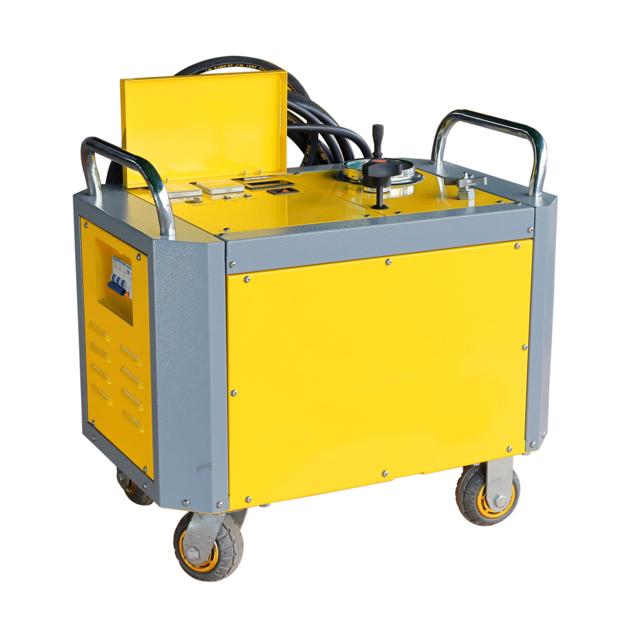

Hydraulic station
Featured by
Fully enclosed housing with vents can prevent dust and dirt from entering
380V asynchronous motor
CHNT electricity leadkage protection switch
Data logger(optional)
500V/100A electric meter
Ø100mm presure meter
Relief valve, regulating valve, maintaining valve

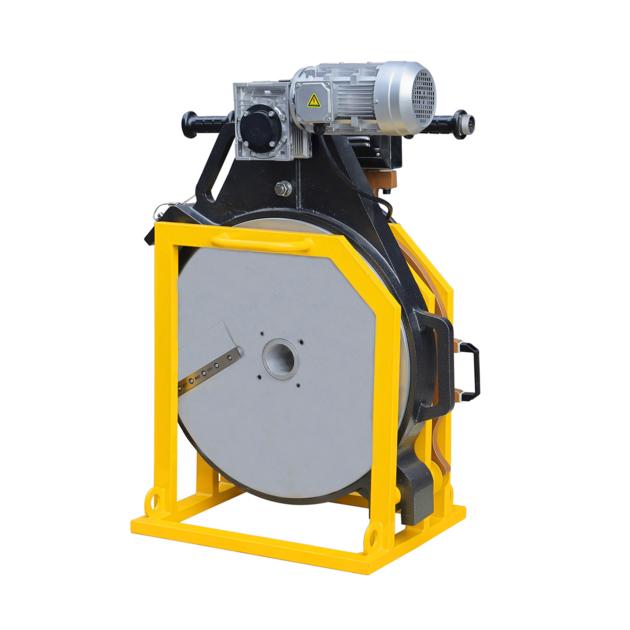

Planing tool
Featured by

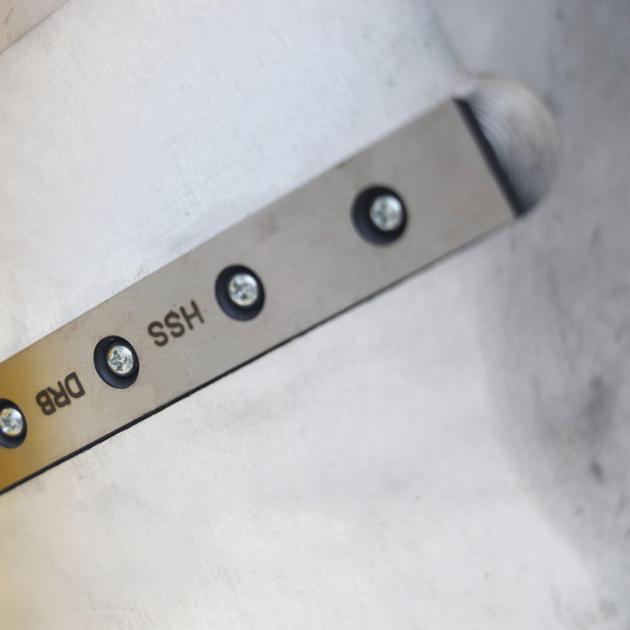

HSS blade with double edge
Die-cast aluminum trimmer plate, durable and anti-corrosion
Full gears transmission structure, more efficient, more steady
Gear drive, stable structure, high efficiency
Aluminum alloy frame of motor with good heat dissipation performance
Asynchronous motor with pure copper wire

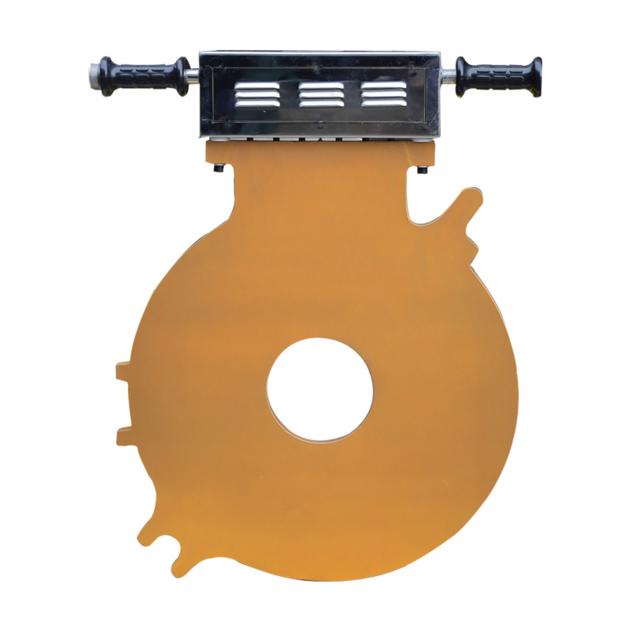

Heating plate
Featured by
Bakelite handle with high insulating property and thermal insulation
Thermocouple temperature sensor
Heating element
Teflon Coating imported from Daikin in Japan
Aviation plug
|
