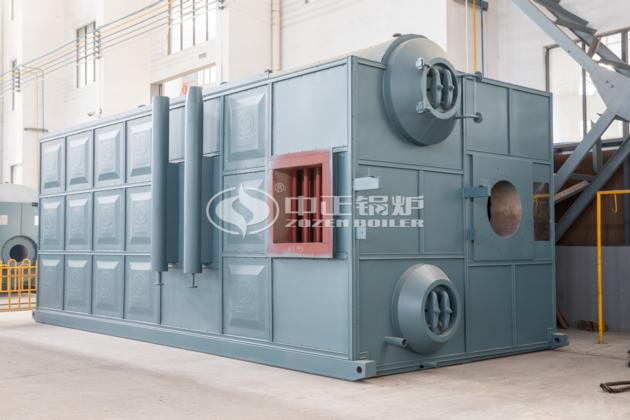

30t/h superheated steam boiler water tube boiler
| Price: | US$ 5000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | SHANGHAI PORT |
Product Details
| Model No.: | Brand Name: | zozen |
|---|
| Certification: | |
|---|---|
| Specification: |
Manufacturing Plant, Food & Beverage Factory, Energy & Mining
Condition: New Type: Natural Circulation Usage: Industrial Structure: Water Tube Pressure: Low Pressure Style: Horizontal Fuel: Oil/Gas Place of Origin: Jiangsu, China Brand Name: zozen Output: Steam Dimension(L*W*H): Depends Weight: 5~50ton Certification: ASME/CE/ISO Warranty: 1 Year After-sales Service Provided: Engineers available to service machinery overseas Design fuel: Natural gas,biogas,coke gas,light oil,methanol,biodiesel etc. Working pressure: 1.25-2.5MPa Product thermal capacity: 10-50 t/h Outlet temperature: 194-225 ®C Operation: Easy Advantages: Top 1 A-Class Boiler Efficiency: 95%-99% Application: Heat suppling, chemical,brewery, rubber, hospital Type of boiler: gas-fired(oil-fired) steam boiler Manufacturer: 30 Years History |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
SZS series boiler is designed with longitudinal double drums and " D " type chamber structure. Furnace is placed on the right and convection tube bank is on the left, super heater is arranged at convection tube bank. The body is fixed on the basement by middle and both end flexible supports and make the boiler expand horizontally sideways. Around the furnace is membrane water cooling tube wall. Furnace and tube bank are totally separated by the membrane water tube cooling wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, convection tube bank area and then from left front part enters spiral fine coil economizer and condenser, and finally is discharged to atmosphere through chimney.
|
