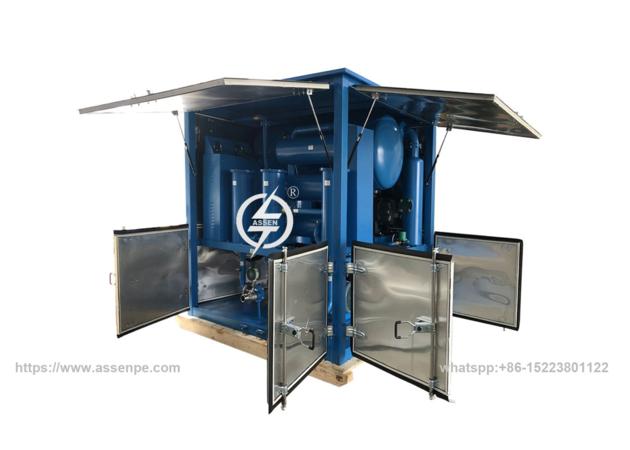

3000L/h type Transformer Oil Dehydration Plant,Vacuum Transformer Oil Purifier Machine
| Price: | US$ 6000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT LC |
| Port of Export: | CHONGQING |
Product Details
| Model No.: | ZYD-50 | Brand Name: | ASSEN |
|---|
| Certification: | CE ISO |
|---|---|
| Specification: |
Optional Model:
● Optional P.L.C. intelligent panel control, touch screen operation and dynamic display according to user needs. ● Optional Online PPM Meter, Optional flow meter with accumulator function. ● Optional frequency converter, you can adjust the flow according to your needs ● Optional external port design for transformer vacuum pumping ● The whole structure can be made into mobile, fixed, fully enclosed, concealed, canvas, open type. ● Optional three stage high vacuum system for higher vacuum degree work. |
Packaging & Delivery
| Packaging: | STANDARD EXPORT PLYWOOD CASE |
|---|---|
| Delivery/Lead Time: | 12 DAYS |
| Production Capacity: | 100 SETS PER MONTH |
Product Description
Application:
ASSEN ZYD-50(3000L/h) type vacuum transformer oil filtration is widely used in electric power, petroleum, chemical industry and railway etc. It can purify oil in fieldwork with additional installation of a trailer, a damping spring steel plate, a brake and cornering lamp, this guarantee the safety and reliability when moving in fieldwork. It is also used for hot oil circulation drying and oil purification when various large transformer equipment installation and maintenance. Purifying insulating oil in 110KV-330KV transformer, also suitable for high grade new oil, imported oil deep purifying.
The oil’s performance after treatment:
Moisture PPM ≤3
Gas content % ≤0.01
Impurity size μ ≤1 (no free carbon)
Breakdown voltage kV ≥75
IFT dynes/cm ≥40
Acid value mgKOH/g ≤0.03
Dielectric loss factors tgδ(90®C) ≤0.001
Technical Features:
1. A capability of reducing moisture content from 50ppm to 3ppm moisture and 12% gas content to less than 0.1% by volume. 98% of particulate matter will also be removed.
2. Double-Stage vacuum system,strong power of vacuum evacuating,ultimate vacuum value no more than 5Pa
3. Duplex-Stereo film evaporation technology,combined with unique and advanced dewatering,degassing components,can rapidly and effectively separate water, gas,from oil.
4. An advanced fully automatic temperature controlling system,liquid-level controlling system,defoaming controlling system,pressure protecting system and excellent configuration can ensure operation of the equipment with high performance
5. Online work,allowing separated operation of manual operators from machine with lamps indicating the condition for operation.
6. It is humanization design with low noise,deep purification and long time free maintenance to save cost from the running process.
Please ask ASSEN for a latest quote
|
