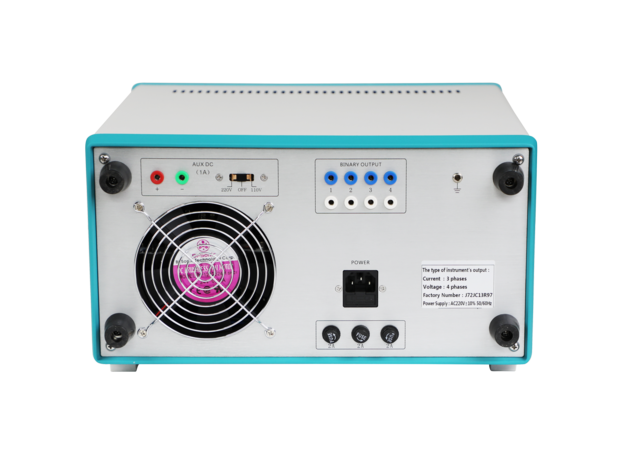

3 phase protection relay tester
| Price: | US$ 2000 / Kit |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, PAYPAL |
| Port of Export: | SHENZHEN |
Product Details
| Model No.: | VAHME-702 | Brand Name: | VA/ ODM |
|---|
| Certification: | |
|---|---|
| Specification: | The VAE-702 is classic 3-phase protection relay tester. It is the most cost-effective protection relay tester all over the world, and has reliable performance and low maintenance costs typical advantage. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 7 DAYS |
| Production Capacity: | 100SET/WEEK |
Product Description
Current Generator
Setting range
3-phase AC(L-N)
3x0…40A
1-phase AC(LL-LN)
1x0…120A
DC(L-N)
3x…¯10A
3-phase AC(L-N)
3x420VA at 40A
Power
1-phase AC(LL-LN)
1x900VA at 120A
DC(L-N)
3x120VA at 10A
Accuracy
AC: ≤0.2%
DC: ≤0.5%
Voltage Generator
Setting range
4-phase AC(L-N)
4x0…120V
1-phase AC(L-L)
1x0…240V
DC(L-N)
3x…¯160V
Power
4-phase AC(L-N)
4x80VA at 120V
1-phase AC(L-L)
1x100VA at 240V
DC(L-N)
3x70VA at 160V
Accuracy
AC: ≤0.2%
DC: ≤0.5%
Auxiliary DC Supply
Voltage range
110V/220V(max.1.5A)
Power
max.165VA/330VA
Digital Inputs
Number
8
Input characteristics
idle contact or potential-free contact
Threshold characteristics
“0”:0~6V; “1”:11V~250V
Max. measuring time
0.1ms~9999s
Time accuracy
0.1ms
Digital Outputs
Number
4
Type
idle contact
Break capacity
220VAC/0.5A, 220VDC/0.2A
General Generators
Frequency
range: 0~1000Hz(PC mode), 20~300Hz(local mode)
accuracy:<10mHz(0~450Hz),<20mHz(450~1000Hz)
resolution: 0.01Hz
Phase
range: 0~360®
accuracy: 0.2®
resolution: 0.1®
Harmonic
superposition orders: 1~20(PC mode), 1~6(local mode)
distortion: ≤0.5%
Power Supply
Nominal input voltage
customized(AC230V/120V¯10%,1-phase)
Nominal frequency
50/60 Hz
Rated current
10A at 230V / 12A at 115V
Connection
standard AC socket (IEC 60320)
Environmental Conditions
Operation temperature
0 ... +50 ®C (+32 ... +122 ®F)
Storage temperature
-25 ... +70 ®C (-13 ... +158 ®F)
Humidity range
relative humidity 5 ... 95 %, non-condensing
Vibration
IEC 60068-2-6(20m/s2 at 10 ... 150 Hz)
Miscellaneous
Weight
19.7kg(43.43 lb)
Dimensions (W x H x D, without handle)
400×300×180mm(15.75x11.81x7.09 in)
Connection port
for PC connection
|
