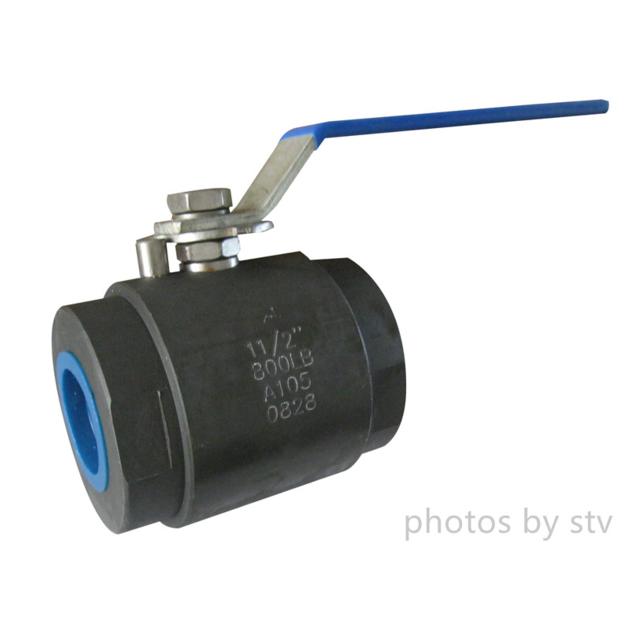

3-Pc Ball Valve Floating Full Port, Class 800# , A105 Body , 316 / Ptfe Trim , Npt
| Price: | US$ 10 / Piece |
|---|---|
| Minimum Order: | 1PC |
| Payment Terms: | T/T |
| Port of Export: | FOB SHANGHAI |
Product Details
| Model No.: | Q41 | Brand Name: | STV |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: | 3-Pc Ball Valve Floating Full Port Manufacturer Stv Provides 3-Pc Ball Valve Floating Full Port, Class 800# , A105 Body , 316 / Ptfe Trim , Npt |
Packaging & Delivery
| Packaging: | WOODCASE |
|---|---|
| Delivery/Lead Time: | 30DAYS |
| Production Capacity: | 1000PCS |
Product Description
Product Detail
Design standard: ASME B16.34.
Body material: A105.
Nominal diameter: 2".
Pressure: CL800.
End connection: NPT.
Face to face: Manufactures Standard.
Working temperature: -29℃~+425℃.
Mode of operation: Lever.
Test and inspection: API 598.
Product Range
Rody material: A105,F304,F316,F11,F22, Alloy Steel.
Normal diameter: 1/2"~4" (DN15~DN100).
End connection: NPT,BW, SW,Flanged.
Pressure range: 150 lbs~2500 lbs (PN16~PN420).
Operation: Lever, Gearbox, Electric, Pneumatic, Electro Hydraulic Actutor, Gas Over Oil Actuator.
Working temperature: -46℃~+260℃
Reliable sealing performance and small torque.
Full bore and reduced bore.
Low emission packing.
Fire safe, anti-static and anti-blowout stem design.
Optional locking device.
Optional ISO 5211 top flange.
