2T/H Wns diesel steam industrial boiler manufacturing company
| Price: | US$ 5000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: |
Product Details
| Model No.: | WNS2-1.0-Y(Q) | Brand Name: | zozen |
|---|
| Certification: | |
|---|---|
| Specification: |
Condition:
New, New Applicable Industries: Hotels, Food & Beverage Factory, Energy & Mining, Advertising Company Type: Natural Circulation Usage: Industrial Structure: Fire Tube Pressure: Low Pressure Style: Horizontal Fuel: Gas/oil-fired Place of Origin: Jiangsu, China Brand Name: ZOZEN Output: Steam Dimension(L*W*H): Maximum 8300mm*3400mm*4020mm Weight: 4T~50T Certification: GB, ASME, CE Warranty: 2 Years After-sales Service Provided: Engineers available to service machinery overseas Name: WNS gas oil-fired steam boiler Product thermal capacity: 1-20 t/h Working pressure: 0.7-2.5 Mpa Available fuel: Nature gas, coke oven gas, biogas, methanol, etc Application field: Heat suppling, chemical, food,pharmacy, building materials Warranty period: 1~3 Years Advantages: Top 1 A-Class Boiler Operation: Automatic Control Other Boilers: Coal Fired Boiler Gas Fired Boiler Manufacturer: 30 Years History |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description

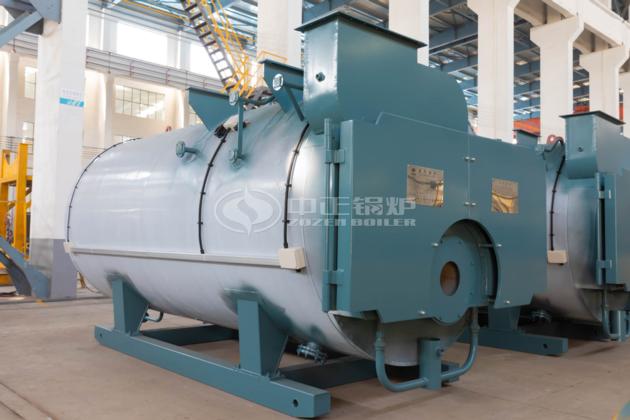

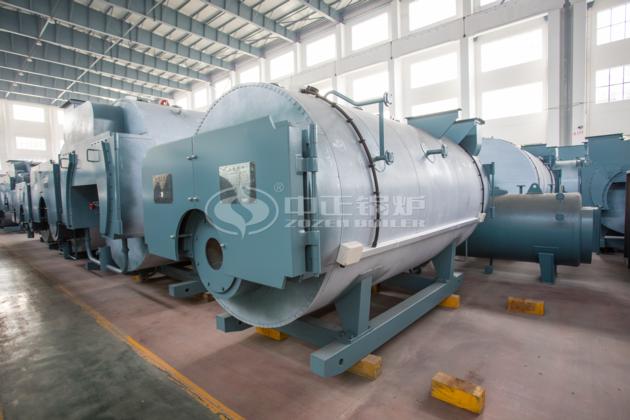

WNS Low Pressure Fully Automatic Horizontal Oil gas Burning 2 tph boiler
WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Product thermal capacity:1-20 t/h
Working pressure:0.7-2 Mpa
Available fuel:Nature gas, coke oven gas, biogas, methanol, liquid propane gas, diesel, heavy oil, light oil, crude oil, etc.
Available industries:Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.
|
SUPPLIER PROFILE
|
|||
|---|---|---|---|
| Company: | zozen boiler | ||
| City/State | JIANGSU, | Country: |
China
|
| Business Type: | Export - Manufacturer / Trading Company | Established: | NA |
| Member Since: | 2019 | Contact Person | xu Waffa |
SUPPLIER PROFILE
City/State/Country -
JIANGSU,
China
Business Type -
Export - Manufacturer / Trading Company
Established -
NA
Member Since -
2019
Contact Person -
xu Waffa
