25t low power action structural railway bogie
| Price: | US$ 10000 / Set |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | L/C ,T/T |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Brand Name: | CRRC taiyuan |
|---|
| Certification: | IRIS ,ISO9001 |
|---|---|
| Specification: |
Main technical parameters
Deadweight/t 4.86 Shaft weight/t 25 Construction speed/km/h 120 Braking times 6.48 Center plate load/t 45.6 Fixed shaft distance/mm 1800 Center distance between two side supports/mm 1520 Free height of center plate surface/mm 706 Statistic flexibility of unloaded/loaded equivalent weight car spring/mm 23/37.7 Speed limit passing through minimum curve radius/m 100 |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | 2 months |
| Production Capacity: | 8000/year |
Product Description
25t low power action structural freight bogie

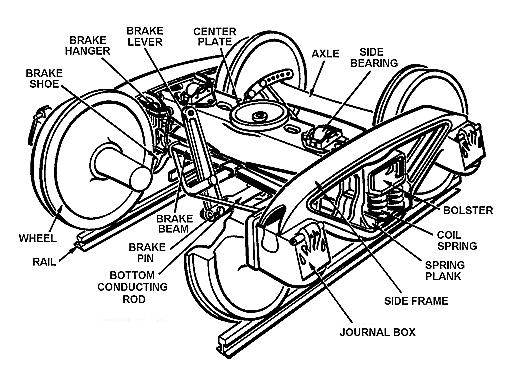

The bogie is a H frame consisting of two side beams and a center plate beams, which are welded together, a box type cross section is adopted. Wheel-pair axle box spring is supported in suspension through the axle box spring; the internal and the external springs with rigidity of class II are adopted with different height, double inclined wedge type axial box friction reduction is adopted. Suspension sliding type two-sides braking is used for the basic braking equipment, brake head links with the brake beam through pin shaft. The high friction brake block is used.
|
