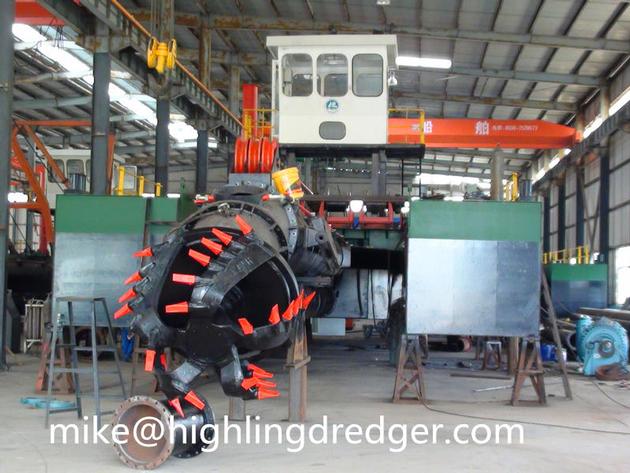

2500m« Cutter Suction Dredger

1. Dredger product introduction:
(1) Dredger is self-propelled or non-self-propelled
(2) Hull is box-like structure, is made up of several boxes, simple, rapid assembly and dismantling
(3) Dredger equipment include sideslip device, cutter up and down device, location spud device, deck crane, also be equipped with anchor boom and trolley devices to increase capacity
(4) Widely used in sand-excavating, river dredging, desalting, reclamation for channels and land, port construction
(5) Main engine is an independent entertainment form, one main pump engine, one auxiliary hydraulic engine
(6) Dredge pump is driven by the main diesel engine through the reducing gear box
(7) Alternator, which driven by the auxiliary diesel engine supplies electricity for power and lighting of the whole dredger
Generator sets supplies electricity for lighting and emergency use when it doesn’t working
(8)Dredger Hydraulic oil pump is driven by the auxiliary diesel engine
(9) Shifting winches, cutter ladder and lifting winch are driven by the hydraulic motor
(10) Cutter head is driven by hydraulic motor, cutter bearing has lubrication seal-in units
(11) Dredger is moved by alternate swing of the spuds
Spuds are lifted by the hydraulic cylinder


Quality certification:
Our company have been through ISO 9001 quality system and CE certification
R and D and technical team:
Highling dredgers achieve first-class level in the world with Holland  design and technology
Our company has research and development center, quality department and after-sales department
Number of staff is up to 800, including 50 senior engineers on dredger building and researching, 60 designers on machinery construction, 18 engineers on quality inspection, as  well as 30 after-sales service engineers
Products are exported to more than 50 countries such as Bangladesh, Pakistan, India, Brazil, Argentina, Benin, Egypt, Poland, Nigeria, Ukraine, Indonesia, Korea
By virtue of advanced technology, stable and reliable quality, our company has gained great honors from the domestic and foreign enterprises
Based on honest, mutual benefit and development, we warmly welcome you visit our company and cooperate with each other
HL400 dredger
Dredger LOA  28.0m
Hull size 19.0x7.5x2.0m
Main pontoon 13.8x3.5x2.0m
Side pontoon 19.0x2.0x2.0m
Structure                                   can be dismantle and re-assemble easily ,box structure, lower delivery cost
Main engine brand and power      Cummins/522kW
Auxiliary engine brand& power Cummins/224kW
Harbor generator                     30GF/Cummins
Dredging pump                          Warman technology
Discharge pipe inner 4 400mm
Head                                        45m
Max dredging depth                  13m
Water flow                                 2500m«/H
Solid sand capacity                  500m«/H
Discharge distance                   1500m
Cutter head 1450mm
Cutter  power                           7 70kW
Draught                                    1.4m
Displacement                            180T
Hydraulic control system           PLC Siemens
Wire rope pulling force (lifting winch )*quantity      80KN*1
Wire rope pulling force (traversing winch )*quantity 80KN*2
Operation room                    adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights
Total weight                        110T
Total power                               746kW
Total fuel oil consumption       112L/H
