2500L full automatic brewhouse with 5000L fermetation tank for micro brewery

2500L full automatic brewhouse with 5000L fermetation tank for micro brewery



Jinan Alston Equipment Co.,Ltd a professional beer breqing equipment supplier in China.

Since the company was founded in 2016, we have provided beer brewing equipment and successfully exported to more than 60 countries and regions including Germany, Russia, Belgium, the United States, Canada, Australia, Kazakhstan, Uzbekistan, Georgia, South Korea, Argentina, Brazil, Singapore and other regions and countries. Because of our excellent product quality and after-sales service, it has been recognized and praised by customers!

Innovative, Efficient, Energy-saving, and Economical, we are a global solution partner for craft beer!



1 . Product info beer equipment

The 2500L full automatic brewery including automatic brewhouse, fermentation system, cooling system, Computer control system, CIP systems and other components, The vessels for various systems adopt Height to diameter ratio optimization design, all systems use sus304 stainless steel and the argon protection side welding molding technology, thus the inner wall of the vessel welded corners are clean enough to provide quality assurance for the production of high quality puree biological beer. At the same time, the stability of the semi-automatic control system makes the entire equipments high intelligence, it achieves unattended in the true sense,thus it becomes automatic intelligent bio-fermentation equipment to provide a strong guarantee for the production of the craft beer.









2 . Technical specification



Outside surface SS304 or 316,THK:2mm
Inner surface S.S.304 or 316,THK:2mm-4mm
Top shape Seal head or conical head
Heating method Natural gas/electricity/LPG/direct fire
Insulation layer Protected by polyurethane ,THK:80 mm
Polishing precision ≤0.4³´µm
Manhole Side upward
Spral ball In the center of the inside tank
Agitator Raking system conneted into a top reducer
Chimney On the top of the tank
Processing Argon-arc welding






Product Description
beer equipment for micro brewery

Applications area: Micro Brewery and Large Beverage company and etc.

Product features:

1. Appearance clean and generous: The tank is polished with 0.4-0.6um, and the equipment is bright;

2. Good insulation effect: The equipment is divided into two kinds of heat insulation and cold insulation, which is the best to ensure the temperature of the beer brewing process;

3. Visualization operation: the equipment is controlled by PLC, and the fermentation tank is equipped with a glass tube level gauge, which is convenient for visual operation;

4. Low energy consumption: environmental protection, energy saving, low power consumption, saving energy consumption of about 20%;



1 malt milling system
malt miller machine

grist case

2 Mash system Mash tank/lauter tank
Boiling tank/whirlpool tank
Hot water tank
Mash/wort/hot water pump Motors
Wort oxygenation device
Operation platform
Plate heat exchanger
3 Fermenting system Beer fermenters
Bright beer tanks
Yeast adding tank
Accessories, such as sample valve, pressure gauge, safety valve and so on
4 Cooling system Ice water tank
Refrigerating unit
Ice water pump
5 CIP cleaning system disinfection tank & alkali tank &cleaning pump etc.
6 Controller Control system, we have PLC automatic and semi-automatic, the elements brand include LG, Siemens and so on.
7 Kegging system kegging system ( keg washer and keg filler machine), the control system brand is Siemens.

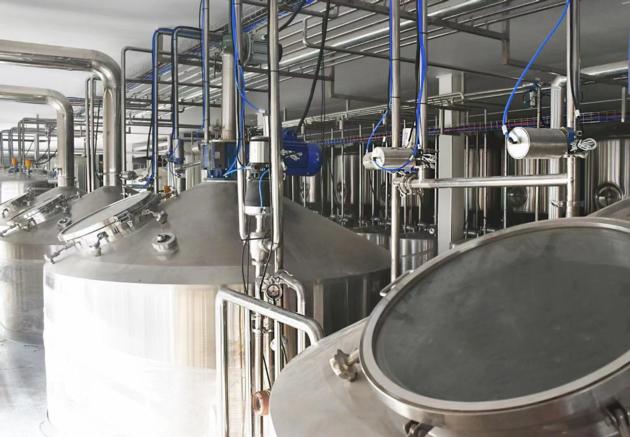

Mash system:

Full automatic Brewhouse is mainly composed by 4vessel mash tun,lauter tank, boiling , whirlpool tank, with hot water tank and cold water tank, also according to your different requirement.

The main body of mash tun, mash system all using international standards, high-quality 304 stainless steel. The manufacture is using of modern automatic plasma & laser cutting and the protection of pure argon gas welding

and other technology. The full polished technology for the inside of the tanks which expose to materials such as wheat mash; external matte polished to ensure customers with high quality and low price, beautiful mash system.

Also including Pneumatic valve, electromagnetic flowmeter, Radar level gauge, Empty level switch, Turbidity online detector, then will be one complete system.



For automatic control system on brewhouse,-Brewhouse into a fully automated system

1. The mash tun control system is controlled by a pneumatic valve (using an industrial computer for control)

1) The temperature of the mash tun is automatically controlled;

2) The turbidity of the wort in the filter tank is detected by a turbidity meter;

3) The steam heating of the boiling tank is controlled by a membrane steam regulating valve, the valve opening can be adjusted to control the amount of steam;

4) The mash tun and lauter tank are equipped with level switches, and the boiling pot and hot water tank bottoms are equipped with electronic level gauges.



Full set of mash system or brewhouse



Fermentation tank

For this is Automatic level, then you can brew 4-6 batches per day. So normally the fermenter is 10T per set.

1. The fermentation tank is main part of beer equipment, the tanks adopted 304 stainless steel.

2.Adopted the international standard of fermentation technology, diverse methods to control the temperature. The standard is≤0.8um ≤0.6um ≤0.2um.

3.Temperature automatic control: The cooling jacket can achieve all countries’ standard, supply Miller, arch, corrugated plate and so on. Meet all kinds of demand of cooling technology of coolant and pressure.

3000L fermenter and BBT

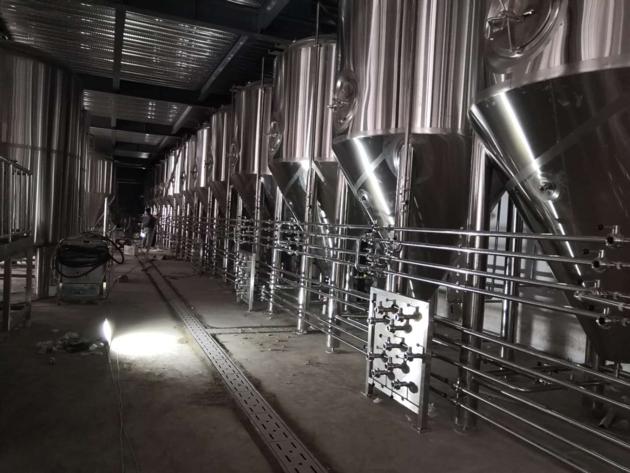

Fermenter pipeline:

-Stainless steel material pipeline, one tube plate for each two tanks, CIP back and forth pipeline, wort feed, fermentation liquid outlet line, yeast recovery line, exhaust line, back pressure line.

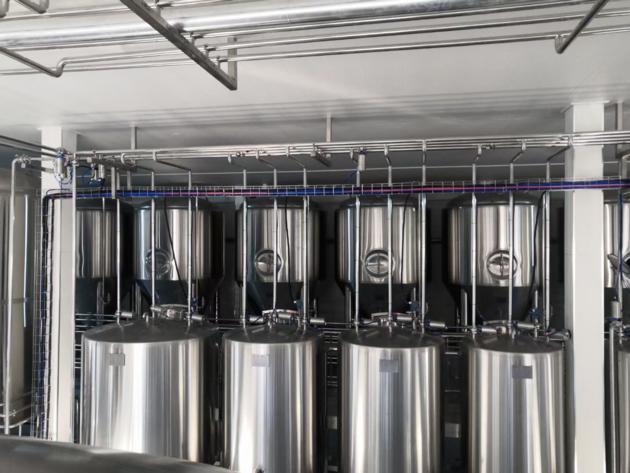

CIP unit system

CIP unit is composed by Acid tank, alkali tank, disinfection tank, hot water tank, pump and pipeline. Also controled by control computer.

Fixed stainless steel pipelines from the CIP station to fermenters’ zone.

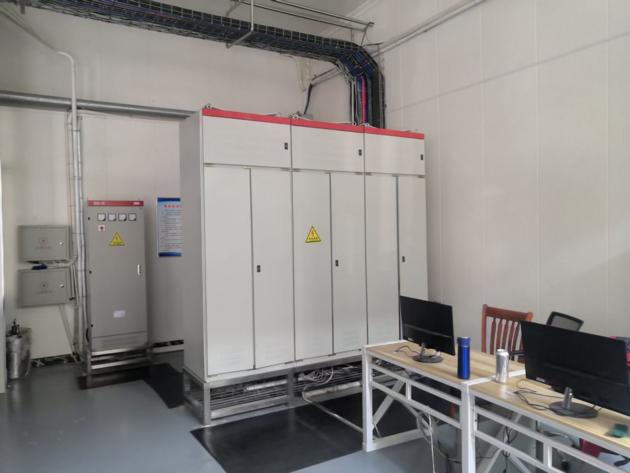

Control system:



-Brewhouse and fermentation control cabinet with plastic spraying

-Use industrial computer to control, Siemens S7-300 system.



-Brewhouse into a fully automated system

1. The mash tun control system is controlled by a pneumatic valve (using an industrial computer for control)

1) The temperature of the mash tun is automatically controlled;

2) The turbidity of the wort in the filter tank is detected by a turbidity meter;

3) The steam heating of the boiling tank is controlled by a membrane steam regulating valve, the valve opening can be adjusted to control the amount of steam;

4) The mash tun and lauter tank are equipped with level switches, and the boiling pot and hot water tank bottoms are equipped with electronic level gauges.



2.Fermentation tank control

-The temperature is controlled by solenoid valve, and the temperature is controlled automatically;

-The pressure is controlled by a mechanical pressure regulating valve.

-The fermentation temperature and mash system are all controlled in an industrial computer

-Two display control

-Including signal lines, bridges, tables and chairs, etc.





Production Process
Production strength: with 12,000 square meters of production area, own shearing machine, bending machine, large multi-polishing machine, pressing machine, plasma cutting machines and other processing equipment more than 30 pcs; has two high-standard production lines, all kinds of and senior technicians more than 60 people; with advanced beer, wine processing technology.



Certifications
Internationally recognized: Brewing technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.





Packaging & Shipping
1.Ocean shipment,railway shipment,express delivery.

2.No matter flat pack to save shipping cost,or fill with your merchandise into allassembled displays to ship together,all is up to you.

3.And we have our own department to arange the shipments.we ship worldwide dierctly by see,railway or express.we will provide all documents you need to import.
