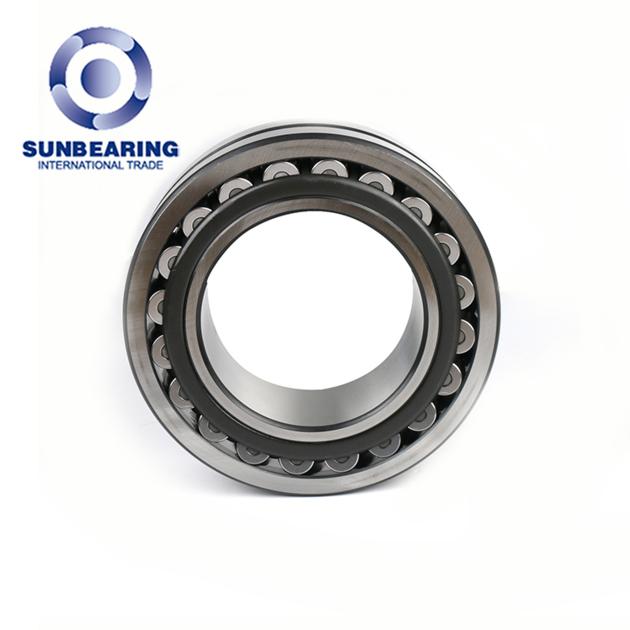

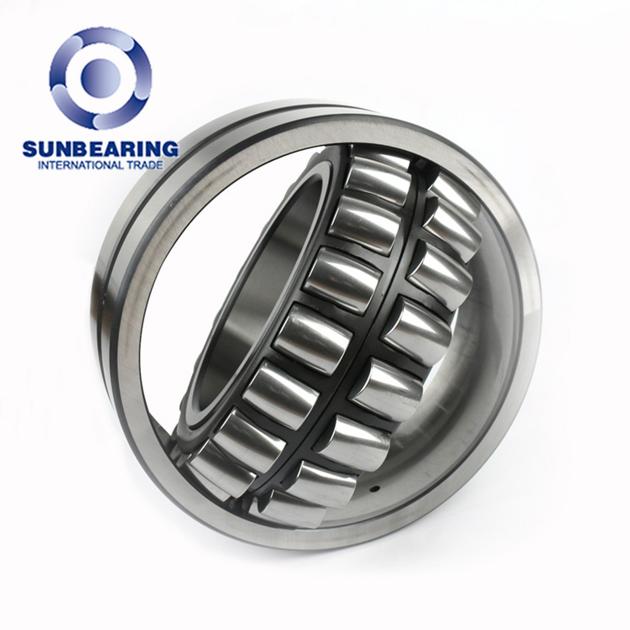

23144 CC Spherical Roller Bearing 220*370*120mm Double Row

23144 CC Spherical Roller Bearing 220*370*120mm Double Row
Product Description
Bore diameter: 220 mm
Maximum rpm: 1700 RPM
Outside diameter: 370 mm
Operating temperature range: Maximum of +390 ®F
Overall width: 120 mm
Cage material: Steel
Bore type: Straight
Bearing material: Steel
Outer ring type: Not Split
Cage type: Inner Ring Guided
Internal clearance: C0
Precision rating: Not Rated
Closure type: Open
Weight: 51.5KG
Lubrication hole type: Lubrication Groove & Hole
Outer ring width: 120 mm
Dynamic load capacity: 1800 kN
Fillet radius: 3 mm
Static load capacity: 2750 kN
Series: 231
23144 Spherical Roller Bearing Short Description
Parallel Bore, CC (J) or CJ - Flangeless inner ring, guide ring centered on the inner ring, two stamped steel cages, Open - No seal, J - Stamped steel cage inner ring centered, W33 - Annular groove and three holes in the outer ring, Normal clearance (CN), Normal class tolerance (PN), 220, 370, 120.

23144 Spherical Roller  Bearing Features
Inherently self-aligning and very robust
Two rows of rollers make the bearings able to carry heavy loads
Invented by SKF and refined over the years, the present SKF range of spherical roller bearings includes a wide range of sizes of several ISO dimension series
Oil grooves and holes in the outer ring
23144 Spherical Roller Bearing Application
Papermaking machinery, various types of industrial reducers, reduction gears, railway vehicle axles, rolling mill gearbox bearing housings, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, vertical self-aligning bearings.
