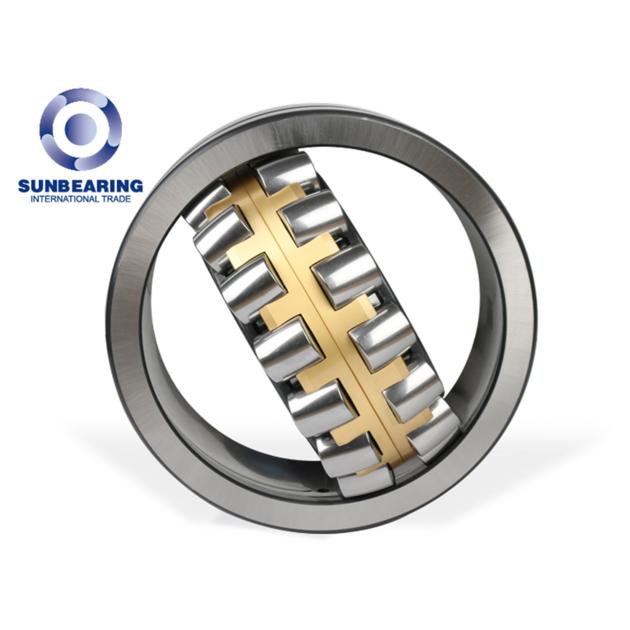

23030 C3 Spherical Roller Bearing 150*225*56mm

23030 C3 Spherical Roller Bearing 150*225*56mm
Product Description
LM501349 Tapered Roller Bearing Description
Specification Dimensions
Design Units Metric d-Bore Diameter 150mm
Structure Roller Bearing D-Outer Diameter 225mm
Weights 7.44Kg Precision Rating P5 P6 P4 P2 P0
Cage Material Brass Cage Clearance  C3
Material Chrome Steel GCR15
Ball Type GCR15 Steel H-Total Width 56mm
Seals Type Open Basic Load Ratings
Certificate ISO9001:2008 Cr Dynamic Load Rating 400KN
Feature The spherical roller bearing 23030-C3 offers excellent alignment error compensation C0r Static Load Rating 795KN
Number of Rows Double Specifications/Environment Standard
23030 Spherical Roller Bearing Short Description
With the swiveling inner ring, the spherical roller bearing 23030-CA-W33 offers excellent alignment error compensation. It has two rings with barrel-shaped rollers as rolling elements and can absorb very high radial and also axial forces.

23030 Spherical Roller  Bearing Features
Spherical roller bearing with two rows of rollers
Pivoting inner ring, misalignments and shaft deflections can be compensated
Suitable fûr very high radial and relatively high axial loads in both directions
Light series with small dimensions compared to the inner diameter
Cage material: brass. Special strength and durability under extreme conditions such as shock loads and vibrations, high acceleration forces and lack of lubrication
Seal: open (without seal); for higher speeds than with sealed spherical roller bearings and easy relubrication
The good fixed bearing property, but can also be used as a floating bearing, each in both directions
Manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)
23030 Spherical Roller Bearing Application
Papermaking machinery, reduction gears, railway vehicle axles, rolling mill gearbox bearing housings, rolling mill rollers, crushers, vibrating screens, printing machinery, woodworking machinery, various types of industrial reducers, vertical self-aligning bearings.
